W803

Fine pitch threaded plungers - without knob

STEEL INDEXING PLUNGER WITH LOCK NUT

Ver. 22V01-0124

STEEL INDEXING PLUNGER WITH LOCK NUT

W803 - STEEL INDEXING PLUNGER WITH LOCK NUT

(3) Stainless steel spring (Aisi 301).
W803:

Smooth.

  • Technical features

    Materials:
    (3) Stainless steel spring (Aisi 301).
    W803:
    (2) Threaded high-resistance steel hexagon ring nut.
    (1) Hardened high resistance steel plunger pin.
    (4) Threaded steel lock nut (UNI 5589).
    W803CIN:
    (2) Threaded stainless steel hexagon ring nut (Aisi 303).
    (1) Stainless steel plunger pin (Aisi 303).
    (4) Threaded stainless steel lock nut (Aisi 304) (UNI 5589).

    Surface finish:
    Smooth.

    Colour:
    W803: Black-oxide treated.
    W803CIN: Natural.

    ATTENTION:
    > We recommend an H7 tolerance for the plunger stem bore.
    > The nut is supplied assembled.

    Special Requests:
    On request the nut can be supplied disassembled.

    Note:
    This plunger version can be coupled with any hanwheel with threaded insert, to be ordered separately (see additional pictures).

Alternative products
Version W803 - black-oxide treated steel

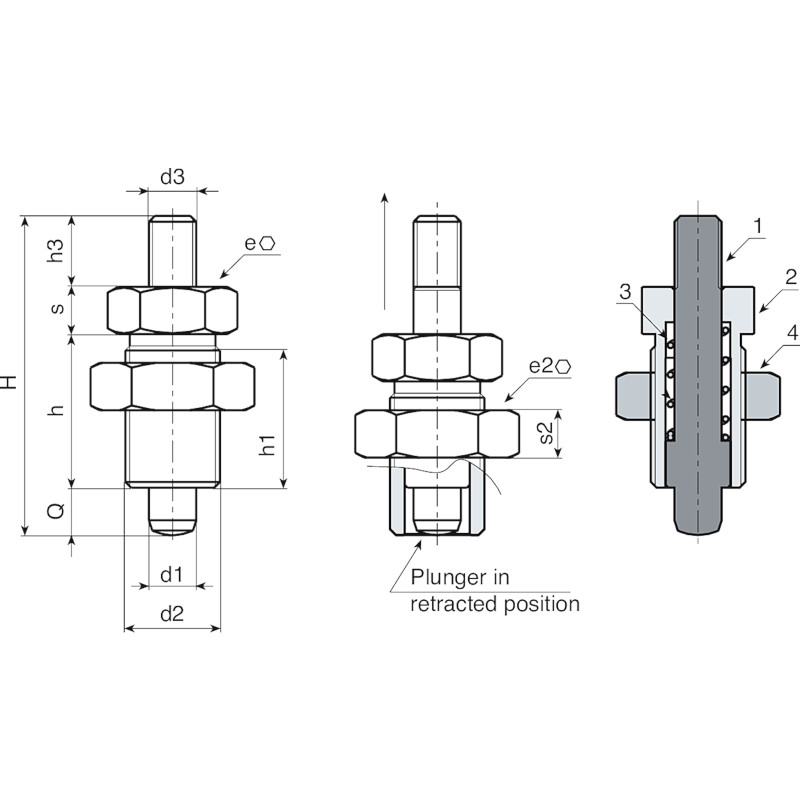

Codice Art. H h h1 d2 d3 h3 e s e2 s2 d1 -0,02 -0,04 Q 3D
W803.0006 W803.R05 33 17 15 M10x1 M04 6 12 5 17 6 5 5 20
W803010.0002 W803010.R05M05 33 17 15 M10x1 M05 6 12 5 17 6 5 5 20
W803.0007 W803.R06 42 20 18 M12x1,5 M05 10 14 6 19 7 6 6 32
W803012.0002 W803012.R06M06 42 20 18 M12x1,5 M06 10 14 6 19 7 6 6 32
W803.0008 W803.R08 54 26 23 M16x1,5 M08 12 19 8 24 8 8 8 62
W803.0009 W803.R10 65 33 30 M20x1,5 M10 12 22 10 30 9 10 10 134
W803020.0001 W803020.R10M08 65 33 30 M20x1,5 M08 12 22 10 30 9 10 10 134
Version W803 CIN - stainless steel (Aisi 303)
Codice Art. H h h1 d2 d3 h3 e s e2 s2 d1 -0,02 -0,04 Q 3D
W803.0001 W803.I05CIN 33 17 15 M10x1 M04 6 12 5 17 6 5 5 20
W803010.0001 W803010.I05M05CIN 33 17 15 M10x1 M05 6 12 5 17 6 5 5 20
W803.0002 W803.I06CIN 42 20 18 M12x1,5 M05 10 14 6 19 7 6 6 32
W803012.0001 W803012.I06M06CIN 42 20 18 M12x1,5 M06 10 14 6 19 7 6 6 32
W803.0003 W803.I08CIN 54 26 23 M16x1,5 M08 12 19 8 24 8 8 8 62
W803.0004 W803.I10CIN 65 33 30 M20x1,5 M10 12 22 10 30 9 10 10 134
W803020.0002 W803020.I10M08CIN 65 33 30 M20x1,5 M08 12 22 10 30 9 10 10 134
