Fine pitch threaded plungers - with knob

KNOB WITH LOCKING STEEL INDEXING PLUNGER - WITH LOCK NUT

Ver. 22V01-0124

KNOB WITH LOCKING STEEL INDEXING PLUNGER - WITH LOCK NUT

W811 - KNOB WITH LOCKING STEEL INDEXING PLUNGER - WITH LOCK NUT

(3) Stainless steel spring (Aisi 301).
(4) Reinforced polyamide lobed knob. Cannot be disassembled.Resistant to oils and greases.

(4) Satin.
(1-2-5) Smooth.

  • Technical features

    Materials:
    (3) Stainless steel spring (Aisi 301).
    (4) Reinforced polyamide lobed knob. Cannot be disassembled.Resistant to oils and greases.
    W811:
    (2) Threaded high-resistance steel hexagon ring nut.
    (1) Hardened high resistance steel plunger pin.
    (5) Threaded steel lock nut (UNI 5589).
    W811 CIN:
    (2) Threaded stainless steel hexagon ring nut (Aisi 303).
    (1) Stainless steel plunger pin (Aisi 303).
    (5) Threaded stainless steel lock nut (Aisi 304) (UNI 5589).

    Surface finish:
    (4) Satin.
    (1-2-5) Smooth.

    Colour:
    (4) Black (RAL 9011).
    W811:
    (1-2-5) Black-oxide treated.
    W811 CIN:
    (1-2-5) Natural.

    ATTENTION:
    > We recommend an H7 tolerance for the plunger stem bore.
    > The nut is supplied assembled.

    Special Requests:
    On request and for special quantities the knob can be supplied in the colours indicated in the table [pageTitoloTabellaColori.
    On request the nut can be supplied disassembled.

Alternative products

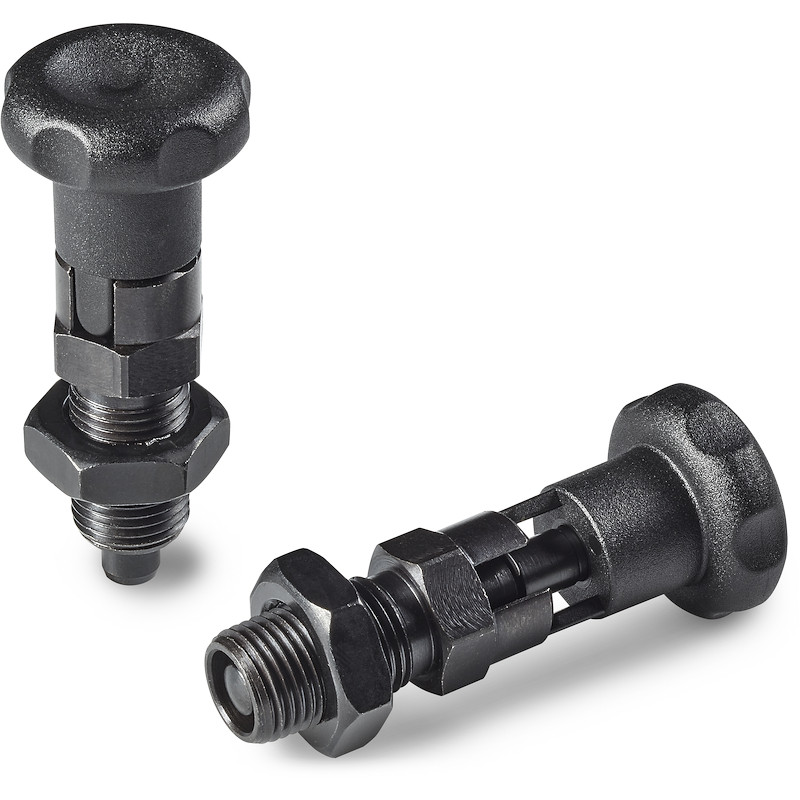

Version W811 - black-oxide treated steel

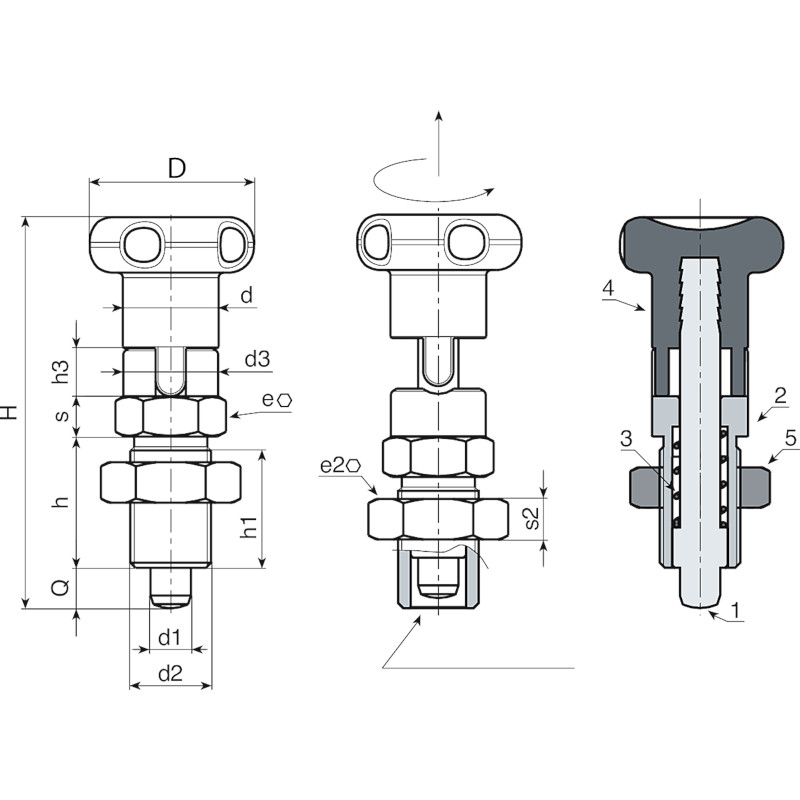

Codice Art. D H h h1 h3 d3 d2 d e s e2 s2 d1 -0,02 -0,04 Q 3D
W811.0006 W811.Q0501 22 51.5 17 15 6.5 11.8 M10x1 12 12 5 17 6 5 5 29
W811.0007 W811.Q0601 27 61.5 20 18 7.5 13.8 M12x1,5 14 14 6 19 7 6 6 47
W811.0008 W811.Q0801 33 77.5 26 23 9.5 18.8 M16x1,5 19 19 8 24 8 8 8 105
W811.0009 W811.Q1001 33 90.5 33 30 11.5 18.8 M20x1,5 19 22 10 30 9 10 10 172

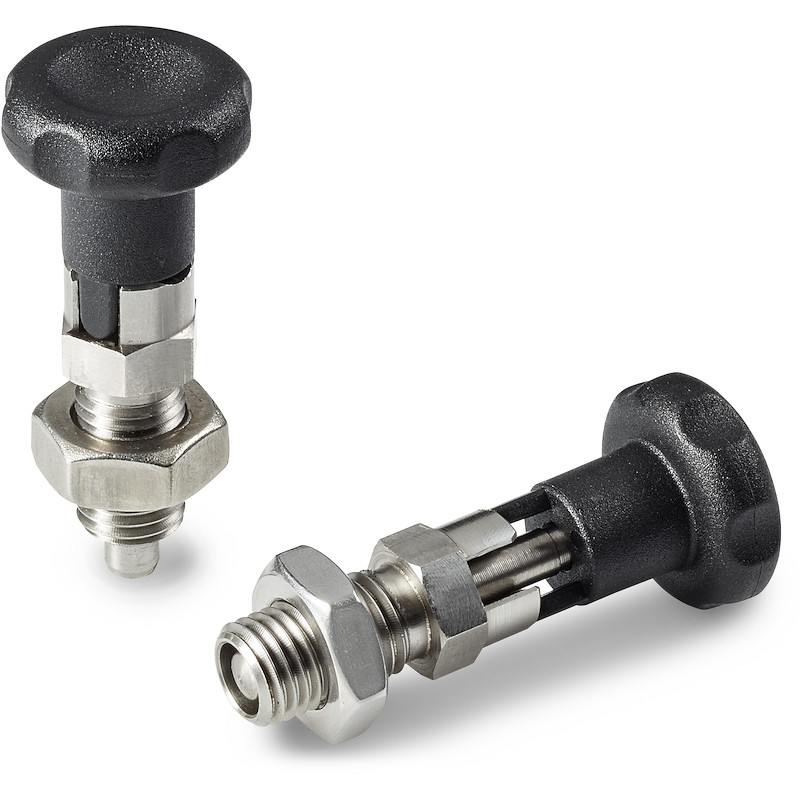

Version W811 CIN - stainless steel (Aisi 303)
Codice Art. D H h h1 h3 d3 d2 d e s e2 s2 d1 -0,02 -0,04 Q 3D
W811.0001 W811.I0501CIN 22 51.5 17 15 6.5 11.8 M10x1 12 12 5 17 6 5 5 29
W811.0002 W811.I0601CIN 27 61.5 20 18 7.5 13.8 M12x1,5 14 14 6 19 7 6 6 47
W811.0003 W811.I0801CIN 33 77.5 26 23 9.5 18.8 M16x1,5 19 19 8 24 8 8 8 105
W811.0004 W811.I1001CIN 33 90.5 33 30 11.5 18.8 M20x1,5 19 22 10 30 9 10 10 172
