Fine pitch threaded plungers - with knob

KNOB WITH STEEL INDEXING PLUNGER AND LONG NOSE PIN

Ver. 22V01-0124

KNOB WITH STEEL INDEXING PLUNGER AND LONG NOSE PIN

W912 - KNOB WITH STEEL INDEXING PLUNGER AND LONG NOSE PIN

(3) Stainless steel spring (Aisi 301).
(4) Reinforced polyamide lobed knob. Cannot be disassembled.Resistant to oils and greases.

(4) Satin.
(1-2-3) Smooth.

  • Technical features

    Materials:
    (3) Stainless steel spring (Aisi 301).
    (4) Reinforced polyamide lobed knob. Cannot be disassembled.Resistant to oils and greases.
    W912:
    (2) Threaded high-resistance steel hexagon ring nut.
    (1) Hardened high resistance steel plunger pin.
    W912CIN:
    (2) Threaded stainless steel hexagon ring nut (Aisi 303).
    (1) Stainless steel plunger pin (Aisi 303).

    Surface finish:
    (4) Satin.
    (1-2-3) Smooth.

    Colour:
    (4) Black (RAL 9011).
    W912:
    (1-2) Black-oxide treated.
    W912CIN:
    (1-2) Natural.

    ATTENTION:
    > We recommend an H7 tolerance for the plunger stem bore.

    Special Requests:
    On request and for special quantities the knob can be supplied in the colours indicated in the table [pageTitoloTabellaColori.

Alternative products
Version W912 - black-oxide treated steel

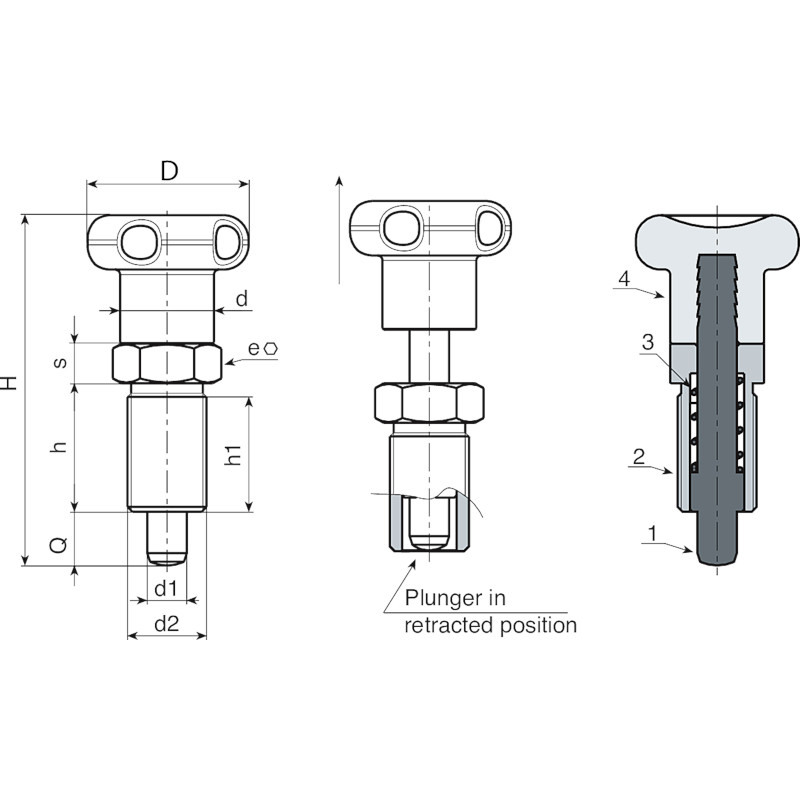

Codice Art. D H h h1 d2 d e s d1 -0,02 -0,04 Q 3D
W912010.0001 W912010.Q05X0801 22 48 17 15 M10x1 12 12 5 5 8 19
W912012.0002 W912012.Q06X0901 27 57 20 18 M12x1,5 14 14 6 6 9 31
W912016.0004 W912016.Q08X1201 33 72 26 23 M16x1,5 19 19 8 8 12 73
W912016.0006 W912016.Q10X1201 33 72 26 23 M16x1,5 19 19 8 10 12 74
W912020.0001 W912020.Q12X1501 33 84 33 30 M20x1,5 19 22 10 12 15 128
Version W912 CIN - stainless steel (Aisi 303)
Codice Art. D H h h1 d2 d e s d1 -0,02 -0,04 Q 3D
W912010.0002 W912010.I05X0801CIN 22 48 17 15 M10x1 12 12 5 5 8 19
W912012.0001 W912012.I06X0901CIN 27 57 20 18 M12x1,5 14 14 6 6 9 31
W912016.0005 W912016.I08X1201CIN 33 72 26 23 M16x1,5 19 19 8 8 12 73
W912016.0001 W912016.I10X1201CIN 33 72 26 23 M16x1,5 19 19 8 10 12 74
W912020.0002 W912020.I12X1501CIN 33 84 33 30 M20x1,5 19 22 10 12 15 128
