Fine pitch threaded plungers - Integral stainless steel

KNOB WITH FULL STAINLESS STEEL INDEXING PLUNGER

Ver. 22V01-0124

KNOB WITH FULL STAINLESS STEEL INDEXING PLUNGER

W720CIN - KNOB WITH FULL STAINLESS STEEL INDEXING PLUNGER

(1) Stainless steel plunger pin (Aisi 303).
(2) Threaded stainless steel hexagon ring nut (Aisi 303).

Satin.

  • Technical features

    Materials:
    (1) Stainless steel plunger pin (Aisi 303).
    (2) Threaded stainless steel hexagon ring nut (Aisi 303).
    (3) Stainless steel spring (Aisi 301).
    (4) Turned stainless steel lobed knob (Aisi 303).

    Surface finish:
    Satin.

    Colour:
    Natural.

    ATTENTION:
    > We recommend an H7 tolerance for the plunger stem bore.

    Special Requests:
    Upon request and for special quantities the plunger can be supplied completely disassembled.

Alternative products
Version W720CIN - without nut

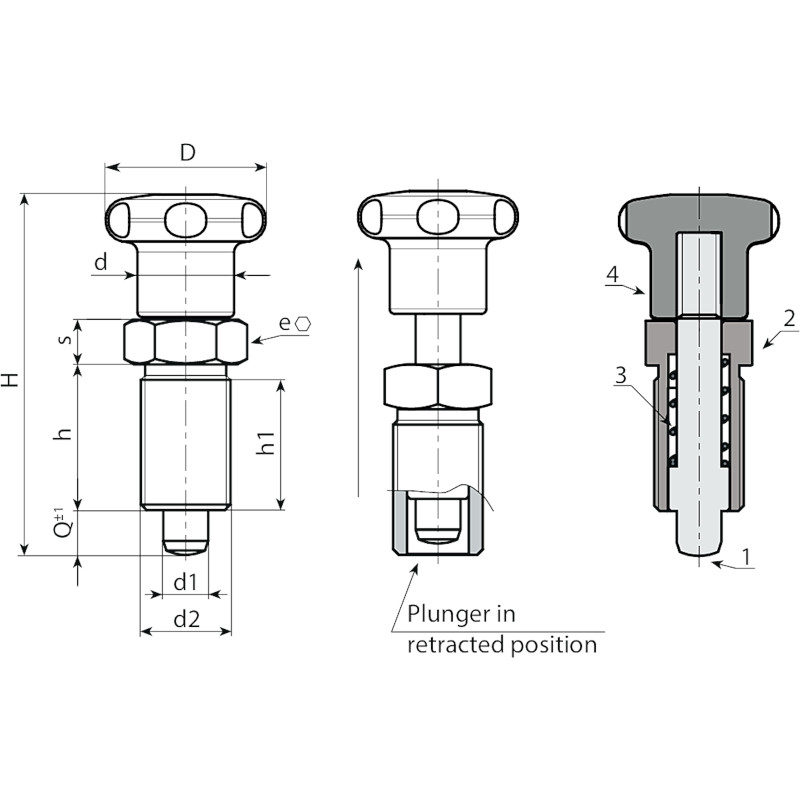

Codice Art. D H h h1 d2 d e s d1 -0,02 -0,04 Q 3D
W720.0001 W720.I0501CIN 22 45 17 15 M10x1 12 12 5 5 5 -
W720.0002 W720.I0601CIN 27 54 20 18 M12x1,5 14 14 6 6 6 -
W720.0003 W720.I0801CIN 32 67 26 23 M16x1,5 19 19 8 8 8 -
W720.0004 W720.I1001CIN 32 79 33 30 M20x1,5 20 22 10 10 10 190
