Fine pitch threaded plungers - with knob

KNOB WITH STEEL INDEXING PLUNGER, LONG NOSE PIN AND LOCK NUT

Ver. 22V01-0124

KNOB WITH STEEL INDEXING PLUNGER, LONG NOSE PIN AND LOCK NUT

W913 - KNOB WITH STEEL INDEXING PLUNGER, LONG NOSE PIN AND LOCK NUT

(3) Stainless steel spring (Aisi 301).
(4) Reinforced polyamide lobed knob. Cannot be disassembled.Resistant to oils and greases.

(4) Satin.
(1-2-5) Smooth.

  • Technical features

    Materials:
    (3) Stainless steel spring (Aisi 301).
    (4) Reinforced polyamide lobed knob. Cannot be disassembled.Resistant to oils and greases.
    W913:
    (2) Threaded high-resistance steel hexagon ring nut.
    (1) Hardened high resistance steel plunger pin.
    (5) Threaded steel lock nut (UNI 5589).
    W913CIN:
    (2) Threaded stainless steel hexagon ring nut (Aisi 303).
    (1) Stainless steel plunger pin (Aisi 303).
    (5) Threaded stainless steel lock nut (Aisi 304) (UNI 5589).

    Surface finish:
    (4) Satin.
    (1-2-5) Smooth.

    Colour:
    (4) Black (RAL 9011).
    W913:
    (1-2-5) Black-oxide treated.
    W913CIN:
    (1-2-5) Natural.

    ATTENTION:
    > We recommend an H7 tolerance for the plunger stem bore.
    > The nut is supplied assembled.

    Special Requests:
    On request and for special quantities the knob can be supplied in the colours indicated in the table [pageTitoloTabellaColori.
    On request the nut can be supplied disassembled.

Alternative products
Version W913 - black-oxide treated steel

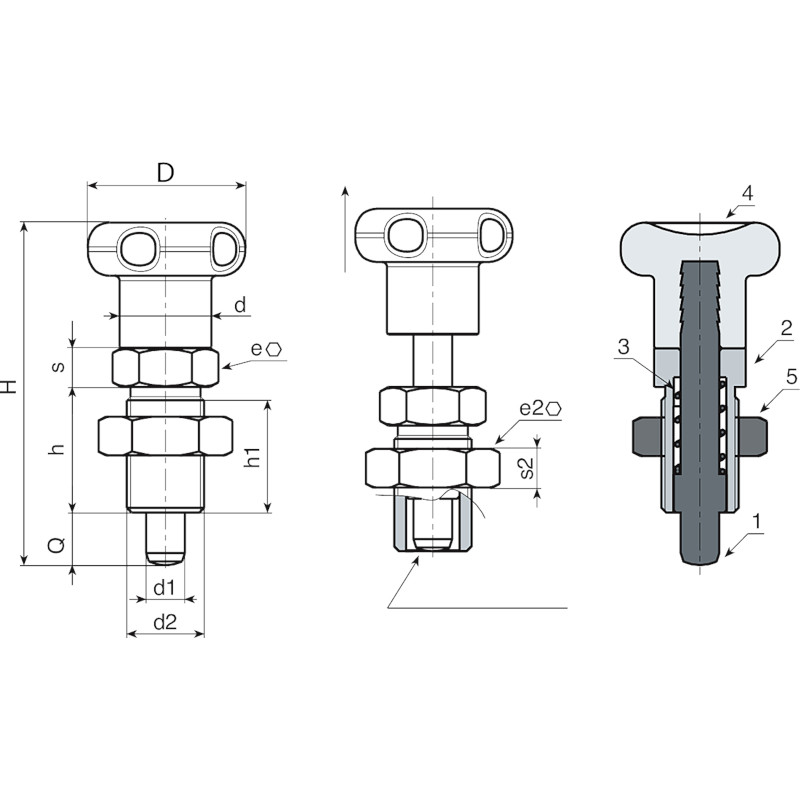

Codice Art. D H h h1 d2 d e s e2 s2 d1 -0,02 -0,04 Q 3D
W913010.0001 W913010.Q05X0801 22 48 17 15 M10x1 12 12 5 17 6 5 8 25
W913012.0001 W913012.Q06X0901 27 57 20 18 M12x1,5 14 14 6 19 7 6 9 41
W913016.0006 W913016.Q08X1201 33 72 26 23 M16x1,5 19 19 8 24 8 8 12 89
W913016.0007 W913016.Q10X1201 33 72 26 23 M16x1,5 19 19 8 24 8 10 12 89
W913020.0002 W913020.Q12X1501 33 84 33 30 M20x1,5 19 22 10 30 9 12 15 153
Codice Art. D H h h1 d2 d e s e2 s2 d1 -0,02 -0,04 Q 3D
W913010.0002 W913010.I05X0801CIN 22 48 17 15 M10x1 12 12 5 17 6 5 8 25
W913012.0002 W913012.I06X0901CIN 27 57 20 18 M12x1,5 14 14 6 19 7 6 9 41
W913016.0005 W913016.I08X1201CIN 33 72 26 23 M16x1,5 19 19 8 24 8 8 12 89
W913016.0001 W913016.I10X1201CIN 33 72 26 23 M16x1,5 19 19 8 24 8 10 12 89
W913020.0001 W913020.I12X1501CIN 33 84 33 30 M20x1,5 19 22 10 30 9 12 15 153
