W806

Smooth body pushers with alternative fixings

KNOB WITH SMOOTH WELDABLE BLACK OXIDE TREATED STEEL PLUNGER

Ver. 22V01-0124

(4) Reinforced polyamide lobed knob.
Resistant to oils and greases.

(4) Satin.
(1-2) Smooth.

  • Technical features

    Materials:
    (4) Reinforced polyamide lobed knob.
    Resistant to oils and greases.

    Surface finish:
    (4) Satin.
    (1-2) Smooth.

    Colour:
    (4) Black (RAL 9011).
    (1-2) Black-oxide treated.

    Inserts:
    (3) Galvanised steel spring.
    (2) Smooth bored body in weldable steel.
    (1) Hardened high resistance steel plunger pin.

    ATTENTION:
    > We recommend an H7 tolerance for the plunger stem bore.

    Special Requests:
    On request and for special quantities the knob can be supplied in the colours indicated in the table [pageTitoloTabellaColori.

    ATTENTION:
    To avoid problems when welding the steel body to the machinery, the plastic knob is supplied disassembled. Screw in the knob once the part has cooled down.

Alternative products

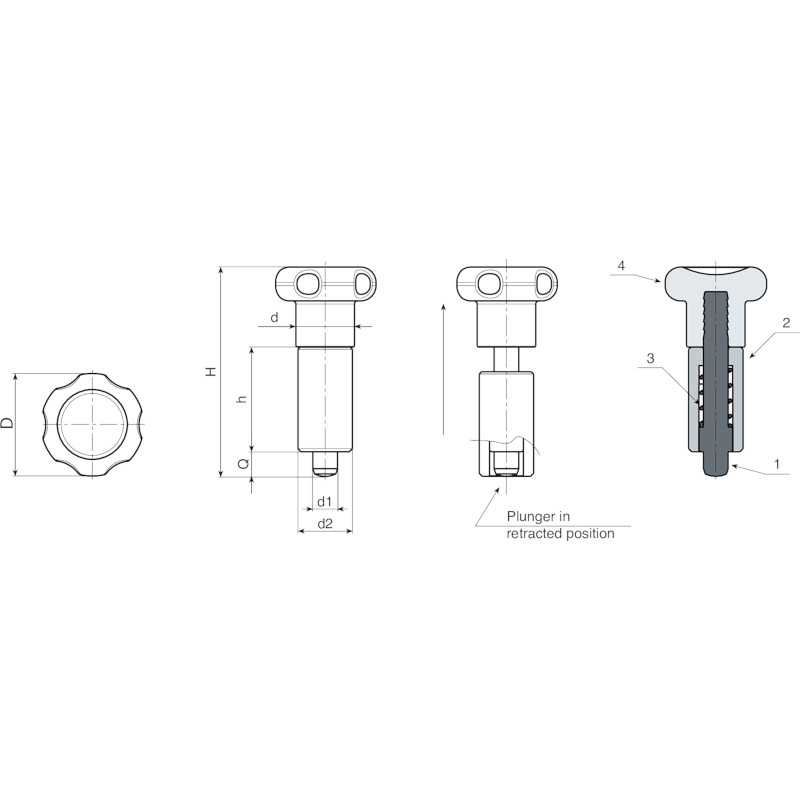

Codice Art. D H h d2 d d1 -0,02 -0,04 Q 3D
W806.0001 W806.Q0501 22 45 22 12 12 5 5 23
W806.0002 W806.Q0601 27 54 26 14 14 6 6 40
W806.0003 W806.Q0801 33 68 34 18 19 8 8 84
