STEEL INDEXING PLUNGER WITH LONG NOSE PIN AND LOCK NUT

Ver. 22V01-0124

STEEL INDEXING PLUNGER WITH LONG NOSE PIN AND LOCK NUT

W911 - STEEL INDEXING PLUNGER WITH LONG NOSE PIN AND LOCK NUT

(3) Stainless steel spring (Aisi 301).
W911:

Smooth.

  • Technical features

    Materials:
    (3) Stainless steel spring (Aisi 301).
    W911:
    (2) Threaded high-resistance steel hexagon ring nut.
    (1) Hardened high resistance steel plunger pin.
    (4) Threaded steel lock nut (UNI 5589).
    W911CIN:
    (2) Threaded stainless steel hexagon ring nut (Aisi 303).
    (1) Stainless steel plunger pin (Aisi 303).
    (4) Threaded stainless steel lock nut (Aisi 304) (UNI 5589).

    Surface finish:
    Smooth.

    Colour:
    W911: Black-oxide treated.
    W911CIN: Natural.

    ATTENTION:
    > We recommend an H7 tolerance for the plunger stem bore.
    > The nut is supplied assembled.

    Special Requests:
    On request the nut can be supplied disassembled.

    Note:
    This plunger version can be coupled with any hanwheel with threaded insert, to be ordered separately (see additional pictures).

Alternative products
Version W911 - black-oxide treated steel

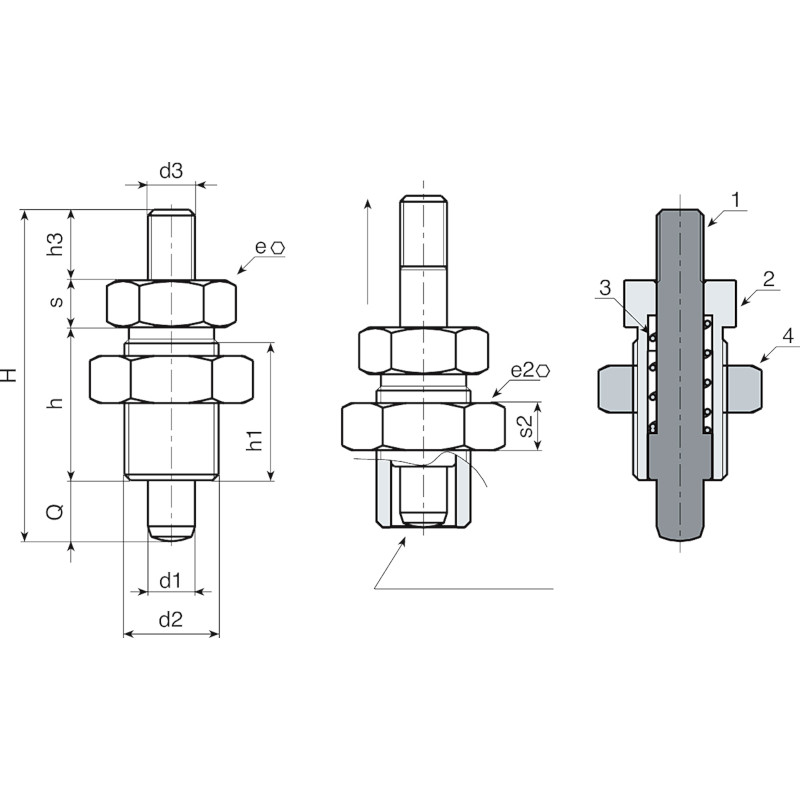

Codice Art. H h h1 d2 d3 h3 e s e2 s2 d1 -0,02 -0,04 Q 3D
W911010.0001 W911010.Q05X08 36 17 15 M10x1 M04 6 12 5 17 6 5 8 20
W911012.0001 W911012.Q06X09 45 20 18 M12x1,5 M05 10 14 6 19 7 6 9 32
W911016.0001 W911016.Q08X12 58 26 23 M16x1,5 M08 12 19 8 24 8 8 12 62
W911016.0002 W911016.Q10X12 58 26 23 M16x1,5 M08 12 19 8 24 8 10 12 63
W911020.0001 W911020.Q12X15 70 33 30 M20x1,5 M10 12 22 10 30 9 12 15 134
Version W911 CIN - stainless steel (Aisi 303)
Codice Art. H h h1 d2 d3 h3 e s e2 s2 d1 -0,02 -0,04 Q 3D
W911010.0002 W911010.I05X08CIN 36 17 15 M10x1 M04 6 12 5 17 6 5 8 20
W911012.0002 W911012.I06X09CIN 45 20 18 M12x1,5 M05 10 14 6 19 7 6 9 32
W911016.0003 W911016.I08X12CIN 58 26 23 M16x1,5 M08 12 19 8 24 8 8 12 62
W911016.0004 W911016.I10X12CIN 58 26 23 M16x1,5 M08 12 19 8 24 8 10 12 63
W911020.0002 W911020.I12X15CIN 70 33 30 M20x1,5 M10 12 22 10 30 9 12 15 134
