Fine pitch threaded plungers - without knob

STEEL INDEXING PLUNGER WITH LONG NOSE PIN

Ver. 22V01-0124

STEEL INDEXING PLUNGER WITH LONG NOSE PIN

W910 - STEEL INDEXING PLUNGER WITH LONG NOSE PIN

(3) Stainless steel spring (Aisi 301).
W910:

Smooth.

  • Technical features

    Materials:
    (3) Stainless steel spring (Aisi 301).
    W910:
    (2) Threaded high-resistance steel hexagon ring nut.
    (1) Hardened high resistance steel plunger pin.
    W910CIN:
    (2) Threaded stainless steel hexagon ring nut (Aisi 303).
    (1) Stainless steel plunger pin (Aisi 303).

    Surface finish:
    Smooth.

    Colour:
    W910: Black-oxide treated.
    W910CIN: Natural.

    ATTENTION:
    > We recommend an H7 tolerance for the plunger stem bore.

    Special Requests:
    None.

    Note:
    This plunger version can be coupled with any hanwheel with threaded insert, to be ordered separately (see additional pictures).

Alternative products
Version W910 - black-oxide treated steel

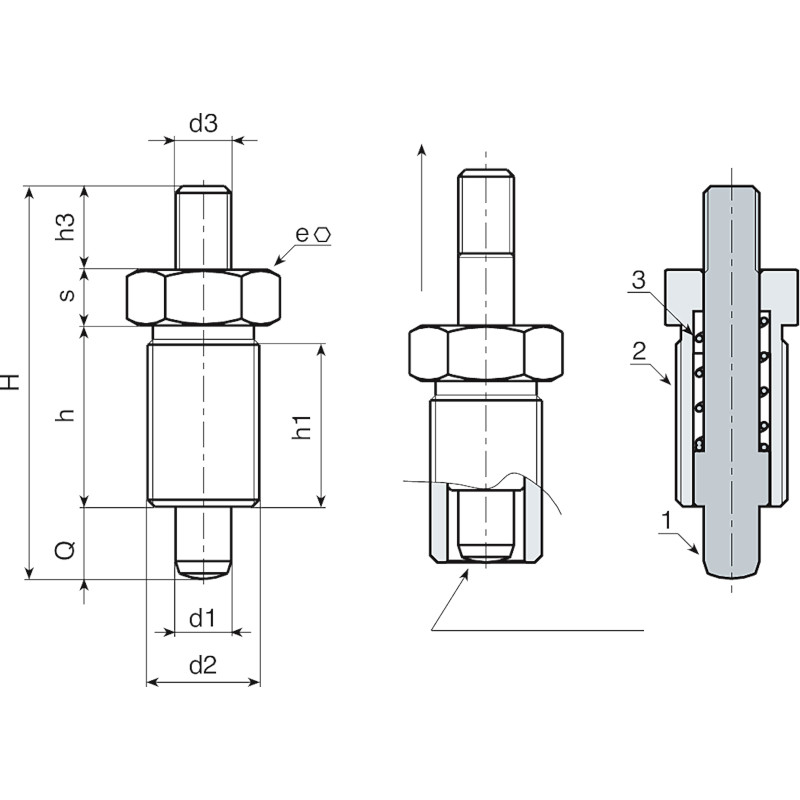

Codice Art. H h h1 d2 d3 h3 e s d1 -0,02 -0,04 Q 3D
W910010.0001 W910010.Q05X08 36 17 15 M10x1 M04 6 12 5 5 8 13
W910012.0002 W910012.Q06X09 45 20 18 M12x1,5 M05 10 14 6 6 9 22
W910016.0003 W910016.Q08X12 58 26 23 M16x1,5 M08 12 19 8 8 12 54
W910016.0004 W910016.Q10X12 58 26 23 M16x1,5 M08 12 19 8 10 12 55
W910020.0002 W910020.Q12X15 70 33 30 M20x1,5 M10 12 22 10 12 15 104
Version W910 CIN - stainless steel (Aisi 303)
Codice Art. H h h1 d2 d3 h3 e s d1 -0,02 -0,04 Q 3D
W910010.0002 W910010.I05X08CIN 36 17 15 M10x1 M04 6 12 5 5 8 13
W910012.0001 W910012.I06X09CIN 45 20 18 M12x1,5 M05 10 14 6 6 9 22
W910016.0001 W910016.I08X12CIN 58 26 23 M16x1,5 M08 12 19 8 8 12 54
W910016.0002 W910016.I10X12CIN 58 26 23 M16x1,5 M08 12 19 8 10 12 55
W910020.0001 W910020.I12X15CIN 70 33 30 M20x1,5 M10 12 22 10 12 15 104
