W800

Fine pitch threaded plungers - with knob

KNOB WITH STEEL INDEXING PLUNGER

Ver. 22V01-0124

KNOB WITH STEEL INDEXING PLUNGER

W800 - KNOB WITH STEEL INDEXING PLUNGER

(3) Stainless steel spring (Aisi 301).
(4) Reinforced polyamide lobed knob. Cannot be disassembled.Resistant to oils and greases.

(4) Satin.
(1-2-3) Smooth.

  • Technical features

    Materials:
    (3) Stainless steel spring (Aisi 301).
    (4) Reinforced polyamide lobed knob. Cannot be disassembled.Resistant to oils and greases.
    W800:
    (2) Threaded high-resistance steel hexagon ring nut.
    (1) Hardened high resistance steel plunger pin.
    W800CIN:
    (2) Threaded stainless steel hexagon ring nut (Aisi 303).
    (1) Stainless steel plunger pin (Aisi 303).

    Surface finish:
    (4) Satin.
    (1-2-3) Smooth.

    Colour:
    (4) Black (RAL 9011).
    W800:
    (1-2) Black-oxide treated.
    W800CIN:
    (1-2) Natural.

    ATTENTION:
    > We recommend an H7 tolerance for the plunger stem bore.

    Special Requests:
    On request and for special quantities the knob can be supplied in the colours indicated in the table [pageTitoloTabellaColori.

Alternative products
Version W800 - black-oxide treated steel

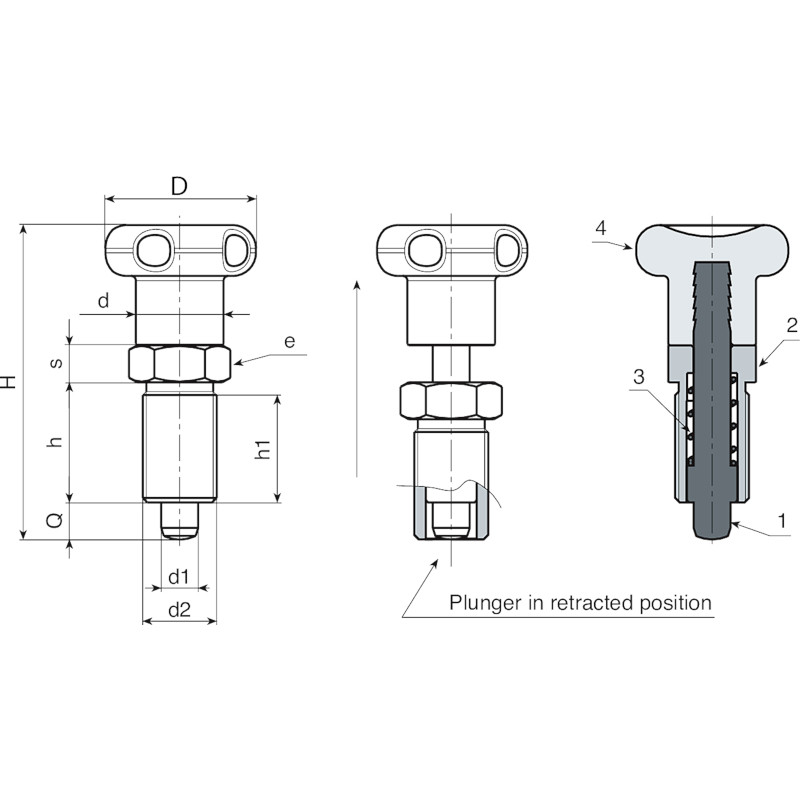

Codice Art. D H h h1 d2 d e s d1 -0,02 -0,04 Q 3D
W800.0006 W800.Q0501 22 45 17 15 M10x1 12 12 5 5 5 18
W800.0007 W800.Q0601 27 54 20 18 M12x1,5 14 14 6 6 6 31
W800.0008 W800.Q0801 33 68 26 23 M16x1,5 19 19 8 8 8 71
W800.0010 W800.Q1001 33 79 33 30 M20x1,5 19 22 10 10 10 123
Version W800 CIN - stainless steel (Aisi 303)
Codice Art. D H h h1 d2 d e s d1 -0,02 -0,04 Q 3D
W800.0001 W800.I0501CIN 22 45 17 15 M10x1 12 12 5 5 5 18
W800.0002 W800.I0601CIN 27 54 20 18 M12x1,5 14 14 6 6 6 31
W800.0003 W800.I0801CIN 33 68 26 23 M16x1,5 19 19 8 8 8 71
W800.0005 W800.I1001CIN 33 79 33 30 M20x1,5 19 22 10 10 10 123
