Fine pitch threaded plungers - with knob

KNOB WITH STEEL INDEXING PLUNGER WITHOUT RING NUT - WITH LOCK NUT

Ver. 22V01-0124

KNOB WITH STEEL INDEXING PLUNGER WITHOUT RING NUT - WITH LOCK NUT

W805 - KNOB WITH STEEL INDEXING PLUNGER WITHOUT RING NUT - WITH LOCK NUT

(3) Stainless steel spring (Aisi 301).
(4) Reinforced polyamide lobed knob. Cannot be disassembled.Resistant to oils and greases.

(4) Satin.
(1-2-5) Smooth.

  • Technical features

    Materials:
    (3) Stainless steel spring (Aisi 301).
    (4) Reinforced polyamide lobed knob. Cannot be disassembled.Resistant to oils and greases.
    W805:
    (2) Threaded high-resistance steel body with seat for key.
    (1) Hardened high resistance steel plunger pin.
    (5) Threaded steel lock nut (UNI 5589).
    W805CIN:
    (2) Threaded stainless steel body (Aisi 303), with seat for key.
    (1) Stainless steel plunger pin (Aisi 303).
    (5) Threaded stainless steel lock nut (Aisi 304) (UNI 5589).

    Surface finish:
    (4) Satin.
    (1-2-5) Smooth.

    Colour:
    (4) Black (RAL 9011).
    W805:
    (1-2) Black-oxide treated.
    W805CIN:
    (1-2) Natural.

    Locking key:
    Upon request the locking key with article code W807 is available.

    ATTENTION:
    > We recommend an H7 tolerance for the plunger stem bore.
    > The nut is supplied assembled.

    Special Requests:
    On request and for special quantities the knob can be supplied in the colours indicated in the table [pageTitoloTabellaColori.
    Upon request locking keys are available.
    On request the nut can be supplied disassembled.

Alternative products
Version W805 - black-oxide treated steel

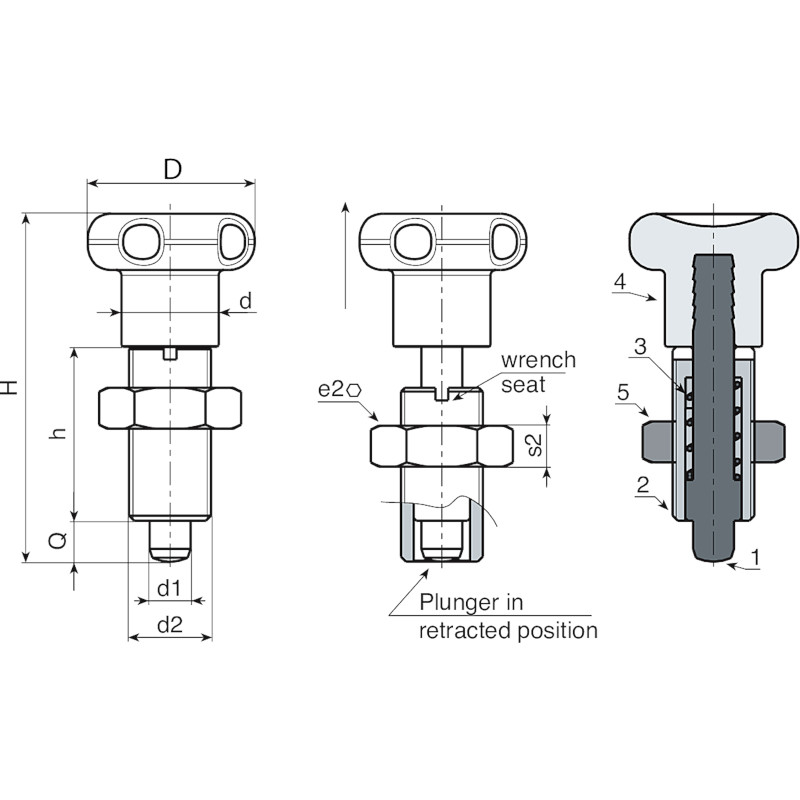

Codice Art. D H h d2 d e2 s2 d1 -0,02 -0,04 Q Chiave
W805.0006 W805.Q0501 22 45 22 M10x1 12 17 6 5 5 23 W807.05
W805.0008 W805.Q0601 27 54 26 M12x1,5 14 19 7 6 6 38 W807.06
W805.0009 W805.Q0801 33 68 34 M16x1,5 19 24 8 8 8 82 W807.08
W805.0011 W805.Q1001 33 79 43 M20x1,5 19 30 9 10 10 133 W807.10
Version W805 CIN - stainless steel (Aisi 303)
Codice Art. D H h d2 d e2 s2 d1 -0,02 -0,04 Q Chiave
W805.0001 W805.I0501CIN 22 45 22 M10x1 12 17 6 5 5 23 W807.05
W805.0002 W805.I0601CIN 27 54 26 M12x1,5 14 19 7 6 6 38 W807.06
W805.0003 W805.I0801CIN 33 68 34 M16x1,5 19 24 8 8 8 82 W807.08
W805.0005 W805.I1001CIN 33 79 43 M20x1,5 19 30 9 10 10 133 W807.10
