W815

Fine pitch threaded plungers - with knob

LEVER LOCKING STEEL INDEXING PLUNGER

Ver. 22V01-0124

LEVER LOCKING STEEL INDEXING PLUNGER

W815 - LEVER LOCKING STEEL INDEXING PLUNGER

(3) Lever in die-cast zamak.
W815:

(3) Satin.
(1-2) Smooth.

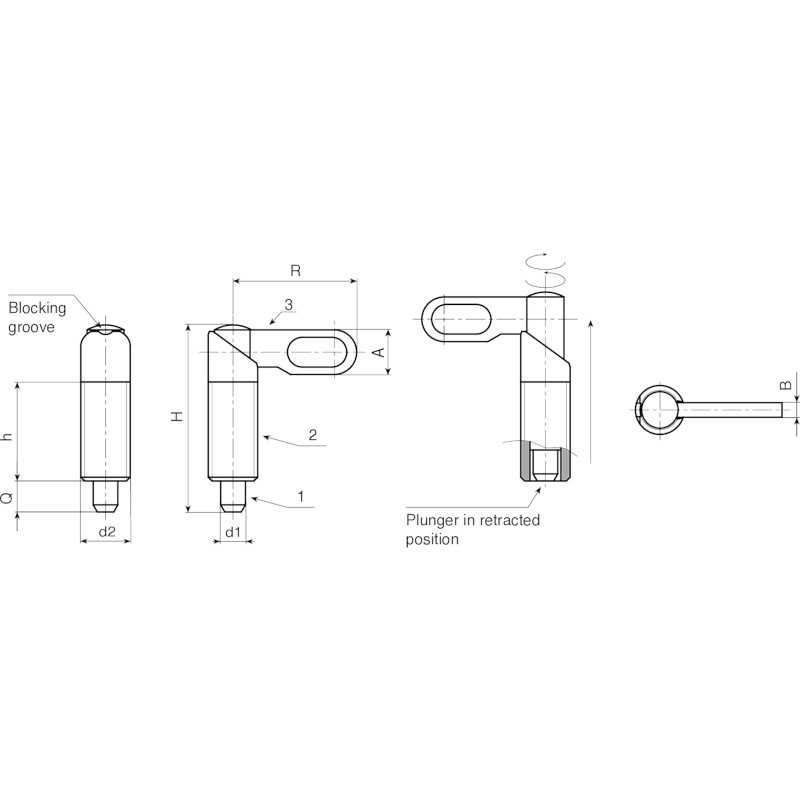

  • Technical features

    Materials:
    (3) Lever in die-cast zamak.
    W815:
    (1) Hardened high resistance steel plunger pin.
    (2) Threaded turned high-resistance steel body with seat for locking position.
    (5) Galvanised steel spring.
    W815CIN:
    (1) Stainless steel plunger pin (Aisi 303).
    (2) Threaded turned high-resistance stainless steel body (Aisi 303) with seat for locking position.
    (5) Stainless steel spring (Aisi 301).

    Surface finish:
    (3) Satin.
    (1-2) Smooth.

    Colour:
    (3) Epoxy powder coated, black (RAL 9011).
    W815: (1-2) Black-oxide treated.
    W815CIN: (1-2) Natural.

    ATTENTION:
    > We recommend an H7 tolerance for the plunger stem bore.

    Special Requests:
    Upon request and for special quantities the plunger thread can be supplied with standard coarse pitch.

Alternative products
Version W815 - black-oxide treated steel
Codice Art. R H h A B d2 d1 -0,02 -0,04 Q 3D
W81510.0004 W81510.V04 25 38 20 9 3 M10x1 4 6 18
W81510.0005 W81510.V05 25 38 20 9 3 M10x1 5 6 19
W81510.0006 W81510.V06 25 38 20 9 3 M10x1 6 6 21
W81512.0004 W81512.V05 30 47 25 11 3.5 M12X1,5 5 8 30
W81512.0005 W81512.V06 30 47 25 11 3.5 M12X1,5 6 8 30
W81512.0006 W81512.V08 30 47 25 11 3.5 M12X1,5 8 8 33
W81516.0004 W81516.V06 40 60,5 32 14,5 5 M16x1,5 6 10 73
W81516.0005 W81516.V08 40 60,5 32 14,5 5 M16x1,5 8 10 75
W81516.0006 W81516.V10 40 60,5 32 14,5 5 M16x1,5 10 10 77
W81520.0004 W81520.V08 50 70 35 18 6 M20x1,5 8 12 137
W81520.0005 W81520.V10 50 70 35 18 6 M20x1,5 10 12 173
W81520.0006 W81520.V12 50 70 35 18 6 M20x1,5 12 12 143
Version W815 CIN - stainless steel (Aisi 303)
Codice Art. R H h A B d2 d1 -0,02 -0,04 Q 3D
W81510.0001 W81510.I04CIN 25 38 20 9 3 M10x1 4 6 18
W81510.0002 W81510.I05CIN 25 38 20 9 3 M10x1 5 6 19
W81510.0003 W81510.I06CIN 25 38 20 9 3 M10x1 6 6 21
W81512.0001 W81512.I05CIN 30 47 25 11 3.5 M12X1,5 5 8 30
W81512.0002 W81512.I06CIN 30 47 25 11 3.5 M12X1,5 6 8 30
W81512.0003 W81512.I08CIN 30 47 25 11 3.5 M12X1,5 8 8 33
W81516.0001 W81516.I06CIN 40 60,5 32 14,5 5 M16x1,5 6 10 73
W81516.0002 W81516.I08CIN 40 60,5 32 14,5 5 M16x1,5 8 10 75
W81516.0003 W81516.I10CIN 40 60,5 32 14,5 5 M16x1,5 10 10 77
W81520.0001 W81520.I08CIN 50 70 35 18 6 M20x1,5 8 12 137
W81520.0002 W81520.I10CIN 50 70 35 18 6 M20x1,5 10 12 142
W81520.0003 W81520.I12CIN 50 70 35 18 6 M20x1,5 12 12 143
