Fine pitch threaded plungers - with knob

LEVER LOCKING STEEL INDEXING PLUNGER - WITH NUT

Ver. 22V01-0124

LEVER LOCKING STEEL INDEXING PLUNGER - WITH NUT

W816 - LEVER LOCKING STEEL INDEXING PLUNGER - WITH NUT

(3) Lever in die-cast zamak.
W816:

(3) Satin.
(1-2-4) Smooth.

  • Technical features

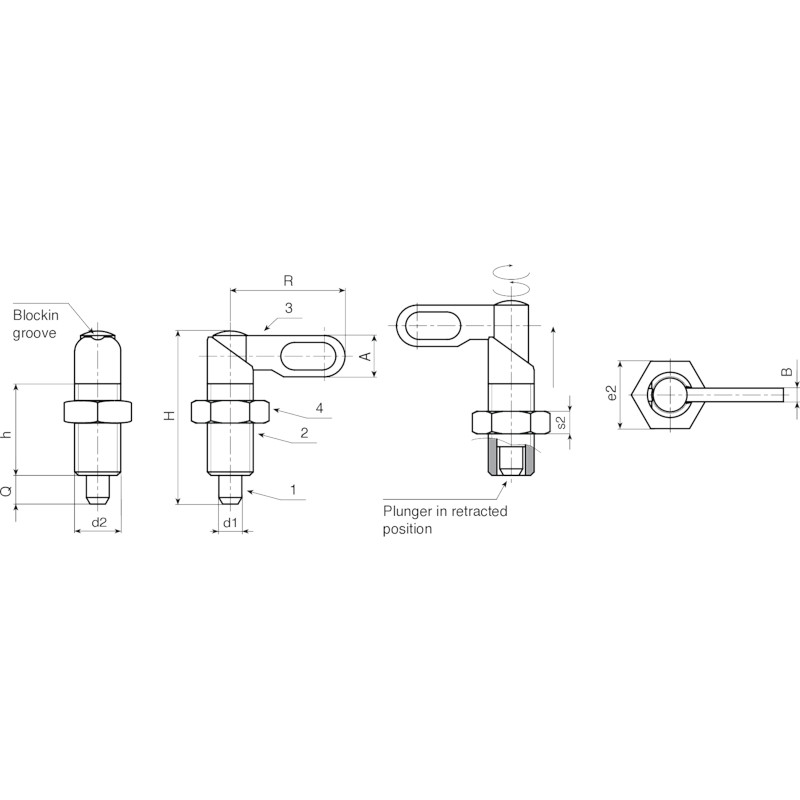

    Materials:
    (3) Lever in die-cast zamak.
    W816:
    (1) Hardened high resistance steel plunger pin.
    (2) Threaded turned high-resistance steel body with seat for locking position.
    (4) Threaded steel lock nut (UNI 5589).
    (5) Galvanised steel spring.
    W816CIN:
    (1) Stainless steel plunger pin (Aisi 303).
    (2) Threaded turned high-resistance stainless steel body (Aisi 303) with seat for locking position.
    (4) Threaded stainless steel lock nut (Aisi 304) (UNI 5589).
    (5) Stainless steel spring (Aisi 301).

    Surface finish:
    (3) Satin.
    (1-2-4) Smooth.

    Colour:
    (3) Epoxy powder coated, black (RAL 9011).
    W816: (1-2-4) Black-oxide treated.
    W816CIN: (1-2-4) Natural.

    ATTENTION:
    > We recommend an H7 tolerance for the plunger stem bore.
    > The nut is supplied assembled.

    Special Requests:
    Upon request and for special quantities the plunger thread can be supplied with standard coarse pitch.
    On request the nut can be supplied disassembled.

Alternative products
Version W816 - black-oxide treated steel
Codice Art. R H h A B d2 e2 s2 d1 -0,02 -0,04 Q 3D
W81610.0004 W81610.V04 25 38 20 9 3 M10x1 17 6 4 6 25
W81610.0005 W81610.V05 25 38 20 9 3 M10x1 17 6 5 6 26
W81610.0006 W81610.V06 25 38 20 9 3 M10x1 17 6 6 6 28
W81612.0005 W81612.V05 30 47 25 11 3.5 M12X1,5 19 7 5 8 40
W81612.0006 W81612.V06 30 47 25 11 3.5 M12X1,5 19 7 6 8 40
W81612.0008 W81612.V08 30 47 25 11 3.5 M12X1,5 19 7 8 8 43
W81616.0004 W81616.V06 40 60,5 32 14,5 5 M16x1,5 24 8 6 10 91
W81616.0005 W81616.V08 40 60,5 32 14,5 5 M16x1,5 24 8 8 10 93
W81616.0006 W81616.V10 40 60,5 32 14,5 5 M16x1,5 24 8 10 10 95
W81620.0004 W81620.V08 50 70 35 18 6 M20x1,5 30 9 8 12 168
W81620.0005 W81620.V10 50 70 35 18 6 M20x1,5 30 9 10 12 173
W81620.0006 W81620.V12 50 70 35 18 6 M20x1,5 30 9 12 12 174
Version W816 CIN - stainless steel (Aisi 303)
Codice Art. R H h A B d2 e2 s2 d1 -0,02 -0,04 Q 3D
W81610.0001 W81610.I04CIN 25 38 20 9 3 M10x1 17 6 4 6 25
W81610.0002 W81610.I05CIN 25 38 20 9 3 M10x1 17 6 5 6 26
W81610.0003 W81610.I06CIN 25 38 20 9 3 M10x1 17 6 6 6 28
W81612.0001 W81612.I05CIN 30 47 25 11 3.5 M12X1,5 19 7 5 8 40
W81612.0002 W81612.I06CIN 30 47 25 11 3.5 M12X1,5 19 7 6 8 40
W81612.0003 W81612.I08CIN 30 47 25 11 3.5 M12X1,5 19 7 8 8 43
W81616.0001 W81616.I06CIN 40 60,5 32 14,5 5 M16x1,5 24 8 6 10 91
W81616.0002 W81616.I08CIN 40 60,5 32 14,5 5 M16x1,5 24 8 8 10 93
W81616.0003 W81616.I10CIN 40 60,5 32 14,5 5 M16x1,5 24 8 10 10 95
W81620.0001 W81620.I08CIN 50 70 35 18 6 M20x1,5 30 9 8 12 168
W81620.0002 W81620.I10CIN 50 70 35 18 6 M20x1,5 30 9 10 12 173
W81620.0003 W81620.I12CIN 50 70 35 18 6 M20x1,5 30 9 12 12 174
