Doigts d’indexage filetés petit pas - sans pommeau

DOIGT D’INDEXAGE FILETÉ EN ACIER AVEC EMBOUT RALLONGÉ ET ÉCROU DE BLOCAGE

Ver. 22V01-0124

DOIGT D’INDEXAGE FILETÉ EN ACIER AVEC EMBOUT RALLONGÉ ET ÉCROU DE BLOCAGE

W911 - DOIGT D’INDEXAGE FILETÉ EN ACIER AVEC EMBOUT RALLONGÉ ET ÉCROU DE BLOCAGE

(3) Ressort en acier inox (Aisi 301)
W911 :

Lisse.

  • Caractéristiques techniques

    Matériaux :
    (3) Ressort en acier inox (Aisi 301)
    W911 :
    (2) Bague hexagonale filetée en acier haute résistance.
    (1) Poussoir en acier haute résistance et trempé.
    (4) Écrou de blocage fileté en acier (UNI 5589).
    W911CIN :
    (2) Bague hexagonale filetée en acier inox (Aisi 303).
    (1) Poussoir en acier inox (Aisi 303).
    (4) Écrou de blocage fileté en acier inox (Aisi 304) (UNI 5589).

    Surface :
    Lisse.

    Couleur :
    W911 : Brunie.
    W911CIN : Naturelle.

    ATTENTION :
    > Nous conseillons l’exécution du trou de logement de la tige du doigt d'indexage avec tolérance H7.
    > Écrou fourni assemblé.

    Demandes spéciales :
    Sur demande l’écrou peut être fourni démonté.

    Note :
    Cette version de doigt d'indexage peut être couplée à n'importe quel volant à douille filetée, à commander séparément (voir photos supplémentaires).

Produits de substitution
Version W911 - en acier bruni

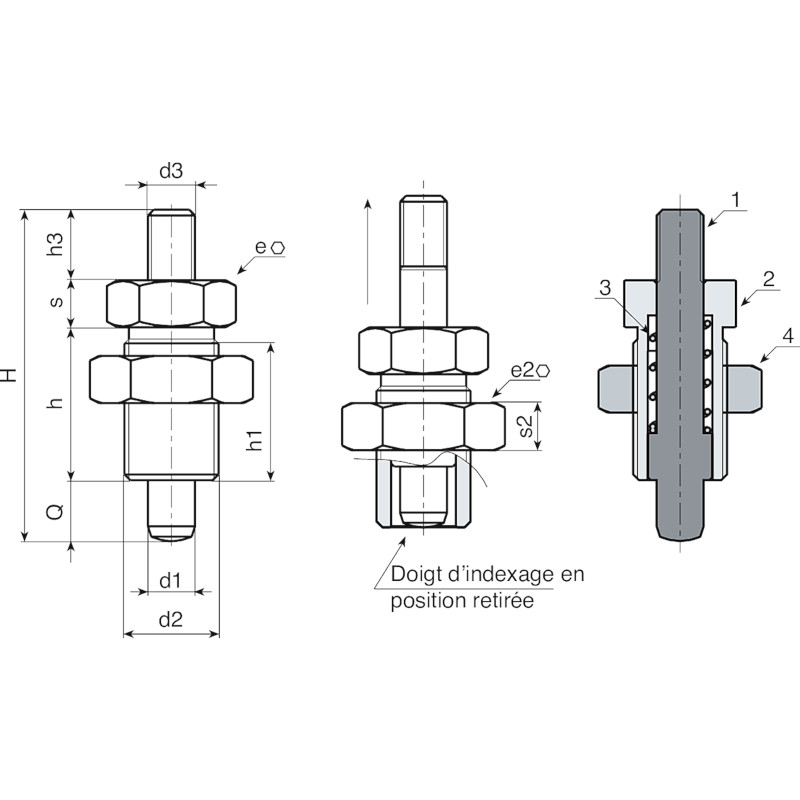

Codice Art. H h h1 d2 d3 h3 e s e2 s2 d1 -0,02 -0,04 Q 3D
W911010.0001 W911010.Q05X08 36 17 15 M10x1 M04 6 12 5 17 6 5 8 20
W911012.0001 W911012.Q06X09 45 20 18 M12x1,5 M05 10 14 6 19 7 6 9 32
W911016.0001 W911016.Q08X12 58 26 23 M16x1,5 M08 12 19 8 24 8 8 12 62
W911016.0002 W911016.Q10X12 58 26 23 M16x1,5 M08 12 19 8 24 8 10 12 63
W911020.0001 W911020.Q12X15 70 33 30 M20x1,5 M10 12 22 10 30 9 12 15 134
Version W911 CIN - en acier inox (Aisi 303)
Codice Art. H h h1 d2 d3 h3 e s e2 s2 d1 -0,02 -0,04 Q 3D
W911010.0002 W911010.I05X08CIN 36 17 15 M10x1 M04 6 12 5 17 6 5 8 20
W911012.0002 W911012.I06X09CIN 45 20 18 M12x1,5 M05 10 14 6 19 7 6 9 32
W911016.0003 W911016.I08X12CIN 58 26 23 M16x1,5 M08 12 19 8 24 8 8 12 62
W911016.0004 W911016.I10X12CIN 58 26 23 M16x1,5 M08 12 19 8 24 8 10 12 63
W911020.0002 W911020.I12X15CIN 70 33 30 M20x1,5 M10 12 22 10 30 9 12 15 134
