Standard pitch threaded plungers - without knob

STEEL INDEXING PLUNGER WITH RING - WITH NUT

Ver. 22V01-0124

STEEL INDEXING PLUNGER WITH RING - WITH NUT

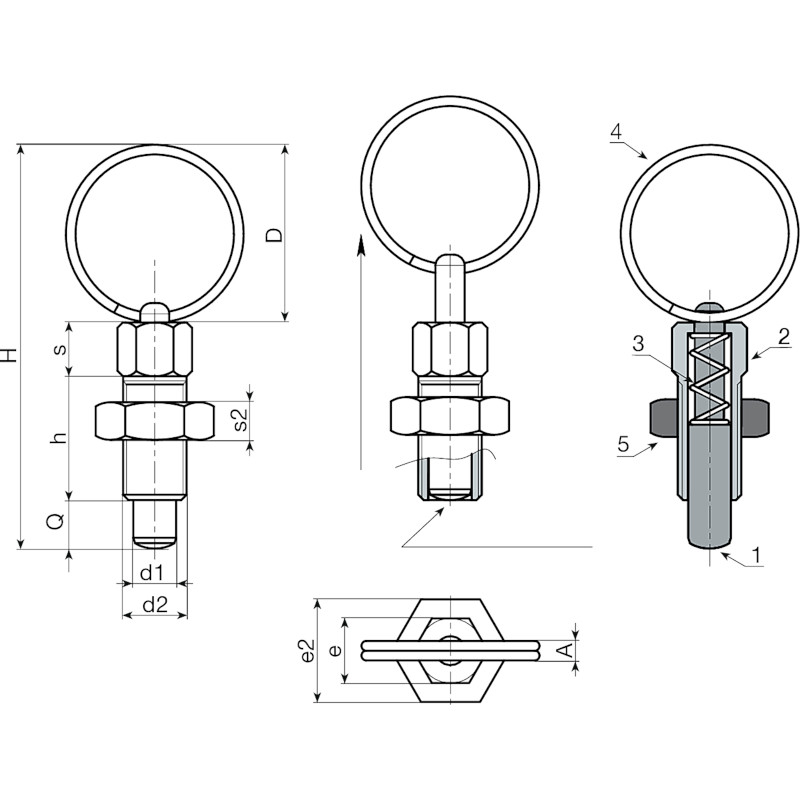

W798 - STEEL INDEXING PLUNGER WITH RING - WITH NUT

(1) Stainless steel plunger pin (Aisi 303).
(4) Harmonic stainless steel spring ring.

W798:
(2-5) Galvanised.

  • Technical features

    Materials:
    (1) Stainless steel plunger pin (Aisi 303).
    (4) Harmonic stainless steel spring ring.
    W798:
    (2) Indexing plunger body in free-cutting steel.
    (3) Galvanised steel spring.
    (5) Threaded steel lock nut (UNI 5589).
    W798 CIN:
    (2) Stainless steel (Aisi 303) indexing plunger body.
    (3) Stainless steel spring (Aisi 301).
    (5) Threaded stainless steel lock nut (Aisi 304) (UNI 5589).

    Surface finish:
    W798:
    (2-5) Galvanised.
    (1-4) Natural.
    W798 CIN:
    (1-2-4-5) Natural.

    ATTENTION:
    > We recommend an H7 tolerance for the plunger stem bore.
    > The nut is supplied assembled.

    Special Requests:
    On request the nut can be supplied disassembled.

Alternative products
Version W798 - galvanised steel
Codice Art. D H h A e s d2 e2 s2 d1 -0,02 -0,04 Q 3D
W798.0001 W798.J04 15 35.5 12 2 6 4.5 M6 10 4 4 4 7
W798.0003 W798.J05 19 46 16 2.5 8 6 M8 13 5 5 5 16
W798.0005 W798.J06 27 60.5 20 3 10 7.5 M10 17 6 6 6 31
W798.0007 W798.J08 33 75 24 3.5 12 9 M12 19 7 8 8 50
Version W798 CIN - stainless steel (Aisi 303)
Codice Art. D H h A e s d2 e2 s2 d1 -0,02 -0,04 Q 3D
W798.0002 W798.J04CIN 15 35.5 12 2 6 4.5 M6 10 4 4 4 7
W798.0004 W798.J05CIN 19 46 16 2.5 8 6 M8 13 5 5 5 16
W798.0006 W798.J06CIN 27 60.5 20 3 10 7.5 M10 17 6 6 6 31
W798.0008 W798.J08CIN 33 75 24 3.5 12 9 M12 19 7 8 8 50
