Standard pitch threaded plungers - with knob

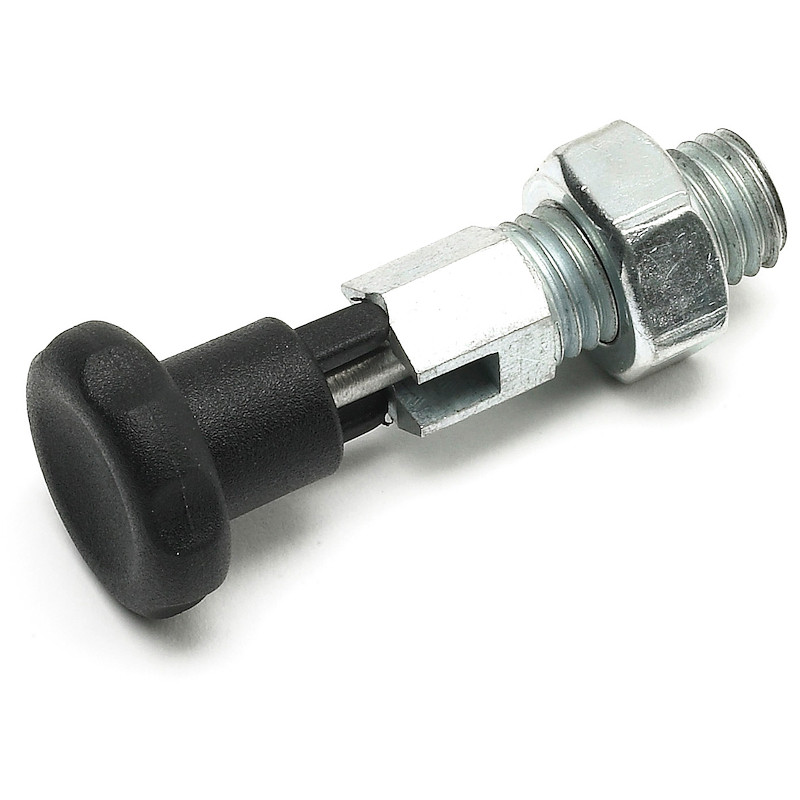

KNOB WITH LOCKING STEEL INDEXING PLUNGER - WITH NUT

Ver. 22V01-0124

KNOB WITH LOCKING STEEL INDEXING PLUNGER - WITH NUT

W794 - KNOB WITH LOCKING STEEL INDEXING PLUNGER - WITH NUT

(1) Stainless steel plunger pin (Aisi 303).
(4) Reinforced polyamide lobed knob. Cannot be disassembled.Resistant to oils and greases.

(4) Satin.
(1-2-5) Smooth.

  • Technical features

    Materials:
    (1) Stainless steel plunger pin (Aisi 303).
    (4) Reinforced polyamide lobed knob. Cannot be disassembled.Resistant to oils and greases.
    W794:
    (2) Locking indexing plunger body in free-cutting steel.
    (3) Galvanised steel spring.
    (5) Threaded steel lock nut (UNI 5589).
    W794 CIN:
    (2) Stainless steel (Aisi 303) locking indexing plunger body.
    (3) Stainless steel spring (Aisi 301).
    (5) Threaded stainless steel lock nut (Aisi 304) (UNI 5589).

    Surface finish:
    (4) Satin.
    (1-2-5) Smooth.

    Colour:
    (4) Black (RAL 9011).
    W794:
    (2-5) Galvanised.
    W794 CIN:
    (1-2-5) Natural.

    ATTENTION:
    > We recommend an H7 tolerance for the plunger stem bore.
    > The nut is supplied assembled.

    Special Requests:
    On request the nut can be supplied disassembled.

Alternative products
Version W794 - galvanised steel

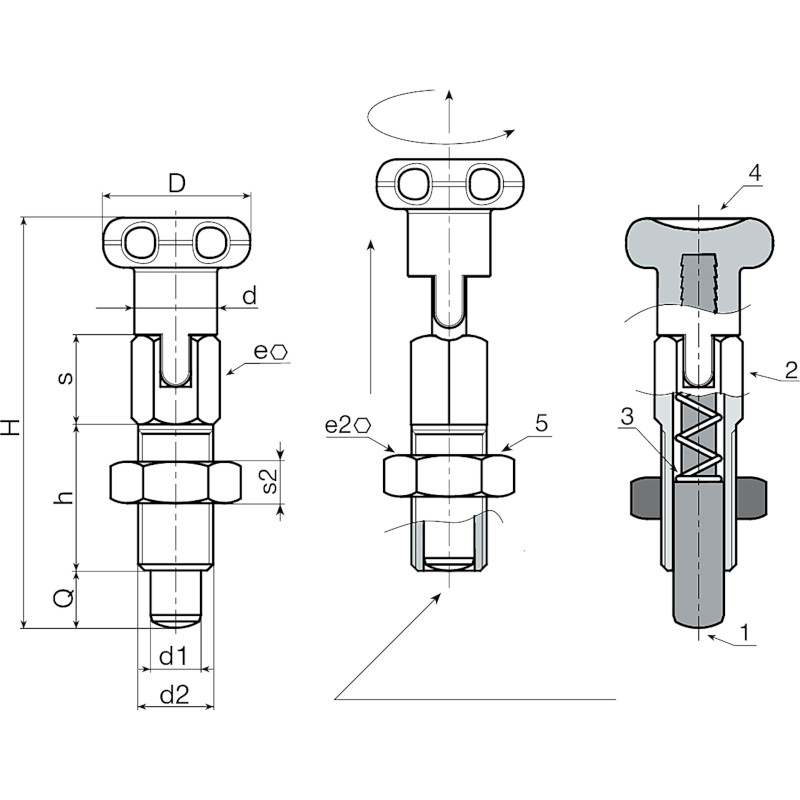

Codice Art. D d H h e s d2 e2 s2 d1 -0,02 -0,04 Q 3D
W794.0001 W794.J0401 14 7 36 12 6 8 M6 10 4 4 4 7
W794.0003 W794.J0501 18 9 46 16 8 10 M8 13 5 5 5 16
W794.0005 W794.J0601 22 11 55 20 10 11 M10 17 6 6 6 32
W794.0007 W794.J0801 24 13 58 24 12 14 M12 19 7 8 8 51
Version W794 CIN - stainless steel (Aisi 303)
Codice Art. D d H h e s d2 e2 s2 d1 -0,02 -0,04 Q 3D
W794.0002 W794.J0401CIN 14 7 36 12 6 8 M6 10 4 4 4 7
W794.0004 W794.J0501CIN 18 9 46 16 8 10 M8 13 5 5 5 16
W794.0006 W794.J0601CIN 22 11 55 20 10 11 M10 17 6 6 6 32
W794.0008 W794.J0801CIN 24 13 58 24 12 14 M12 19 7 8 8 51
