W797

Standard pitch threaded plungers - without knob

STEEL INDEXING PLUNGER WITH RING

Ver. 22V01-0124

STEEL INDEXING PLUNGER WITH RING

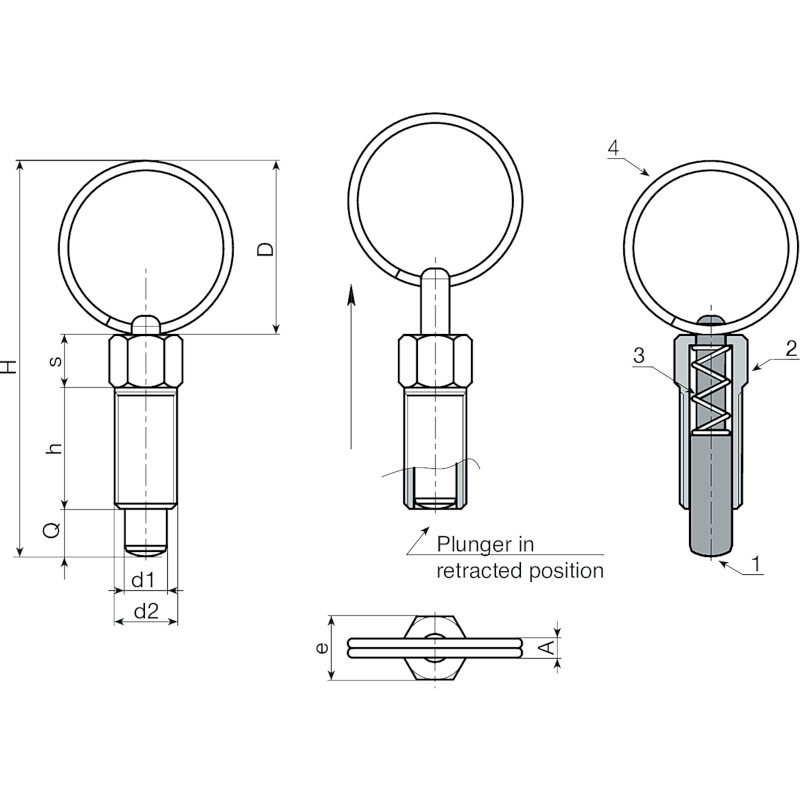

W797 - STEEL INDEXING PLUNGER WITH RING

(1) Stainless steel plunger pin (Aisi 303).
(4) Harmonic stainless steel spring ring.

W797:
(2) Galvanised.

  • Technical features

    Materials:
    (1) Stainless steel plunger pin (Aisi 303).
    (4) Harmonic stainless steel spring ring.
    W797:
    (2) Indexing plunger body in free-cutting steel.
    (3) Galvanised steel spring.
    W797CIN:
    (2) Stainless steel (Aisi 303) indexing plunger body.
    (3) Stainless steel spring (Aisi 301).

    Surface finish:
    W797:
    (2) Galvanised.
    (4) Natural.
    W797CIN:
    (1-2-4) Natural.

    ATTENTION:
    > We recommend an H7 tolerance for the plunger stem bore.

    Special Requests:
    None.

Alternative products
Version W797 - galvanised steel
Codice Art. D H h A e s d2 d1 -0,02 -0,04 Q 3D
W797.0001 W797.J04 15 35.5 12 2 6 4.5 M6 4 4 5
W797.0003 W797.J05 19 46 16 2.5 8 6 M8 5 5 11
W797.0005 W797.J06 27 60.5 20 3 10 7.5 M10 6 6 23
W797.0007 W797.J08 33 75 24 3.5 12 9 M12 8 8 38
Version W797 CIN - stainless steel (Aisi 303)
Codice Art. D H h A e s d2 d1 -0,02 -0,04 Q 3D
W797.0002 W797.J04CIN 15 35.5 12 2 6 4.5 M6 4 4 5
W797.0004 W797.J05CIN 19 46 16 2.5 8 6 M8 5 5 11
W797.0006 W797.J06CIN 27 60.5 20 3 10 7.5 M10 6 6 23
W797.0008 W797.J08CIN 33 75 24 3.5 12 9 M12 8 8 38
