Standard pitch threaded plungers - with knob

KNOB WITH STEEL INDEXING PLUNGER - WITH NUT

Ver. 22V01-0124

KNOB WITH STEEL INDEXING PLUNGER - WITH NUT

W796 - KNOB WITH STEEL INDEXING PLUNGER - WITH NUT

(1) Stainless steel plunger pin (Aisi 303).
(4) Reinforced polyamide lobed knob. Cannot be disassembled.Resistant to oils and greases.

(4) Satin.
(1-2-5) Smooth.

  • Technical features

    Materials:
    (1) Stainless steel plunger pin (Aisi 303).
    (4) Reinforced polyamide lobed knob. Cannot be disassembled.Resistant to oils and greases.
    W796:
    (2) Indexing plunger body in free-cutting steel.
    (3) Galvanised steel spring.
    (5) Threaded steel lock nut (UNI 5589).
    W796 CIN:
    (2) Stainless steel (Aisi 303) indexing plunger body.
    (3) Stainless steel spring (Aisi 301).
    (5) Threaded stainless steel lock nut (Aisi 304) (UNI 5589).

    Surface finish:
    (4) Satin.
    (1-2-5) Smooth.

    Colour:
    (4) Black (RAL 9011).
    W796:
    (2-5) Galvanised.
    W796 CIN:
    (1-2-5) Natural.

    ATTENTION:
    > We recommend an H7 tolerance for the plunger stem bore.
    > The nut is supplied assembled.

    Special Requests:
    On request the nut can be supplied disassembled.

Alternative products

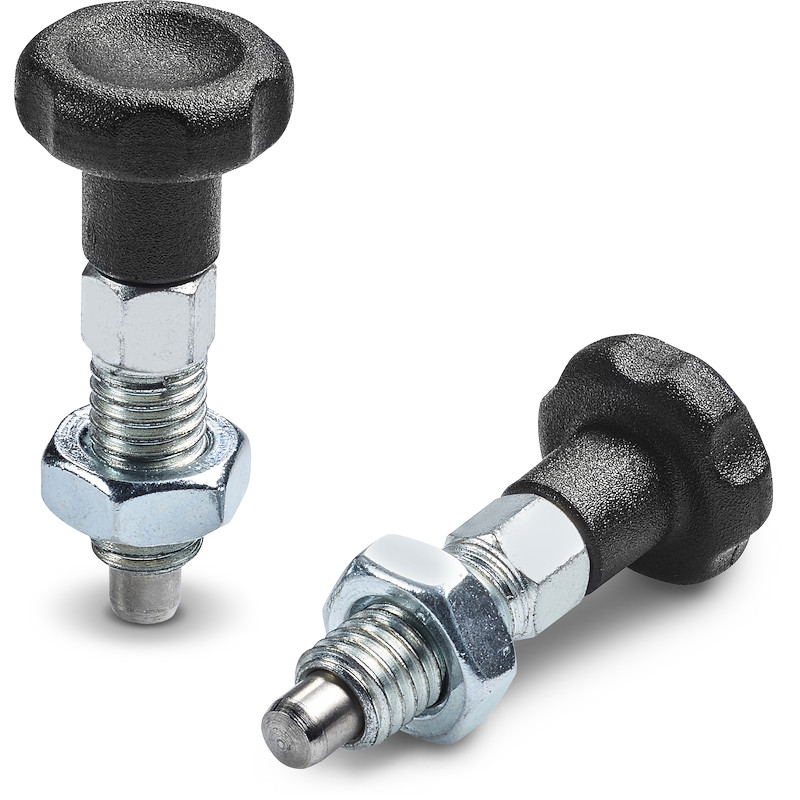

Version W796 - galvanised steel

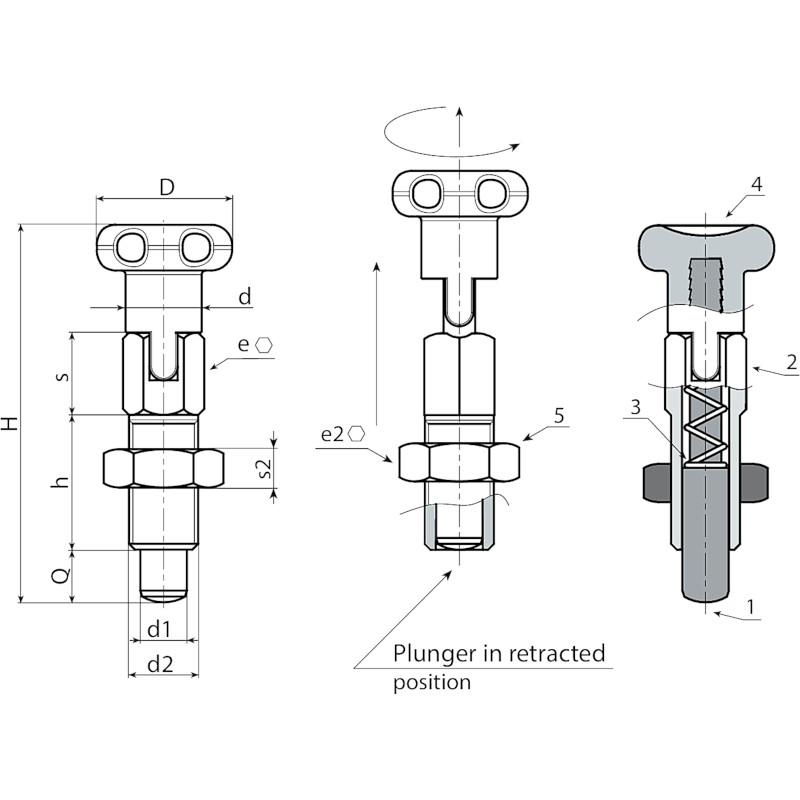

Codice Art. D d H h e s d2 e2 s2 d1 -0,02 -0,04 Q 3D
W796.0001 W796.J0401 14 7 33 12 6 5 M6 10 4 4 4 5
W796.0003 W796.J0501 18 9 42 16 8 6 M8 13 5 5 5 11
W796.0005 W796.J0601 22 11 52 20 10 7,5 M10 17 6 6 6 23
W796.0007 W796.J0801 24 13 61 24 12 9 M12 19 7 8 8 38

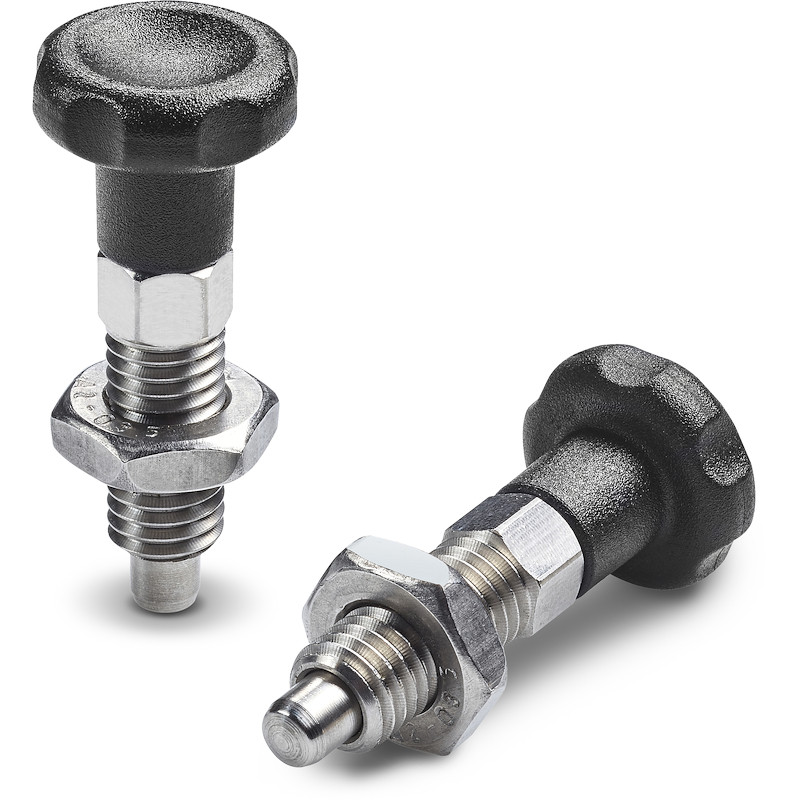

Version W796 CIN - stainless steel (Aisi 303)
Codice Art. D d H h e s d2 e2 s2 d1 -0,02 -0,04 Q 3D
W796.0002 W796.J0401CIN 14 7 33 12 6 5 M6 10 4 4 4 5
W796.0004 W796.J0501CIN 18 9 42 16 8 6 M8 13 5 5 5 11
W796.0006 W796.J0601CIN 22 11 52 20 10 7,5 M10 17 6 6 6 23
W796.0008 W796.J0801CIN 24 13 61 24 12 9 M12 19 7 8 8 38
