10

J140

1/4 turn lock - M19

UNIVERSAL LOCK FOR TRIANGULAR INSERT KEY

Ver. 10V01-0124

(1) Die-cast zamak lock body M19 (stator) and rotor. 6 mm triangular insert key.
(2) Elastic washer d. 24x1 with bore d. 19.4.

(1) Nickel-plated.
(2-5) Black oxide treated.

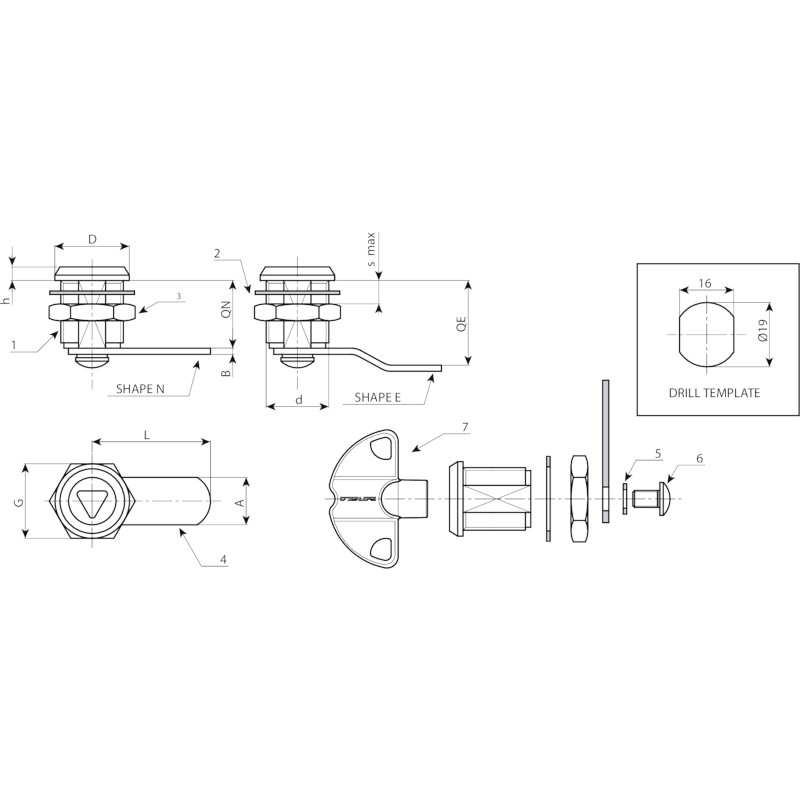

  • Technical features

    Materials:
    (1) Die-cast zamak lock body M19 (stator) and rotor. 6 mm triangular insert key.
    (2) Elastic washer d. 24x1 with bore d. 19.4.
    (3) Steel hexagon lock nut M19x1.
    (4) Steel locking lever (Qn design N flat - Qe design E bent outwards).
    (5) Conical steel elastic washer d. 12x1.5.
    (6) Steel Phillips dome head screw M5x8.

    Surface finish:
    (1) Nickel-plated.
    (2-5) Black oxide treated.
    (3-4-6) Standard blue galvanising.

    Key (optional):
    (7) Red plastic key art. J090.
    ATTENTION: The key is not supplied. To be ordered separately.

    Rotation:
    90°.

    Special Requests:
    None.

  • Accessories

Alternative products
New product version: with 6.5 mm triangle
Codice Art. A d D L Q E F G Ht H s(max.) s1 Chiave 3D
J14019.0001 J14019.Z06E00X38L 6,5 M19 22 38 20 0 16 22 31 4 6 2.5 50 J09050.0005
J14019.0002 J14019.Z06E02X38L 6,5 M19 22 38 20 2 16 22 31 4 6 2.5 50 J09050.0005
J14019.0003 J14019.Z06E05X35L 6,5 M19 22 35 20 5 16 22 31 4 6 2.5 50 J09050.0005
J14019.0004 J14019.Z06E09X35L 6,5 M19 22 35 20 9 16 22 31 4 6 2.5 50 J09050.0005
New product version: with 8 mm triangle
Codice Art. A d D L Q E F G Ht H s(max.) s1 Chiave 3D
J14019.0005 J14019.Z08E00X38L 8 M19 22 38 20 0 16 22 31 4 6 2.5 50 J09050.0004
J14019.0006 J14019.Z08E02X38L 8 M19 22 38 20 2 16 22 31 4 6 2.5 50 J09050.0004
J14019.0007 J14019.Z08E05X35L 8 M19 22 35 20 5 16 22 31 4 6 2.5 50 J09050.0004
J14019.0008 J14019.Z08E09X35L 8 M19 22 35 20 9 16 22 31 4 6 2.5 50 J09050.0004
