J140

Kwartslagsluitingen M19

UNIVERSELE SLUITING MET SLEUTEL MET DRIEHOEK

Ver. 10V01-0124

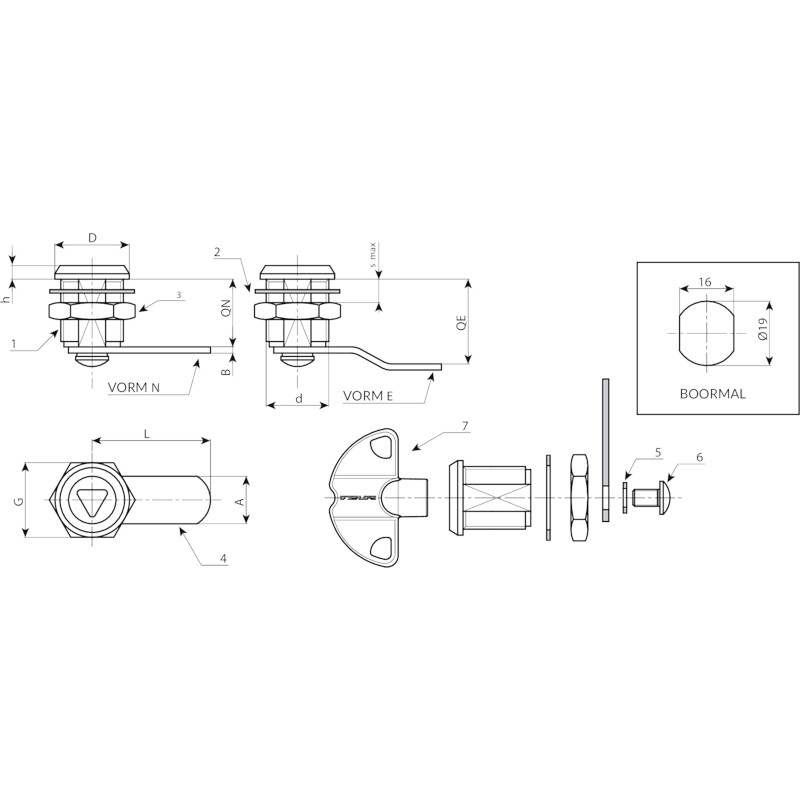

(1) Slotlichaam M19 (stator), rotor in gegoten zamak. Driehoekige sleutel maat 6.
(2) Stalen veerring d. 24x1 met opening 19,4.

(1) Vernikkeld.
(2-5) Gebruineerd.

  • Technische kenmerken

    Materiaal:
    (1) Slotlichaam M19 (stator), rotor in gegoten zamak. Driehoekige sleutel maat 6.
    (2) Stalen veerring d. 24x1 met opening 19,4.
    (3) Zeskant-bevestigingsmoer M19x1 in staal.
    (4) Stalen sluithendel (Qn rechte vorm N - Qe extern gebogen vorm E).
    (5) Stalen conische pakking d. 12x1,5.
    (6) Bevestigingsschroef M5x8 met bolvormige kruiskop in staal.

    Oppervlak:
    (1) Vernikkeld.
    (2-5) Gebruineerd.
    (3-4-6) Standaard blauw verzinkt.

    Sleutel (Optie):
    (7) Rode plastic sleutel art. J090.
    OPGELET: Sleutel niet bijgeleverd. Afzonderlijk te bestellen.

    Rotatie:
    90°.

    Speciale verzoeken:
    Geen.

  • Accessoires

Alternatieve producten
Nieuwe productversie: met driehoek van 6.5 mm
Codice Art. A d D L Q E F G Ht H s(max.) s1 Chiave 3D
J14019.0001 J14019.Z06E00X38L 6,5 M19 22 38 20 0 16 22 31 4 6 2.5 50 J09050.0005
J14019.0002 J14019.Z06E02X38L 6,5 M19 22 38 20 2 16 22 31 4 6 2.5 50 J09050.0005
J14019.0003 J14019.Z06E05X35L 6,5 M19 22 35 20 5 16 22 31 4 6 2.5 50 J09050.0005
J14019.0004 J14019.Z06E09X35L 6,5 M19 22 35 20 9 16 22 31 4 6 2.5 50 J09050.0005
Nieuwe productversie: met driehoek van 8 mm.
Codice Art. A d D L Q E F G Ht H s(max.) s1 Chiave 3D
J14019.0005 J14019.Z08E00X38L 8 M19 22 38 20 0 16 22 31 4 6 2.5 50 J09050.0004
J14019.0006 J14019.Z08E02X38L 8 M19 22 38 20 2 16 22 31 4 6 2.5 50 J09050.0004
J14019.0007 J14019.Z08E05X35L 8 M19 22 35 20 5 16 22 31 4 6 2.5 50 J09050.0004
J14019.0008 J14019.Z08E09X35L 8 M19 22 35 20 9 16 22 31 4 6 2.5 50 J09050.0004
