10

J142

1/4 turn lock - M19

UNIVERSAL LOCK FOR 3 MM WINGED TUBE KEY

Ver. 10V01-0124

(1) Die-cast zamak lock body M19 (stator) and rotor. 3 mm winged tubular key.
(2) Elastic washer d. 24x1 with bore d. 19.4.

(1) Nickel-plated.
(2-5) Black oxide treated.

  • Technical features

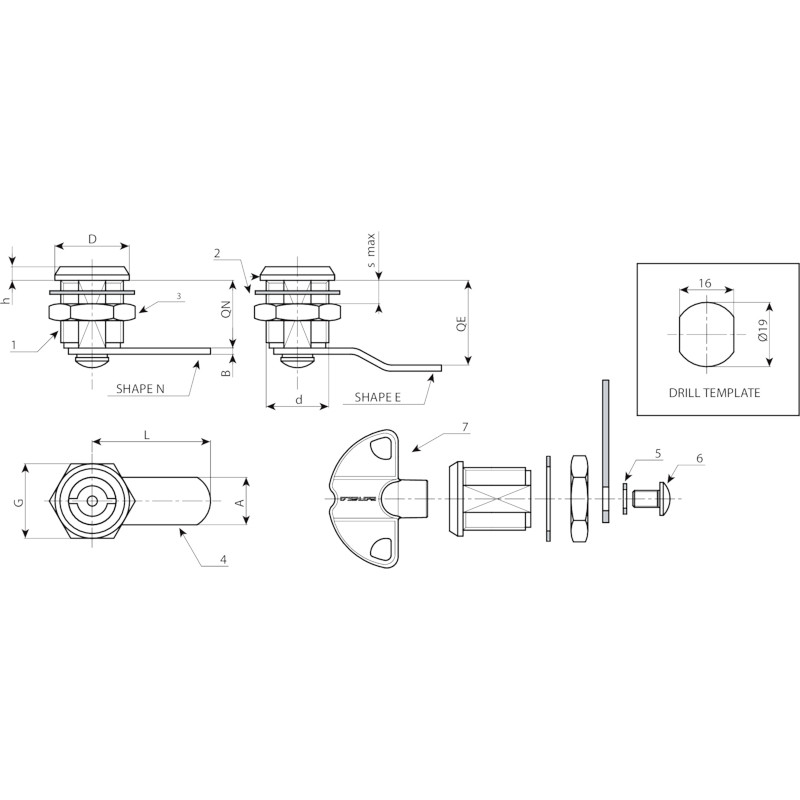

    Materials:
    (1) Die-cast zamak lock body M19 (stator) and rotor. 3 mm winged tubular key.
    (2) Elastic washer d. 24x1 with bore d. 19.4.
    (3) Steel hexagon lock nut M19x1.
    (4) Steel locking lever. (Qn design N flat - Qe design E bent outwards).
    (5) Conical steel elastic washer d. 12x1.5.
    (6) Steel Phillips dome head screw M5x8.

    Surface finish:
    (1) Nickel-plated.
    (2-5) Black oxide treated.
    (3-4-6) Standard blue galvanising.

    Key (optional):
    (7) Red plastic key, Art. J09050.TP0316
    ATTENTION: The key is not supplied. To be ordered separately.

    Rotation:
    90°.

    Special Requests:
    None.

  • Accessories

Alternative products
New product version
Codice Art. A d D L Q E F G Ht H s(max.) s1 Chiave 3D
J14219.0001 J14219.Z03E00X38L 3 M19 22 38 20 0 16 22 31 4 6 2,5 - J09050.TP0316
J14219.0002 J14219.Z03E02X38L 3 M19 22 38 20 2 16 22 31 4 6 2,5 - J09050.TP0316
J14219.0003 J14219.Z03E05X35L 3 M19 22 35 20 5 16 22 31 4 6 2,5 - J09050.TP0316
J14219.0004 J14219.Z03E09X35L 3 M19 22 35 20 9 16 22 31 4 6 2,5 - J09050.TP0316
