J131

1/4 turn lock - M19

UNIVERSAL QUARTER TURN ZAMAK CAM LOCK, M19 THREAD WITH KNOB AND HOLE FOR PADLOCK

Ver. 10V01-0124

(1-4) Die-cast zamak lock body M19 (stator), rotor and knob.
(2) Zamak locking pawl. If pressed, the lock rotates idle. It is possible to insert the bow of a padlock (maximum diameter: 7.5 mm).

Smooth.

  • Technical features

    Materials:
    (1-4) Die-cast zamak lock body M19 (stator), rotor and knob.
    (2) Zamak locking pawl. If pressed, the lock rotates idle. It is possible to insert the bow of a padlock (maximum diameter: 7.5 mm).
    (3) Steel cam (E=0 straight, E=2, 7 formed out, E=-2 formed in).
    (5) Brass hexagon lock nut M19x1.
    (6) Steel locking fork. To be inserted into the special groove to secure the lock to the panel.
    (7) Anti-rotation split washer in black-oxide treated steel.

    Surface finish:
    Smooth.

    Colour:
    (1) Chromed.
    (3-4-6) Galvanised.

    Rotation:
    J131-O:
    90° with clockwise closing movement.
    J131-A:
    90° with counterclockwise closing movement.

    Special Requests:
    Cams available for the locks with E=0:
    L=30 (J131019.ZN30X20O - J131019.ZN30X20A),
    L=41 (J131019.ZN41X20O - J131019.ZN41X20A),
    Cams available for the locks with E=2:
    L=45 (J131019.ZE45X22O - J131019.ZE45X22A),
    Cams available for the locks with E=7:
    L=41 (J131019.ZE41X27O - J131019.ZE41X27A),

Version J131-O: with clockwise rotation.

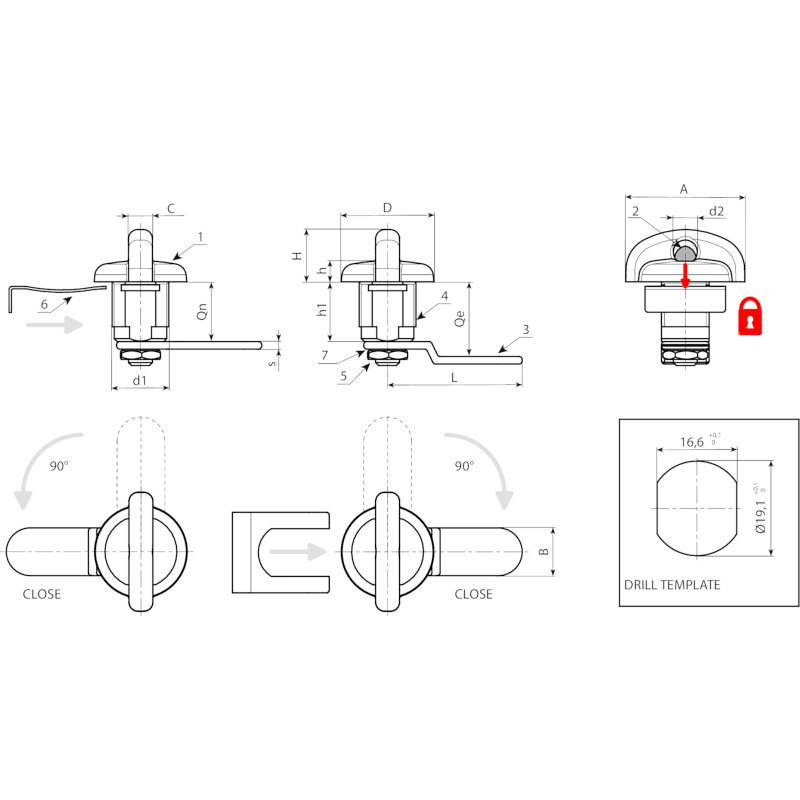

Codice Art. A d d2 D L1 L Q E F G H1 Ht H s s1
J131019.0004 J131019.ZN45X20O 8 M19 8 31,5 40 45 20 0 16 20,5 18 29 7 2 2,5 90
J131019.0002 J131019.ZE41X25O 8 M19 8 31,5 40 45 20 5 16 20,5 18 29 7 2 2,5 95
Version J131-A: with counterclockwise rotation.
Codice Art. A d d2 D L1 L Q E F G H1 Ht H s s1
J131019.0003 J131019.ZN45X20A 8 M19 8 31,5 40 45 20 0 16 20,5 18 29 7 2 2,5 90
J131019.0001 J131019.ZE41X25A 8 M19 8 31,5 40 45 20 5 16 20,5 18 29 7 2 2,5 95
