1/4 turn lock - M19

UNIVERSAL LOCK WITH KNOB

Ver. 10V01-0124

(1) Die-cast zamak lock body M19 (stator), rotor and knob.
(2) Elastic washer d. 24x1 with bore d. 19.4.

(1) Nickel-plated.
(2-5) Black oxide treated.

  • Technical features

    Materials:
    (1) Die-cast zamak lock body M19 (stator), rotor and knob.
    (2) Elastic washer d. 24x1 with bore d. 19.4.
    (3) Galvanised steel hexagon lock nut M19x1.
    (4) Galvanised steel locking lever. (Qn design N flat - Qe design E bent outwards).
    (5) Conical steel elastic washer d. 12x1.5.
    (6) Galvanised steel Phillips dome head screw M5x8.

    Surface finish:
    (1) Nickel-plated.
    (2-5) Black oxide treated.
    (3-4-6) Standard blue galvanising.

    Rotation:
    90°.

    Special Requests:
    None.

Alternative products

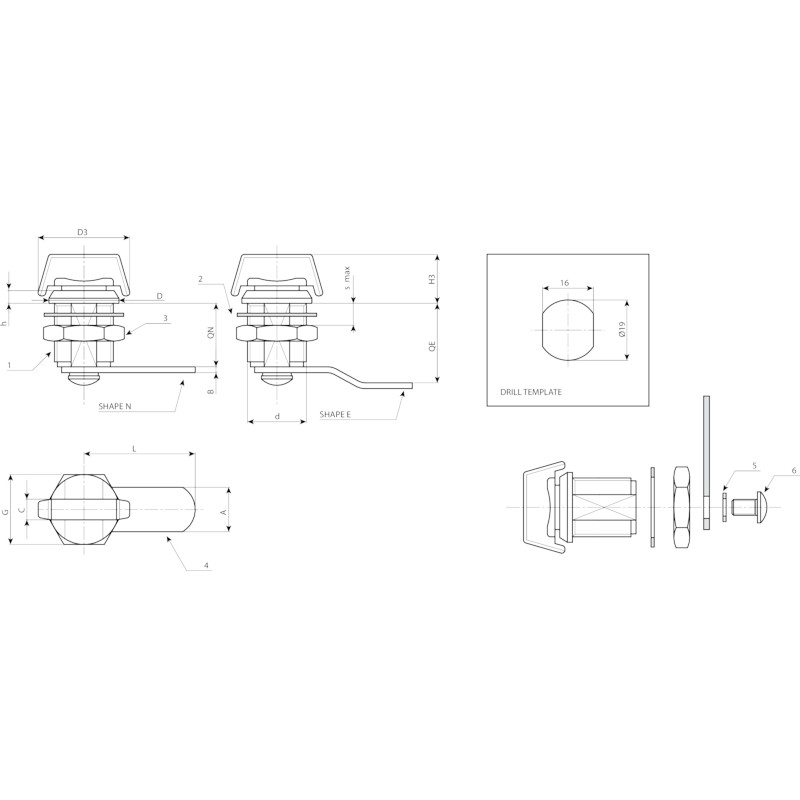

Codice Art. A d D L1 L Q E F G H1 Ht H s(max.) s1 3D
J130019.0004 J130019.ZN30X20 6.5 M19 22 29,5 30 20 0 14 22 15 31 4 6 2.5 57
J130019.0001 J130019.ZE30X25 6.5 M19 22 29,5 30 20 5 14 22 15 31 4 6 2.5 60
