Standard pitch threaded plungers - Integral stainless steel

STAINLESS STEEL COMPLETE KNOB-STYLE SPRING PLUNGER WITH LOCKING POSITION AND STANDARD PITCH THREAD + LOCK NUT

Ver. 22V01-0124

STAINLESS STEEL COMPLETE KNOB-STYLE SPRING PLUNGER WITH LOCKING POSITION AND STANDARD PITCH THREAD + LOCK NUT

W738CIN - STAINLESS STEEL COMPLETE KNOB-STYLE SPRING PLUNGER WITH LOCKING POSITION AND STANDARD PITCH THREAD + LOCK NUT

(1) Stainless steel plunger pin (Aisi 303).
(2) Stainless steel (Aisi 303) locking indexing plunger body.

Satin.

  • Technical features

    Materials:
    (1) Stainless steel plunger pin (Aisi 303).
    (2) Stainless steel (Aisi 303) locking indexing plunger body.
    (3) Stainless steel spring (Aisi 301).
    (4) Turned stainless steel lobed knob (Aisi 303).
    (5) Threaded stainless steel lock nut (Aisi 304) (UNI 5589).

    Surface finish:
    Satin.

    Colour:
    Natural.

    ATTENTION:
    > We recommend an H7 tolerance for the plunger stem bore.
    > The nut is supplied assembled.

    Special Requests:
    On request the plunger can be supplied completely disassembled.
    On request the nut can be supplied disassembled.

Alternative products

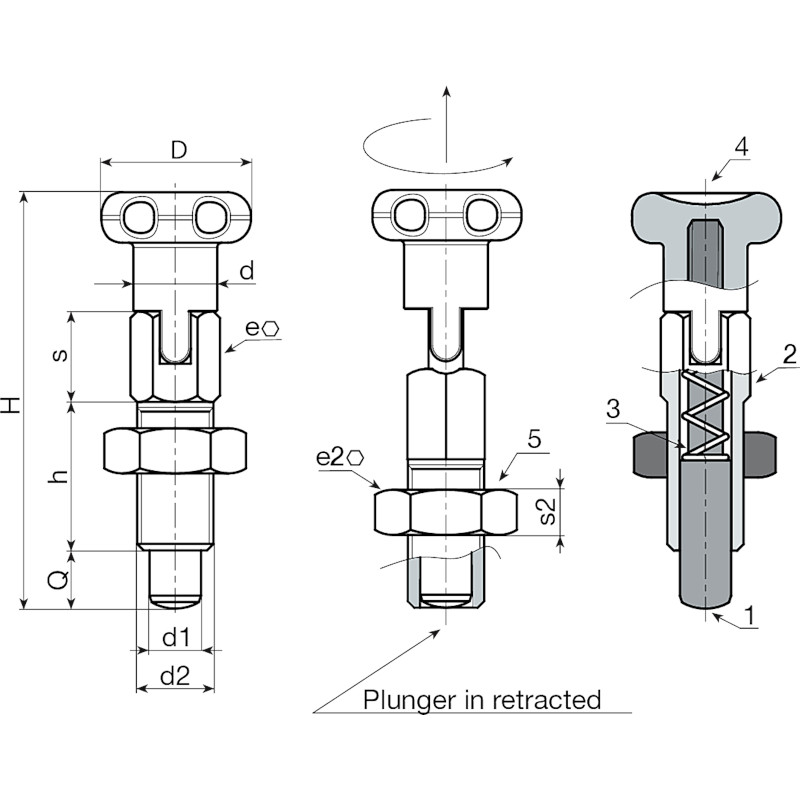

Version W738 CIN - with nut
Codice Art. D d H h e s d2 e2 s2 d1 -0,02 -0,04 Q 3D
W738.0001 W738.I05CIN 18 9 46 16 8 10 M08 13 5 5 5 26
W738.0002 W738.I06CIN 22 11 55 20 10 11 M10 17 6 6 6 71
W738.0003 W738.I08CIN 24 13 66 24 12 14 M12 19 7 8 8 110
