Fine pitch threaded plungers - with knob

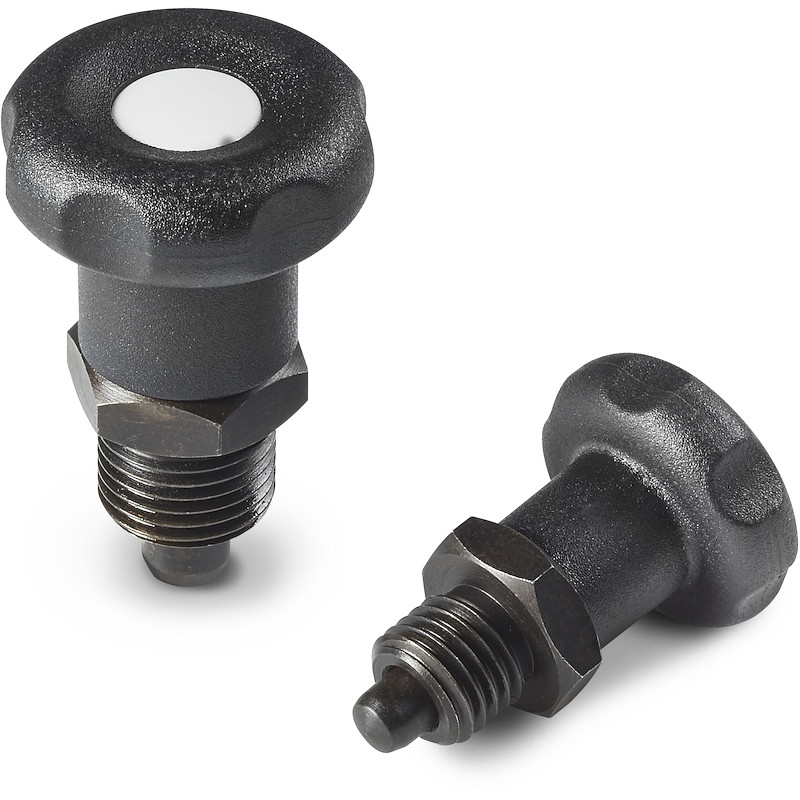

KNOB WITH SHORT STEEL INDEXING PLUNGER

Ver. 22V01-0124

KNOB WITH SHORT STEEL INDEXING PLUNGER

W780 - KNOB WITH SHORT STEEL INDEXING PLUNGER

(4) Reinforced polyamide lobed knob. Cannot be disassembled.Resistant to oils and greases.
(5) Central cap in polyamide. Resistant to oils and greases.

(4-5) Satin.
(1-2-3) Smooth.

  • Technical features

    Materials:
    (4) Reinforced polyamide lobed knob. Cannot be disassembled.Resistant to oils and greases.
    (5) Central cap in polyamide. Resistant to oils and greases.
    W780:
    (3) Galvanised steel spring.
    (2) Threaded high-resistance steel hexagon ring nut.
    (1) Hardened high resistance steel plunger pin.
    (6) Galvanised steel knob fixing screw (ISO 7046).
    W780CIN:
    (3) Stainless steel spring (Aisi 301).
    (2) Threaded stainless steel hexagon ring nut (Aisi 303).
    (1) Stainless steel plunger pin (Aisi 303).
    (6) Galvanised steel knob fixing screw (ISO 7046).

    Surface finish:
    (4-5) Satin.
    (1-2-3) Smooth.

    Colour:
    (4) Black (RAL 9011).
    (5) Grey (RAL 7035).
    W780:
    (1-2) Black-oxide treated.
    W780CIN:
    (1-2) Natural.

    ATTENTION:
    > We recommend an H7 tolerance for the plunger stem bore.

    Special Requests:
    On request and for special quantities the knob can be supplied in the colours indicated in the table [pageTitoloTabellaColori.

Alternative products
Version W780 - black-oxide treated steel

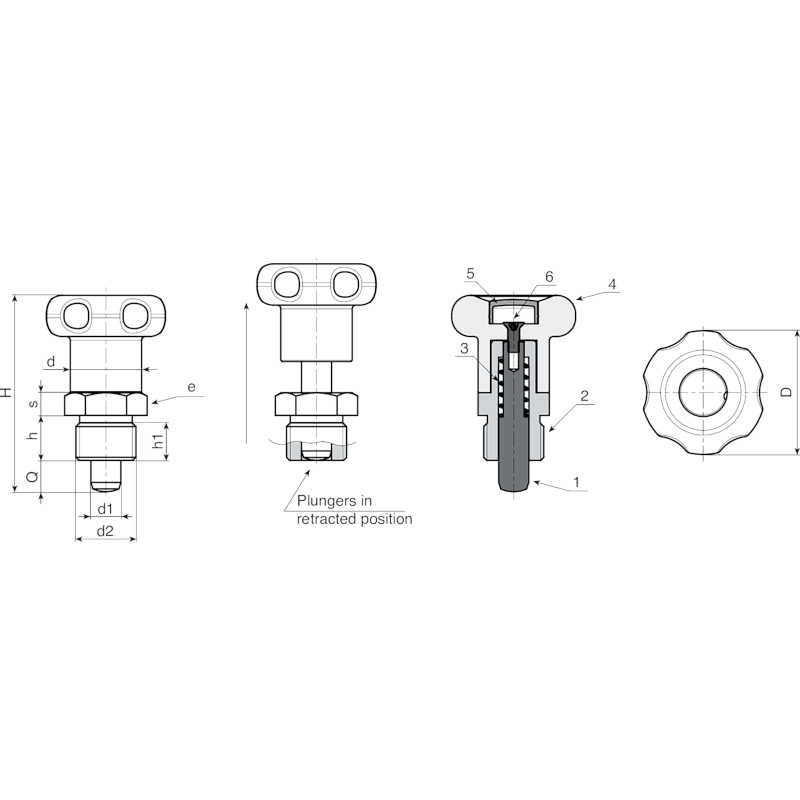

Codice Art. D H h h1 d2 d e s d1 -0,02 -0,04 Q 3D
W780.0003 W780.Q0601 27 43 10 8 M12x1,5 14 17 5 6 6 31
W780.0004 W780.Q0801 33 52 12 10 M16x1,5 19 19 6 8 8 57
Version W780 CIN - stainless steel (Aisi 303)
Codice Art. D H h h1 d2 d e s d1 -0,02 -0,04 Q 3D
W780.0001 W780.I0601CIN 27 43 10 8 M12x1,5 14 17 5 6 6 31
W780.0002 W780.I0801CIN 33 52 12 10 M16x1,5 19 19 6 8 8 57
