Y719

Angle bracket

STEEL ANGLED BALL JOINT WITH SAFETY CATCH - DIN 71802 - CS DESIGN

Ver. 23V01-0124

Y719:
Steel with strength class 5.8.

Turned with low roughness.

  • Technical features

    Materials:
    Y719:
    Steel with strength class 5.8.
    Y719CIN:
    Stainless steel (Aisi 303).

    Surface finish:
    Turned with low roughness.

    Colour:
    Y719:
    Standard blue galvanising.
    Y719CIN:
    Natural.

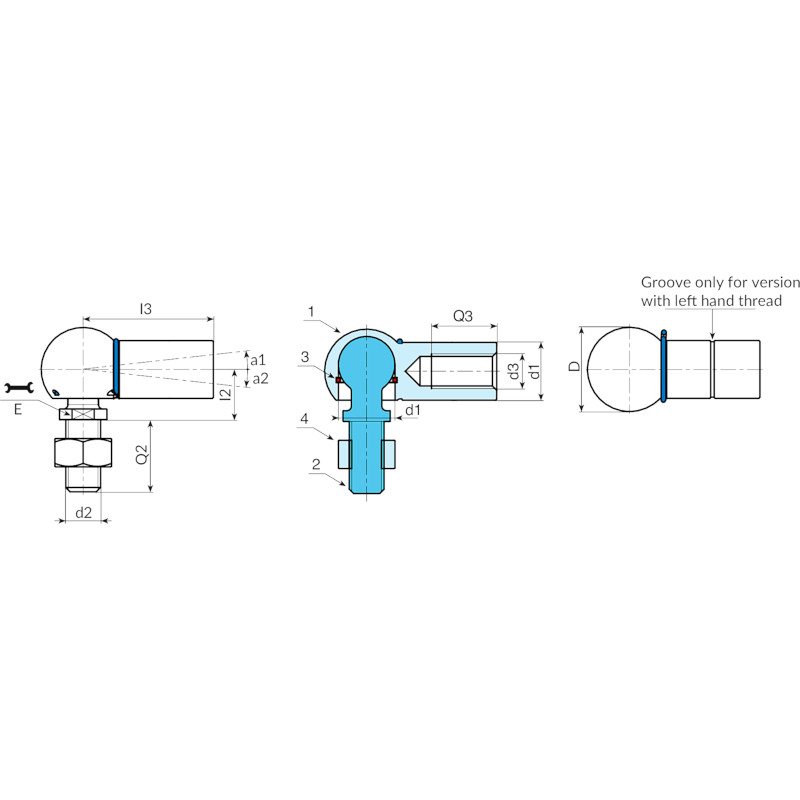

    Inserts:
    (2) Ball insert with milled seat for wrench and threaded stud machined from solid materal (thread tolerance 6g).
    Y719: steel - Y719CIN: stainless steel (Aisi 303).
    (3) Harmonic steel spring ring.
    (4) Nut with threaded hole (DIN 934).
    Y719: steel - Y719CIN: stainless steel (Aisi 304).
    (5) Safety catch to retain the ball with a shaped spring. (Y719: harmonic steel) (Y719CIN: natural stainless steel).
    (1) Ball joint with threaded hole and hole for safety spring.
    Y719: steel - Y719CIN: stainless steel (Aisi 303).
    Standard version:
    Right-hand thread (thread tolerance 6H).
    Version SX (LH):
    Left-hand thread (thread tolerance 6H). Identifiable by the groove on the joint.

    Special requests:
    None.

Alternative products
Version 719 - joint with standard thread
Codice Art. d26g d36H D E I2 I3 Q2 d1#r#h9-H9 Q3 a1 a2
Y71908.0003 Y71908.VZM05 M5 M5 12,8 7 9 22 10,2 8 10,2 18 10 15
Y71910.0003 Y71910.VZM06 M6 M6 14,8 8 11 25 11,5 10 11,5 18 15 25
Y71913.0003 Y71913.VZM08 M8 M8 19,3 11 13 30 14 13 14 18 15 53
Y71916.0003 Y71916.VZM10 M10 M10 24 13 16 35 15,5 16 15,5 18 15 104
Y71919.0003 Y71919.VZM14X1.5 M14X1,5 M14X1,5 30 16 20 45 21,5 19 21,5 18 15 221
Version 719 - joint with LH thread
Codice Art. d26g d36H D E I2 I3 Q2 d1#r#h9-H9 Q3 a1 a2
Y71908.0004 Y71908.VZM05SX M5 M5 SX 12,8 7 9 22 10,2 8 10,2 18 10 15
Y71910.0004 Y71910.VZM06SX M6 M6 SX 14,8 8 11 25 11,5 10 11,5 18 15 25
Y71913.0004 Y71913.VZM08SX M8 M8 SX 19,3 11 13 30 14 13 14 18 15 53
Y71916.0004 Y71916.VZM10SX M10 M10 SX 24 13 16 35 15,5 16 15,5 18 15 104
Y71919.0004 Y71919.VZM14X1.5SX M14X1,5 M14X1,5 SX 30 16 20 45 21,5 19 21,5 18 15 221
Version 719CIN - joint with standard thread - STAINLESS STEEL
Codice Art. d26g d36H D E I2 I3 Q2 d1#r#h9-H9 Q3 a1 a2
Y71908.0001 Y71908.INM05CIN M5 M5 12.8 7 9 22 10,2 8 10,2 18 10 15
Y71910.0001 Y71910.INM06CIN M6 M6 14,8 8 11 25 11,5 10 11,5 18 15 25
Y71913.0001 Y71913.INM08CIN M8 M8 19,3 11 13 30 14 13 14 18 15 53
Y71916.0001 Y71916.INM10CIN M10 M10 24 13 16 35 15,5 16 15,5 18 15 104
Y71919.0001 Y71919.INM14X1.5CIN M14X1,5 M14X1,5 30 16 20 45 21,5 19 21,5 18 15 221
Version 719CIN - joint with LH thread - STAINLESS STEEL
Codice Art. d26g d36H D E I2 I3 Q2 d1#r#h9-H9 Q3 a1 a2
Y71908.0002 Y71908.INM05SXCIN M5 M5 SX 12,8 7 9 22 10,2 8 10,2 18 10 15
Y71910.0002 Y71910.INM06SXCIN M6 M6 SX 14,8 8 11 25 11,5 10 11,5 18 15 25
Y71913.0002 Y71913.INM08SXCIN M8 M8 SX 19,3 11 13 30 14 13 14 18 15 53
Y71916.0002 Y71916.INM10SXCIN M10 M10 SX 24 13 16 35 15,5 16 15,5 18 15 104
Y71919.0002 Y71919.INM14X1.5SXCIN M14X1,5 M14X1,5 SX 30 16 20 45 21,5 19 21,5 18 15 221
