Angle bracket

STEEL ANGLED BALL JOINT - DIN 71802 - C DESIGN

Ver. 23V01-0124

Steel with strength class 5.8.

Turned with low roughness.

  • Technical features

    Materials:
    Steel with strength class 5.8.

    Surface finish:
    Turned with low roughness.

    Colour:
    Standard blue galvanising.

    Inserts:
    (1) Steel ball joint with threaded hole.
    (3) Harmonic steel spring ring.
    (4) Steel nut with threaded hole (DIN 934).
    (2) Ball insert with milled seat for wrench and threaded stud machined from solid steel (thread tolerance 6g).
    Standard version:
    Right-hand thread (thread tolerance 6H).
    Version SX (LH):
    Left-hand thread (thread tolerance 6H). Identifiable by the groove on the joint.

    Special requests:
    None.

Alternative products
Version 718 - joint with standard thread

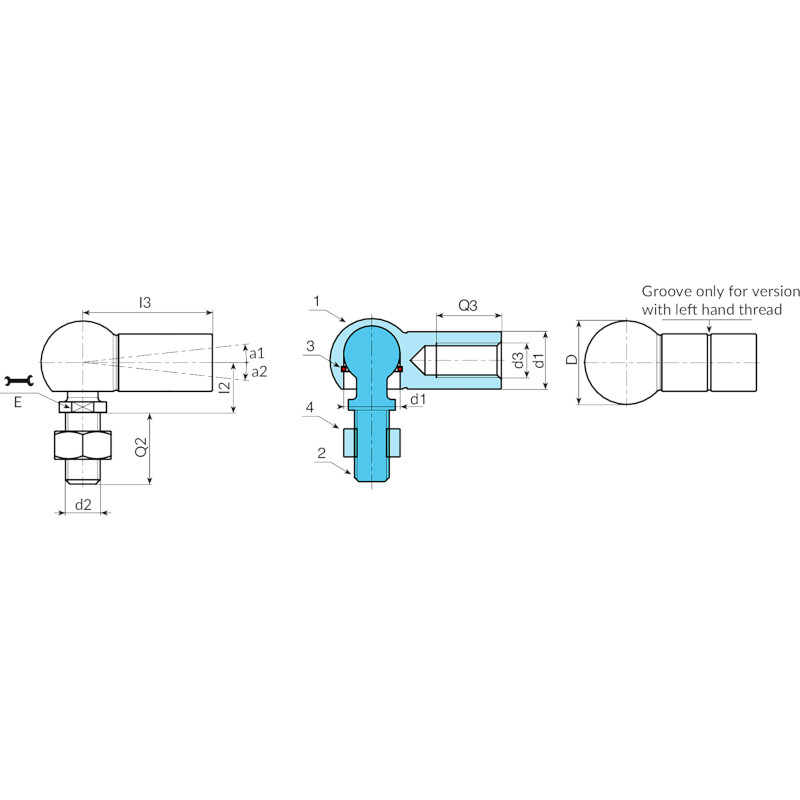

Codice Art. d26g d36H D E I2 I3 Q2 d1#r#h9-H9 Q3 a1 a2
- Y71808.VZM05 M5 M5 12,8 7 9 22 10,2 8 10,2 18 18 15
- Y71810.VZM06 M6 M6 14,8 8 11 25 11,5 10 11,5 18 18 25
- Y71813.VZM08 M8 M8 19,3 11 13 30 14 13 14 18 18 53
- Y71816.VZM10 M10 M10 24 13 16 35 15,5 16 15,5 18 18 104
- Y71819.VZM14X1.5 M14X1,5 M14X1,5 30 16 20 45 21,5 19 21,5 - 15 221
Version 718 - joint with LH thread
Codice Art. d26g d36H D E I2 I3 Q2 d1#r#h9-H9 Q3 a1 a2
- Y71808.VZM05SX M5 M5 SX 12.8 7 9 22 10,2 8 10,2 18 18 15
- Y71810.VZM06SX M6 M6 SX 14.8 8 11 25 11,5 10 11,5 18 18 25
- Y71813.VZM08SX M8 M8 SX 19,3 11 13 30 14 13 14 18 18 53
- Y71816.VZM10SX M10 M10 SX 24 13 16 35 15,5 16 15,5 18 18 104
- Y71819.VZM14X1.5SX M14X1,5 M14X1,5 SX 30 16 20 45 21,5 19 21,5 18 18 221
