08

H774

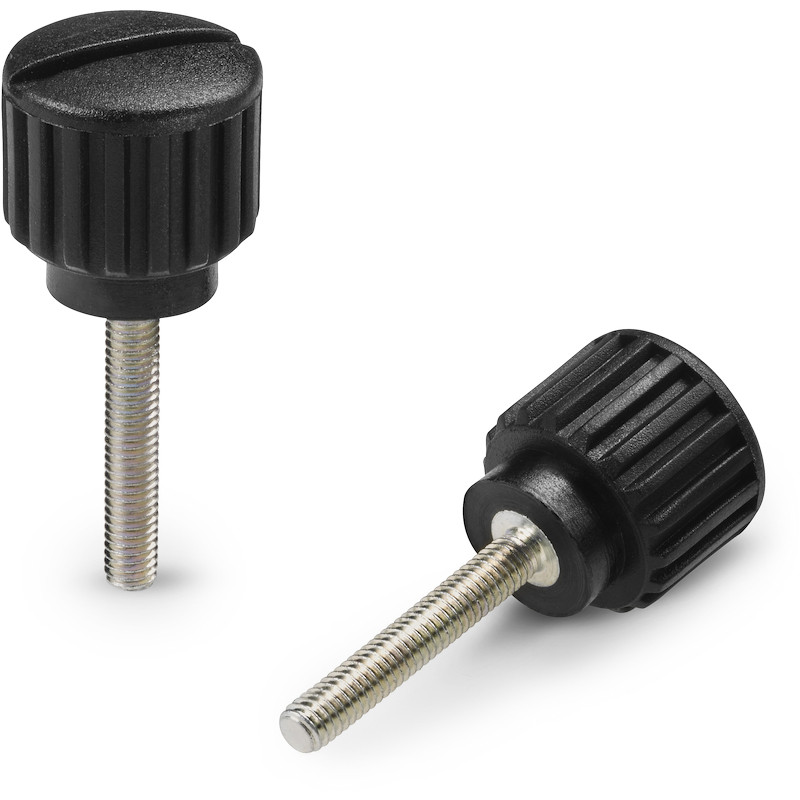

Knurled knob with stud

KNURLED KNOB WITH SLOT END AND THREADED STUD

Ver. 08V01-0124

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Inserts:
    Galvanised steel threaded stud (thread tolerance 6g).

    Special Requests:
    Upon request and for special quantities inserts can be supplied with customised lengths.
    Upon request and for special quantities inserts can be supplied in different materials.
    Upon request and for special quantities available in the colours indicated in the chart [pageTitoloTabellaColori.

Alternative products

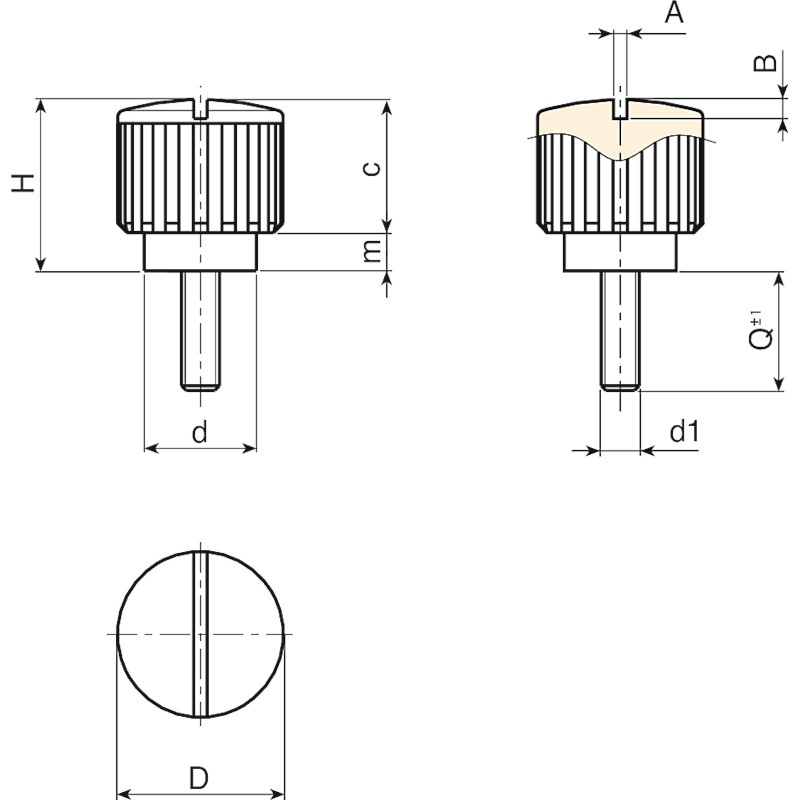

Codice art. D H d m c A B LM d16g Q
H77418.0003 H77418.TM04X3001 17.5 18 12 4 14 1.2 1.5 50 M4 30 7.5
H77418.0006 H77418.TM05X3001 17.5 18 12 4 14 1.2 1.5 60 M5 30 9
H77418.0009 H77418.TM06X3001 17.5 18 12 4 14 1.2 1.5 60 M6 30 11

LM = maximum mouldable length.
Threaded stud length on request, with a minimum quantity of 250 pieces.
