08

H771

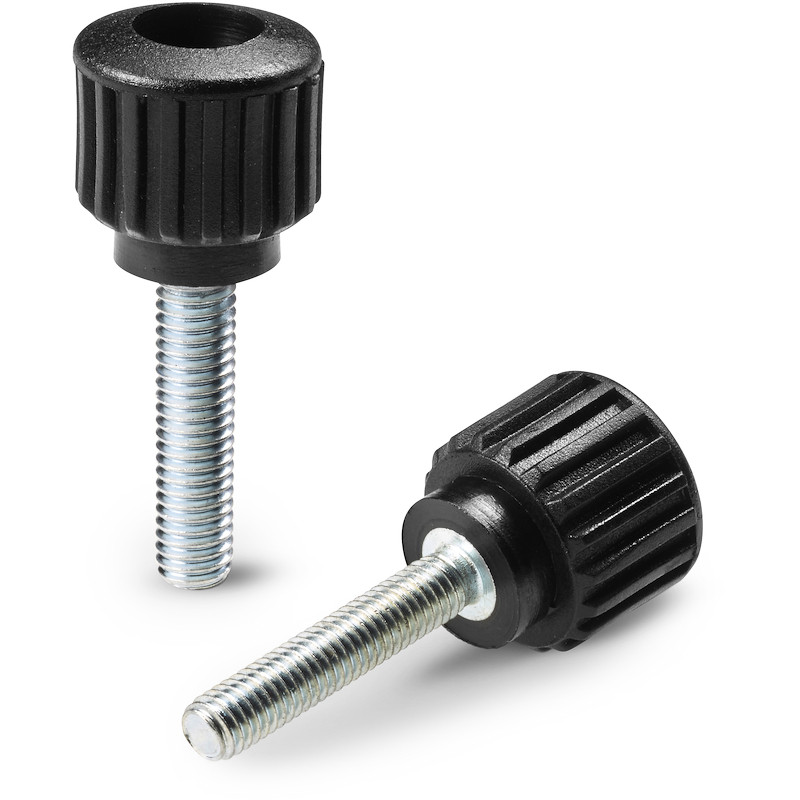

Knurled knob with stud

KNURLED KNOB WITH THREADED STUD

Ver. 08V01-0124

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Inserts:
    Galvanised steel threaded stud (thread tolerance 6g).

    Special Requests:
    Upon request and for special quantities inserts can be supplied with customised lengths.
    Upon request and for special quantities inserts can be supplied in different materials.
    Upon request and for special quantities available in the colours indicated in the chart [pageTitoloTabellaColori.

Alternative products

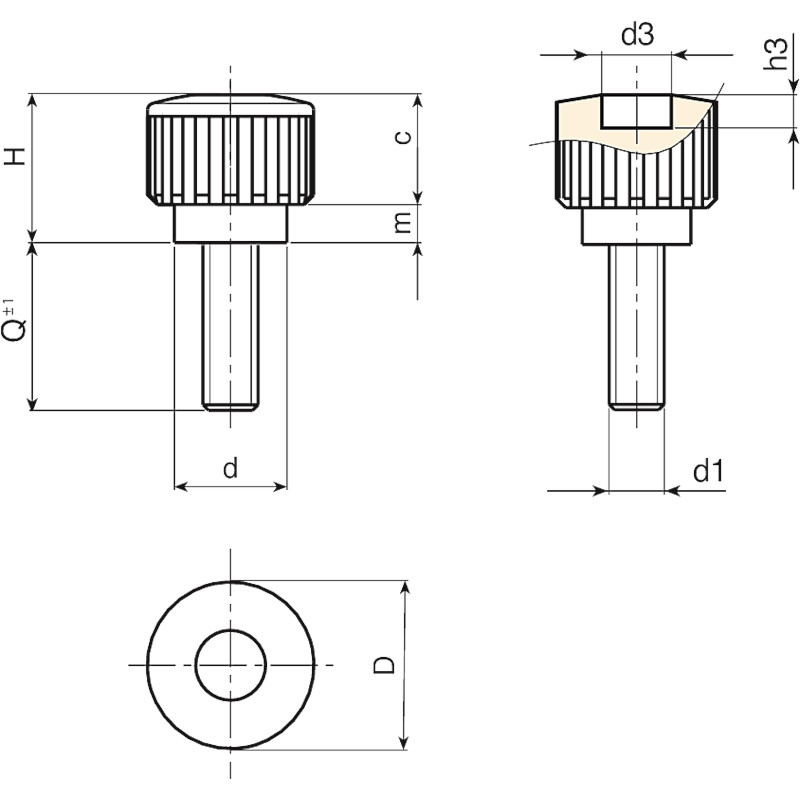

Codice art. D H d m c d3 h3 LM d16g Q
H77118.0001 H77118.TM04X1001 17.5 17.5 12 4 13.5 9 5 50 M4 10 6
H77118.0005 H77118.TM04X1601 17.5 17.5 12 4 13.5 9 5 50 M4 16 6,5
H77118.0008 H77118.TM04X3001 17.5 17.5 12 4 13.5 9 5 50 M4 30 8
H77118.0010 H77118.TM05X1001 17.5 17.5 12 4 13.5 9 5 60 M5 10 6,5
H77118.0012 H77118.TM05X1601 17.5 17.5 12 4 13.5 9 5 60 M5 16 7
H77118.0013 H77118.TM05X2001 17.5 17.5 12 4 13.5 9 5 60 M5 20 8
H77118.0024 H77118.TM06X1601 17.5 17.5 12 4 13.5 9 5 60 M6 16 8,5
H77118.0026 H77118.TM06X2001 17.5 17.5 12 4 13.5 9 5 60 M6 20 9

LM = maximum mouldable length.
Threaded stud length on request, with a minimum quantity of 250 pieces.
