H766CIN

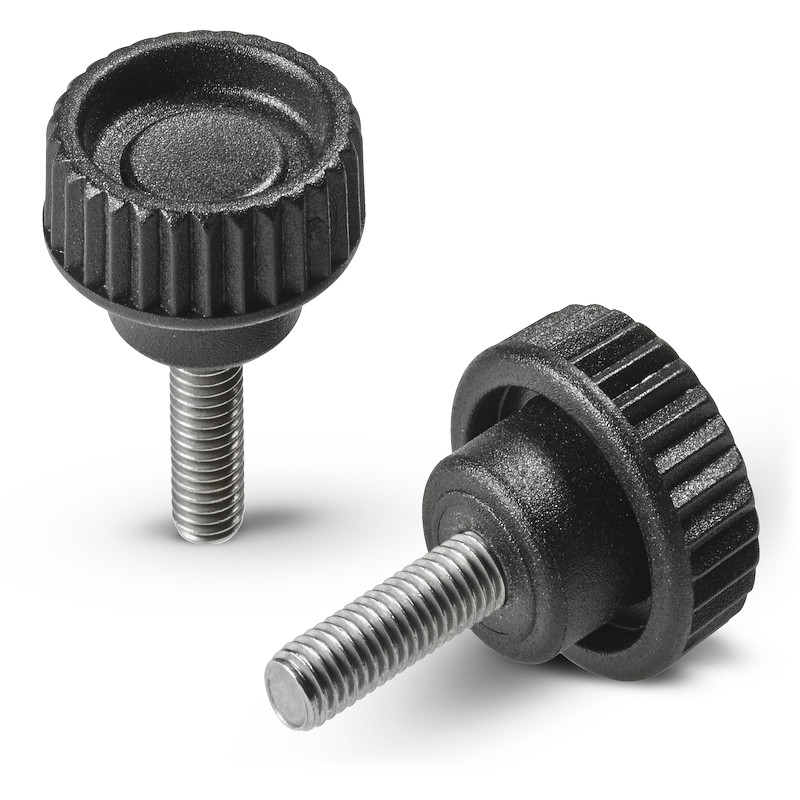

Knurled knob with stud

KNURLED HOLLOW HANDWHEEL WITH STAINLESS STEEL THREADED STUD

Ver. 08V01-0124

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Inserts:
    Stainless steel threaded stud (Aisi 303) (thread tolerance 6g).

    Special Requests:
    Upon request and for special quantities inserts can be supplied with customised lengths.
    Upon request and for special quantities available in the colours indicated in the chart [pageTitoloTabellaColori.

Alternative products

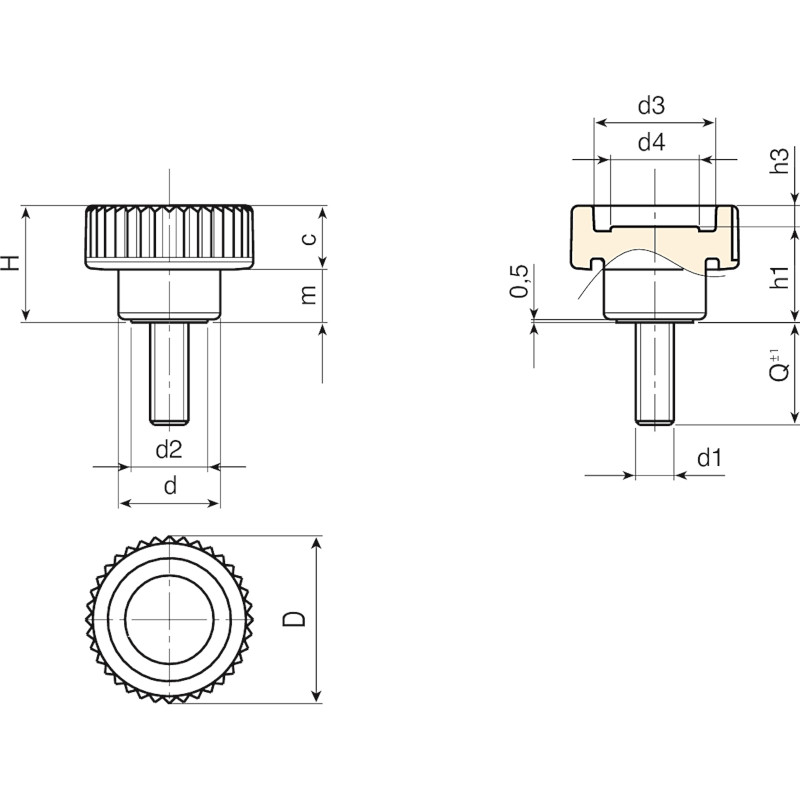

Codice art. D H d m c d2 d3 d4 h1 h3 LM d16g Q
H76615.0017 H76615.TM05X1501CIN 15 10.5 10 4.5 6 8 10 7.5 8.5 2 40 M5 15 -
H76621.0006 H76621.TM05X1601CIN 21 15 13 6.5 8.5 9.5 15 10.5 12.5 2.5 40 M5 16 9.5
H76621.0019 H76621.TM06X1501CIN 21 15 13 6.5 8.5 9.5 15 10.5 12.5 2.5 40 M6 15 -
H76626.0010 H76626.TM06X2001CIN 26 18 16 8.5 9.5 12 19 13 15 3 80 M6 20 -
H76626.0032 H76626.TM08X2001CIN 26 18 16 8.5 9.5 12 19 13 15 3 80 M8 20 16.5
H76633.0017 H76633.TM08X4001CIN 32 23 20 10.5 12.5 15 23 16 18 5 80 M8 40 36
H76640.0009 H76640.TM10X2001CIN 40 28 25 12.5 15.5 18 28 21 22 6 100 M10 20 -
H76640.0018 H76640.TM12X3001CIN 40 28 25 12.5 15.5 18 28 21 22 6 100 M12 30 -

LM = maximum mouldable length.
Threaded stud length on request, with a minimum quantity of 250 pieces.
