H753

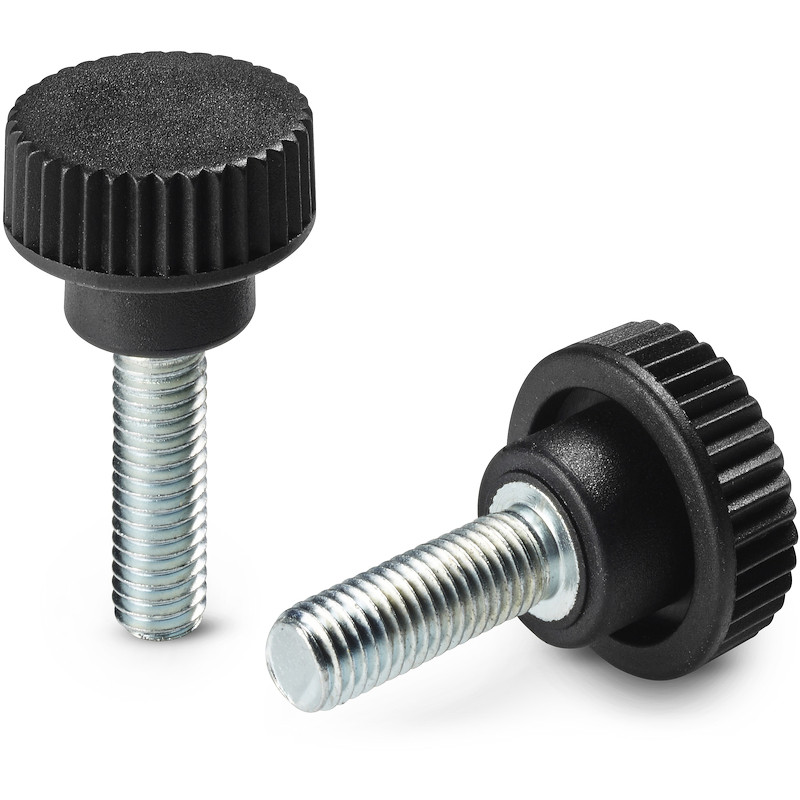

Knurled knob with stud

KNURLED SOLID HANDWHEEL WITH THREADED STUD

Ver. 08V01-0124

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Inserts:
    Galvanised steel threaded stud (thread tolerance 6g).

    Special Requests:
    Upon request and for special quantities inserts can be supplied with customised lengths.
    Upon request and for special quantities inserts can be supplied in different materials.
    Upon request and for special quantities available in the colours indicated in the chart [pageTitoloTabellaColori.

Alternative products

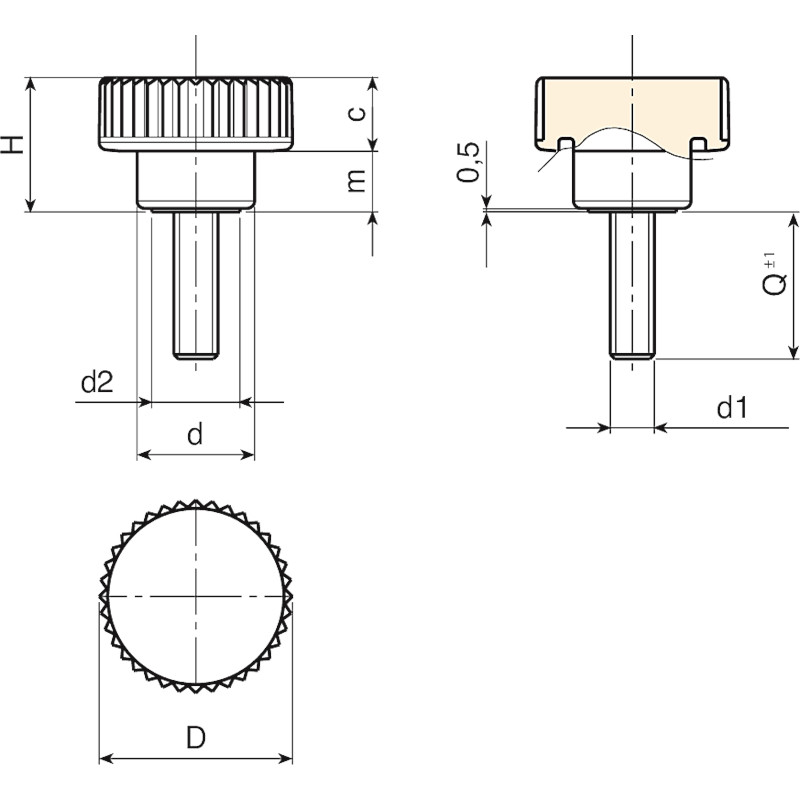

Codice art. D H d m c d2 LM d16g Q
H75326.0004 H75326.TM05X2001 26 18 16 8.5 9.5 12 50 M5 20 10
H75326.0008 H75326.TM06X2001 26 18 16 8.5 9.5 12 50 M6 20 13
H75326.0009 H75326.TM06X2501 26 18 16 8.5 9.5 12 50 M6 25 14
H75326.0012 H75326.TM08X2001 26 18 16 8.5 9.5 12 50 M8 20 20
H75326.0014 H75326.TM08X3001 26 18 16 8.5 9.5 12 50 M8 30 22

LM = maximum mouldable length.
Threaded stud length on request, with a minimum quantity of 250 pieces.
