08

H172

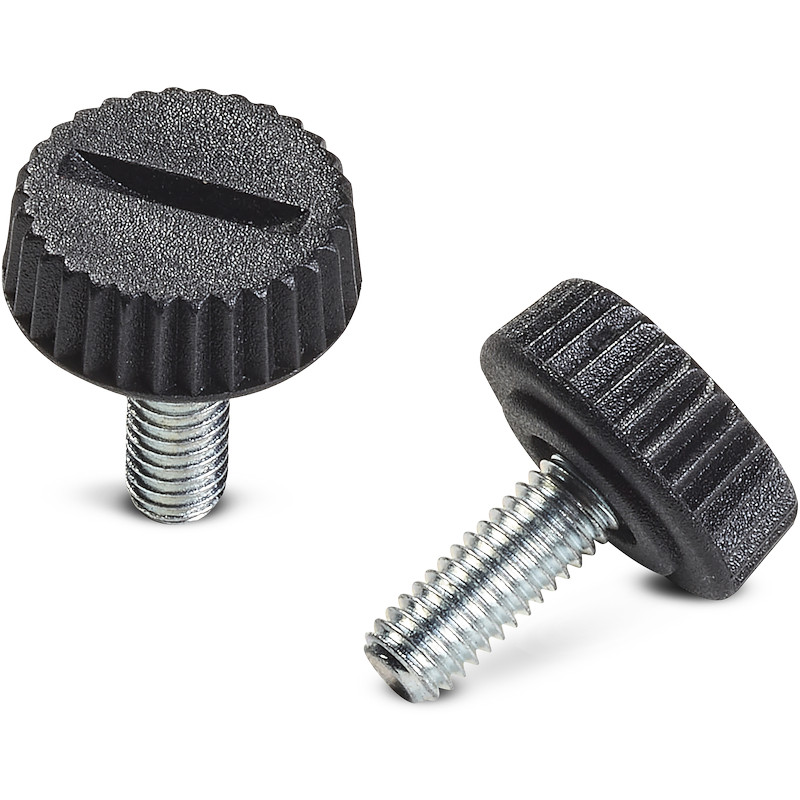

Knurled knob with stud

KNURLED KNOB WITH SLOT END AND THREADED STUD

Ver. 08V01-0124

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Inserts:
    Galvanised steel threaded stud (thread tolerance 6g).

    Special Requests:
    Upon request and for special quantities inserts can be supplied with customised lengths.
    Upon request and for special quantities inserts can be supplied in different materials.
    Upon request and for special quantities available in the colours indicated in the chart [pageTitoloTabellaColori.

Alternative products

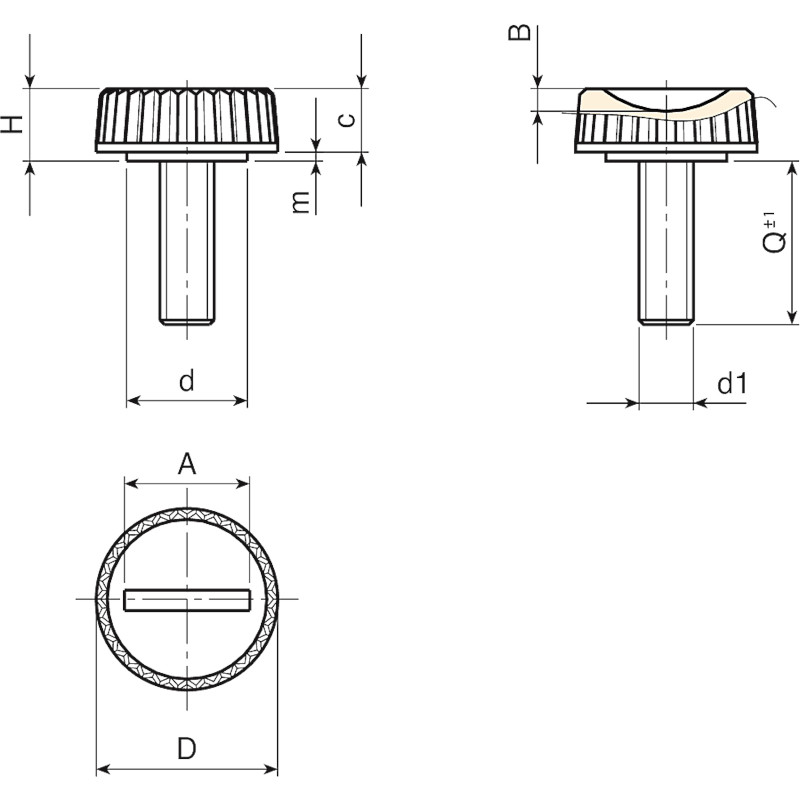

Codice art. D H d m c A B LM d16g Q
H17220.0003 H17220.TM06X1501 20 8 13,5 1 7 14 2,5 39 M6 15 7

LM = maximum mouldable length.
