08

H759

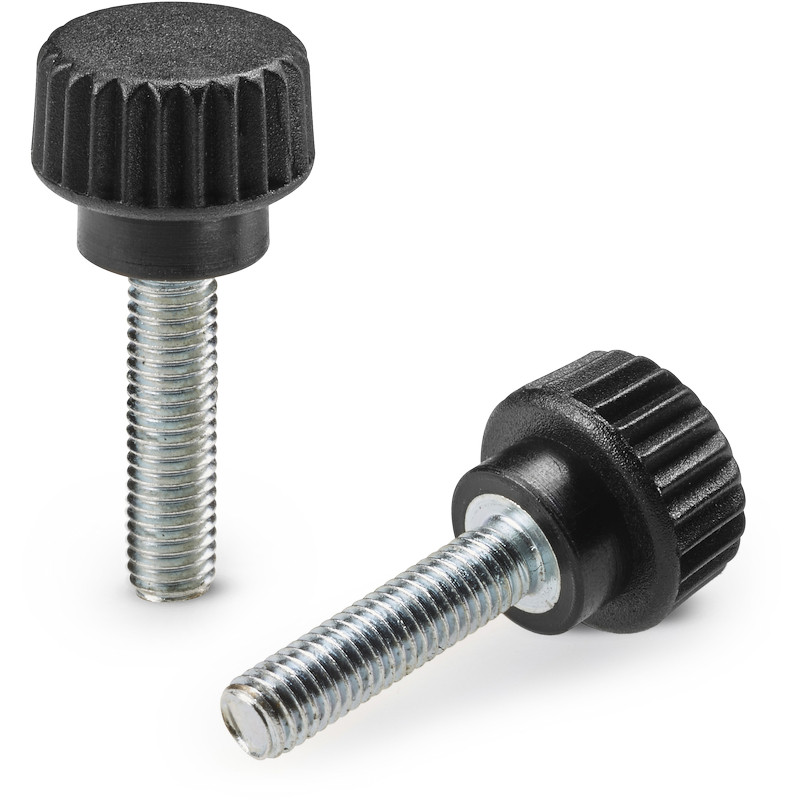

Knurled knob with stud

KNURLED HANDWHEEL WITH HUB AND THREADED STUD

Ver. 08V01-0124

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Inserts:
    Galvanised steel threaded stud (thread tolerance 6g).

    Special Requests:
    Upon request and for special quantities inserts can be supplied with customised lengths.
    Upon request and for special quantities inserts can be supplied in different materials.
    Upon request and for special quantities available in the colours indicated in the chart [pageTitoloTabellaColori.

Alternative products

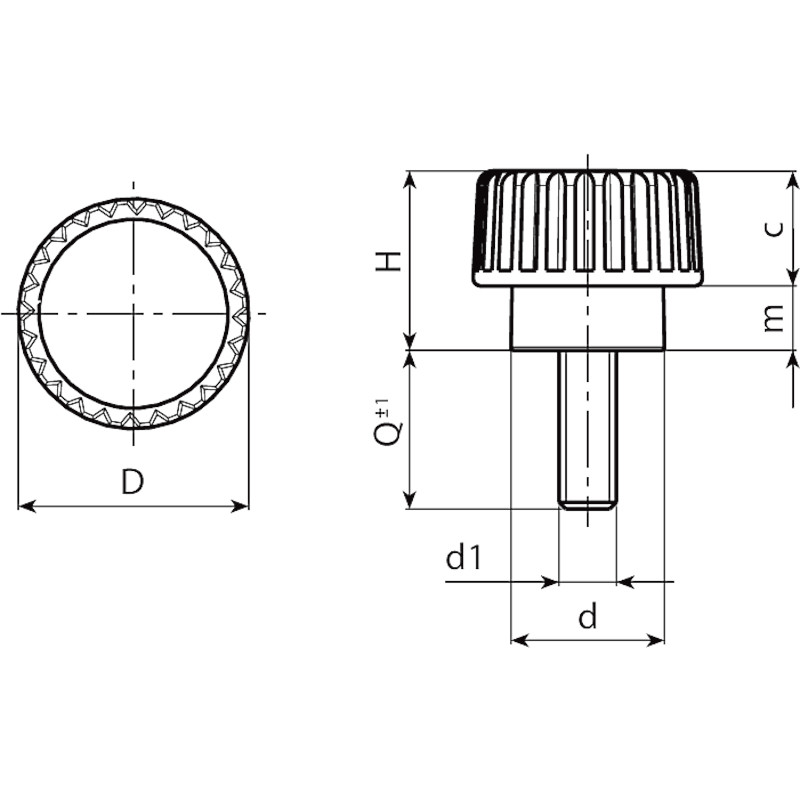

Codice art. D H d m c LM d16g Q
- H75915.TM03X1101 15 11,5 10,5 4 7,5 70 M3 11 3
- H75915.TM03X2401 15 11,5 10,5 4 7,5 70 M3 24 3,5
- H75915.TM04X1001 15 11,5 10,5 4 7,5 70 M4 10 3,5
- H75915.TM04X2001 15 11,5 10,5 4 7,5 70 M4 20 4
- H75915.TM04X3001 15 11,5 10,5 4 7,5 70 M4 30 4,5
- H75915.TM05X1001 15 11,5 10,5 4 7,5 70 M5 10 4
- H75915.TM05X1601 15 11,5 10,5 4 7,5 70 M5 16 4,5
- H75915.TM05X2001 15 11,5 10,5 4 7,5 70 M5 20 5,5
- H75915.TM05X3001 15 11,5 10,5 4 7,5 70 M5 30 6,5
- H75915.TM06X1001 15 11,5 10,5 4 7,5 70 M6 10 5
- H75915.TM06X1601 15 11,5 10,5 4 7,5 70 M6 16 6
- H75915.TM06X2001 15 11,5 10,5 4 7,5 70 M6 20 7,5

LM = maximum mouldable length.
Threaded stud length on request, with a minimum quantity of 250 pieces.
