K960

Knobs with seat for gravity indicator

KNURLED CONTROL KNOB FOR INDICATOR K650-50

Ver. 11V01-0124

Reinforced polyamide. Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide. Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Mountable indicator:
    Gravity position indicator type K650050. The indicator can be only used in a vertical position (horizontal machine axis). The indicator must be purchased separately. For further information see article K650 [pageFAM_K650-Codice.

    Insert:
    Galvanised steel insert with smooth through bore (tolerance H10).

    Fixing method:
    The knob is fixed to the shaft by means of the threaded radial hole (d4) (grub screw not supplied).

    Indicator fixing method:
    Fix the indicator with a threaded grub screw M4 (not supplied) to be inserted in the hole d6.

    Special Requests:
    Upon request and for a minimum of 50 pieces inserts can be supplied with hole d1 with tolerance H7 and black oxide treated finish. Add letters ZB to the standard code. Example: K961078.TD0801ZB.
    Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
    Upon request and for special quantities inserts can be supplied in different materials.
    Upon request the control knob can be supplied with a grey ring. The code for this product is: K96178.TD080116.

  • Accessories

Alternative products

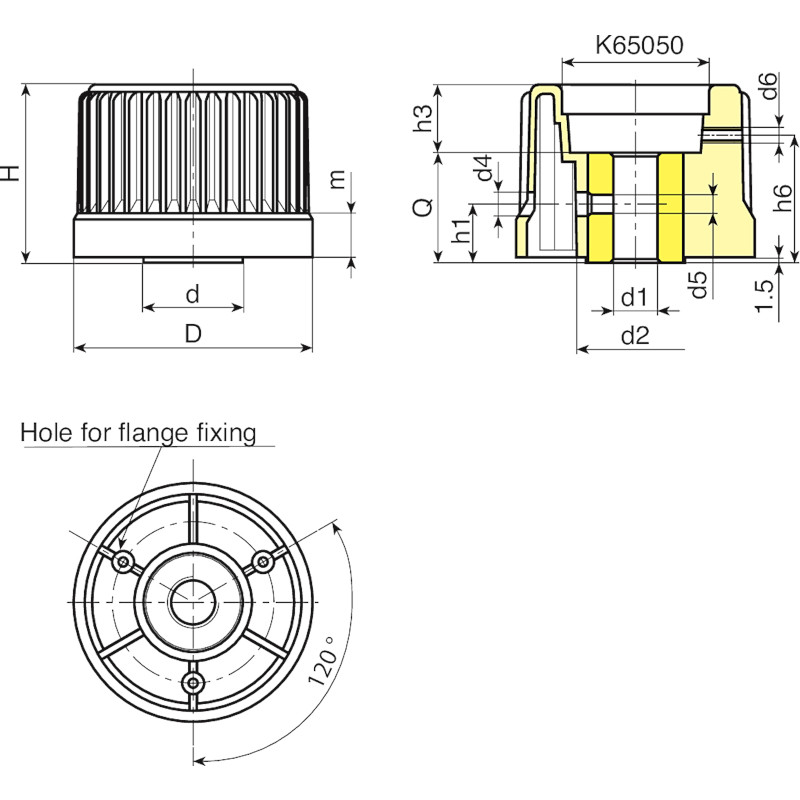

Codice art. D H m d d2 d4 d5 d6 h1 h3 h6 Dm d1H10 Q
K96078.0002 K96078.TD0801 78 56 15 31 36 6.5 M6 M4 18 24 38.5 18 8 32 230

Attention: For a minimum of 50 pieces the diameter d1 can be customised (hole tolerance H10 galvanised and H7 black-oxide treated).
Dm = Maximum obtainable diameter for subsequent machining (widening).
