K900

Control handwheel with seat for gravity indicator

SOLID CONTROL HANDWHEEL WITH INDICATOR SEAT

Ver. 11V01-0124

Reinforced and stabilized polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced and stabilized polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Insert:
    Galvanised steel insert with smooth through bore (tolerance H10).

    Mountable indicator:
    Use gravity position indicators models K650 or K660. The indicator can be only used in a vertical position (horizontal machine axis). The indicator and the corresponding grub screw d7 must be purchased separately. For further information on the indicators see the pages of articles K650 and K660 [pageFAM_K650-Codiceand pageFAM_K660-Codice.
    Resistant to oils and greases.
    (*) With adapter KS08050.T01 you can mount the indicator K650050.

    Fixing method:
    For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue [pageFAM_NT10-Codice.

    Special Requests:
    Upon request and for a minimum of 50 pieces inserts can be supplied with hole d1 with tolerance H7 and black oxide treated finish. Add letters ZB to the standard code. Example: K900100.T050D1001PZB.
    Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
    Upon request and for special quantities inserts can be supplied in different materials/with different coatings.
    The indicator must be ordered separately.
    Upon request and for special quantities it is possible to change the indicator seat.

    Combinations Diameters/Indicators:
    d5=50 --> K650050
    d5=80 --> K650080 or K660080

  • Accessories

Alternative products

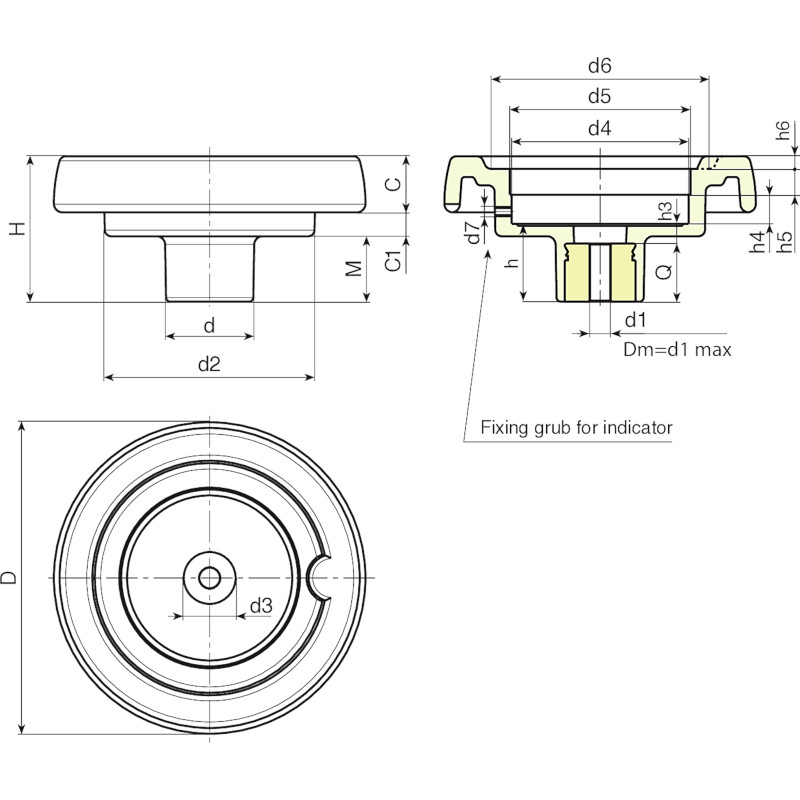

Codice art. D H d d2 M C C1 d3 d4 d5 d6 d7 h h3 h4 h5 h6 Dm d1 Q
K900087.0004 K900087.T050P5,801P 86 53 32 62 21 17 15 20 50.8 50 63 M6 26.5 6.5 11.5 12 3 12 5.8 20 155
K900100.0003 K900100.T050P6,801P 99 55.5 32 63 23.5 20.5 11.5 20 50.8 50 68 M6 29 9 11.5 12 3.5 12 6.8 20 170
K900130.0005 K900130.T080P6,801P 129 64.5 42 100 27.5 23 14 29 85.7 80* 90 M6 34 10 13.5 12.5 5 20 6.8 24 350
K900150.0002 K900150.T080P6,801P 149 69 42 101 31 25.5 12.5 29 85.7 80* 106 M6 37 9 13.5 12.5 6.5 20 6.8 28 430
K900175.0002 K900175.T080P6,801P 175 72 40 115 28.5 32 11.5 25 85.7 80* 126.5 M6 38 10 12.5 14 8 20 6.8 28 650
K900200.0001 K900200.T080P6,801P 199 71 46 137 24 32 15 29 85,7 80* 144 M6 34 11 13.5 12.5 10 22 6,8 23 810

Attention: With a minimum of 50 pieces the diameter d1 can be produced on request (tolerance hole H10 galvanized or black-oxide H7).
Dm = It’s possible to increase the hole, by boring, until Dm (enlarge).
