11

K905

Control handwheel with seat for gravity indicator

SOLID CONTROL HANDWHEEL WITH INDICATOR SEAT, REVOLVING, FOLDING HANDLE AND LOCKING KNOB

Ver. 11V01-0124

Reinforced and stabilized polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced and stabilized polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Insert:
    Galvanised steel insert with smooth through bore (tolerance H10).

    Mountable indicator:
    Use gravity position indicators models K650 or K660. The indicator can be only used in a vertical position (horizontal machine axis). The indicator and the corresponding grub screw d7 must be purchased separately. For further information on the indicators see the pages of articles K650 and K660 [pageFAM_K650-Codiceand pageFAM_K660-Codice.
    (*) With adapter KS08050.T01 you can mount the indicator K650050.

    Lateral insert:
    Brass insert with threaded through hole.

    Lateral handle:
    Revolving handle art. M136 [pageFAM_M136-Codice.

    Locking handwheel:
    Cylindrical handwheel G793-36 with threaded stud [pageFAM_G793-Codice. Black (RAL 9011). ATTENTION: dimension Q2 of the locking handwheel must be chosen by the customer based on the dimensions of the machinery on which the handwheel is applied. For model K905-130 the locking handwheel is replaced by the wing nut L751-32 [pageFAM_L751-Codice.

    Fixing method:
    For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue [pageFAM_NT10-Codice.

    Special Requests:
    Upon request and for a minimum of 50 pieces inserts can be supplied with hole d1 with tolerance H7 and black oxide treated finish. Add letters ZB to the standard code. Example: K905130.T080D1001PZB.
    Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
    Upon request and for special quantities inserts can be supplied in different materials/with different coatings.
    The indicator must be ordered separately.
    Upon request and for special quantities it is possible to change the indicator seat.

    Combinations Diameters/Indicators:
    d5=50 --> K650050
    d5=80 --> K650080 or K660080

  • Accessories

Alternative products

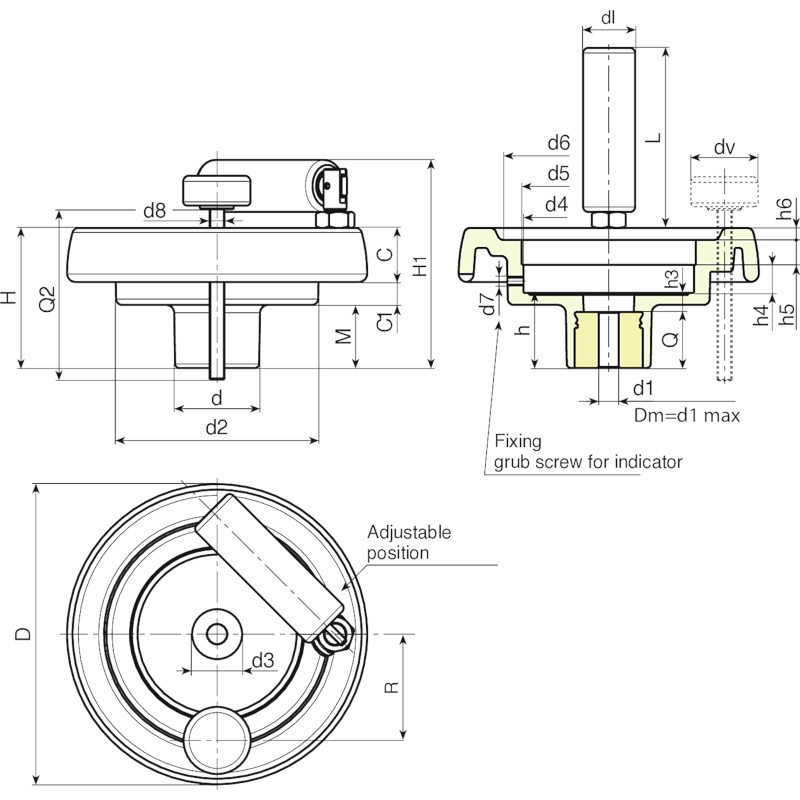

Codice art. D H H1 d d2 M C C1 d3 d4 d5 d6 d7 h h3 h4 h5 h6 R d8 dl L Dm d1 Q
K905130.0002 K905130.T080P6.801P 130 65.5 94 42 98 28.5 23,5 13,5 29 85.2 80* 90 M6 34 10 13.5 12.5 5 54 M8 25 76 20 6.8 24 430
K905150.0003 K905150.T080P6.801P 149 69 104 42 101 31 25.5 12.5 29 85.2 80* 106 M6 37 9 13.5 12.5 6.5 57 M8 26 89 20 6.8 28 615
K905175.0006 K905175.T080P6.801P 174 73 108 41 114 30 31.5 11.5 26 85.2 80* 126 M6 39 11 13.5 12.5 8 60 M8 26 89 20 6.8 28 835
K905200.0001 K905200.T080P6.801P 201 71 106 46 136 24,5 32 14,5 30 85.2 80* 145 M6 35 12 13.6 12.5 10 74 M8 26 97 22 6.8 23 999
