A595CIN

Clamping levers with screw

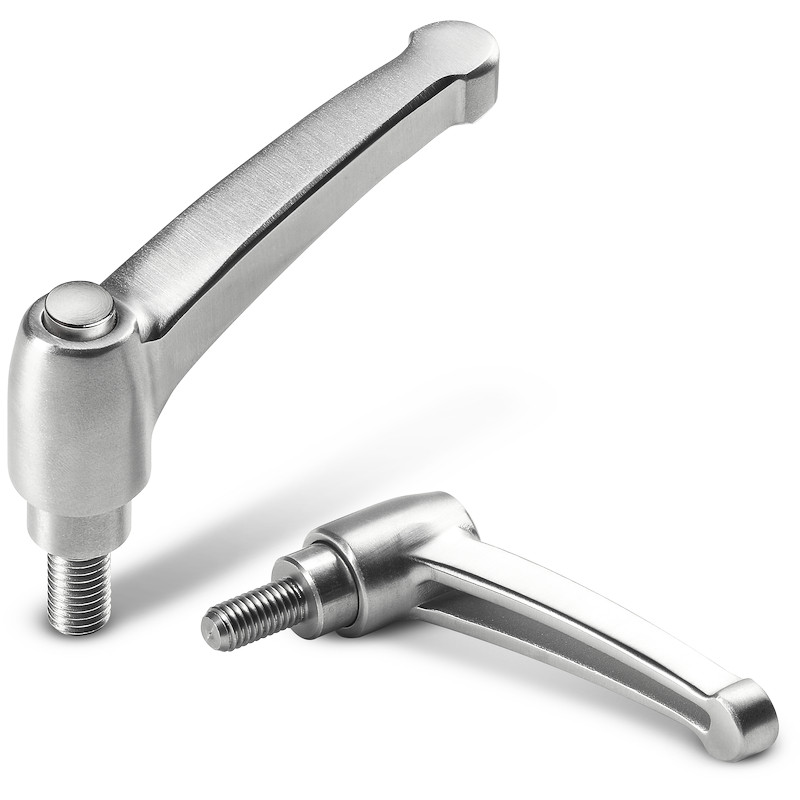

FULL STAINLESS STEEL INDEXED CLAMPING LEVER WITH THREADED STUD

Ver. 01V01-0124

Lever body in precision-cast stainless steel (Aisi 304).

Brushed.

  • Technical features

    Materials:
    Lever body in precision-cast stainless steel (Aisi 304).

    Surface finish:
    Brushed.

    Colour:
    Natural.

    Inserts:
    Stainless steel insert with threaded stud (Aisi 303) (thread tolerance 6g).

    Fixing screw:
    Vite in acciaio inox (Aisi 303) con testa chiusa.

    Spring:
    Stainless steel spring (Aisi 302).

    Special requests:
    Upon request and for a minimum of 300 pieces inserts can be supplied with customised lengths.

    Attention:
    For lengths exceeding LM, the threaded stud is supplied assembled.

Alternative products

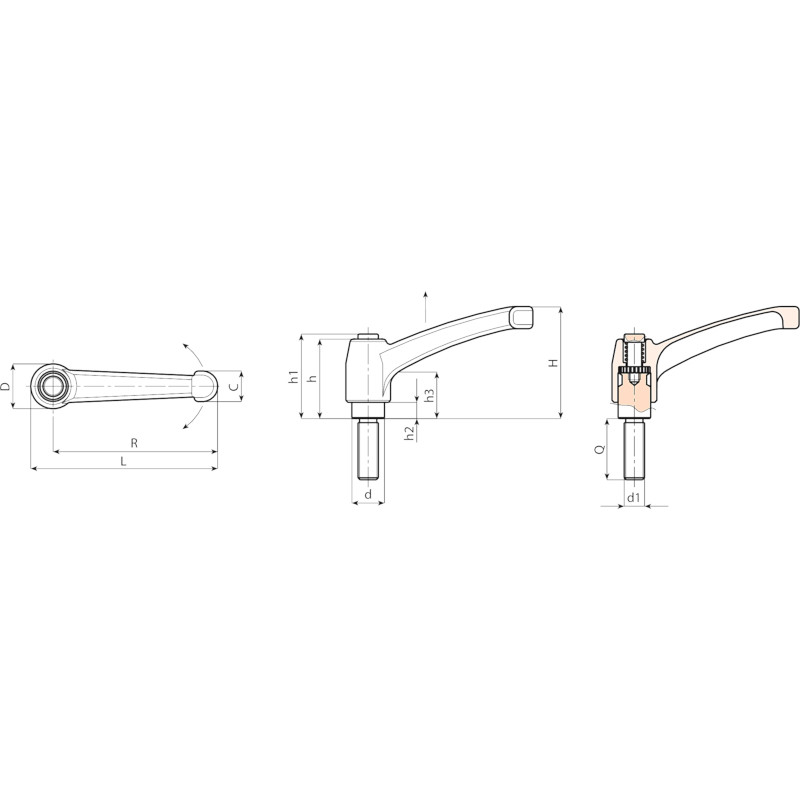

Codice Art. L R H D d c h h1 h2 h3 LM d16g Q
A595043.0001 A595043.IM05X16CIN 50 43 30 14 10 9 26 30 5 14 50 M5 16 31
A595043.0002 A595043.IM05X20CIN 50 43 30 14 10 9 26 30 5 14 50 M5 20 32
A595043.0003 A595043.IM05X30CIN 50 43 30 14 10 9 26 30 5 14 50 M5 30 34
A595043.0004 A595043.IM06X16CIN 50 43 30 14 10 9 26 30 5 14 50 M6 16 31
A595043.0005 A595043.IM06X20CIN 50 43 30 14 10 9 26 30 5 14 50 M6 20 32
A595043.0006 A595043.IM06X30CIN 50 43 30 14 10 9 26 30 5 14 50 M6 30 34
A595065.0001 A595065.IM08X16CIN 75 65 45 19 14 13 32 34 7 14 60 M8 16 82
A595065.0002 A595065.IM08X20CIN 75 65 45 19 14 13 32 34 7 14 60 M8 20 83
A595065.0003 A595065.IM08X30CIN 75 65 45 19 14 13 32 34 7 14 60 M8 30 86
A595065.0004 A595065.IM08X40CIN 75 65 45 19 14 13 32 34 7 14 60 M8 40 89
A595065.0005 A595065.IM10X30CIN 75 65 45 19 14 13 32 34 7 14 60 M10 30 94
A595065.0006 A595065.IM10X40CIN 75 65 45 19 14 13 32 34 7 14 60 M10 40 99
A595080.0001 A595080.IM10X20CIN 91 80 57 22 16 16 40 42 8 16 60 M10 20 146
A595080.0002 A595080.IM10X30CIN 91 80 57 22 16 16 40 42 8 16 60 M10 30 151
A595080.0003 A595080.IM10X40CIN 91 80 57 22 16 16 40 42 8 16 60 M10 40 156
A595080.0004 A595080.IM12X20CIN 91 80 57 22 16 16 40 42 8 16 60 M12 20 150
A595080.0005 A595080.IM12X30CIN 91 80 57 22 16 16 40 42 8 16 60 M12 30 157
A595080.0006 A595080.IM12X50CIN 91 80 57 22 16 16 40 42 8 16 60 M12 50 171
A595094.0001 A595094.IM12X20CIN 107 94 65 26 20 17.5 47 50 10.5 19 60 M12 20 229
A595094.0002 A595094.IM12X30CIN 107 94 65 26 20 17.5 47 50 10.5 19 60 M12 30 236
A595094.0003 A595094.IM14X30CIN 107 94 65 26 20 17.5 47 50 10.5 19 60 M14 30 240
A595094.0004 A595094.IM14X50CIN 107 94 65 26 20 17.5 47 50 10.5 19 60 M14 50 260
A595094.0005 A595094.IM16X50CIN 107 94 65 26 20 17.5 47 50 10.5 19 70 M16 50 278

Customised stud length available for a minimum of 300 pieces.
LM = maximum turning length.
