Clamping levers with screw

“EUROMODEL” INDEXED CLAMPING LEVER WITH THREADED INSERT

Ver. 01V01-0124

Special technopolymer reinforced with high-strength glass fiber.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Special technopolymer reinforced with high-strength glass fiber.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Lever body and insert colour:
    Black (RAL 9011).

    Inserts:
    Galvanised steel insert with female threaded hole (thread tolerance 6H).

    Fixing screw:
    Black oxide treated steel screw with hexagon socket head.
    (*) Black oxide treated steel screw with slotted head.

    Spring:
    Stainless steel spring (Aisi 302).

    Alternative lever body colours:
    Orange (RAL 2004 code 02).
    Blue (RAL 5015 code 07).
    Yellow (RAL 1021 code 10).
    Red (RAL 3000 code 16).
    Green (RAL 6024 code 17).
    Grey (RAL 7035 cod. 13).

    Special requests:
    Upon request and for special quantities inserts can be supplied in different materials.
    Upon request and for special quantities available in the colours indicated in the chart (attention: reduced range) [pageTitoloTabellaColori.

  • Description

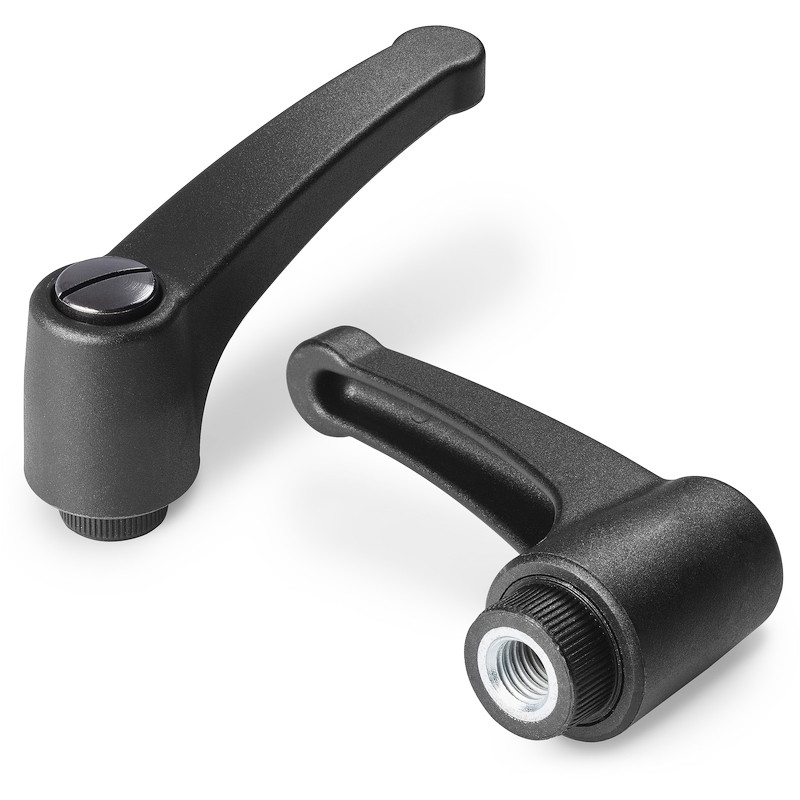

    Indexed clamping lever with screw and threaded insert is the standard version in our catalogue, unlike the fixed one with button (A582) which is more economical. The sturdiness and closure strength are the same for the entire series. The presence of the fixing screw has two main advantages: the first is the possibility of tightening the lever using a screwer; the second is the possibility, where the lever cannot be rotated through 360° for assembly, of loosening the screw and consequently disassembling the lever and then reassembling it in position on the application. Its shape and the possibility of raising the handle body and positioning it at a different angle means it can be used in confined spaces where there is no room for full rotation such as on machine tools, woodworking machines, packaging machines, or other equipment or machinery. Ideal in sectors such as industrial lighting and professional fitness (gym equipment and bicycles). The A580 indexed clamping lever is made from high-strength reinforced polyamide materials. Available in various versions and models (indexed clamping lever with button, metal indexed clamping lever, fixed lever, plastic handle, metal handle, etc.).

  • Media

  • Material sheets

Alternative products

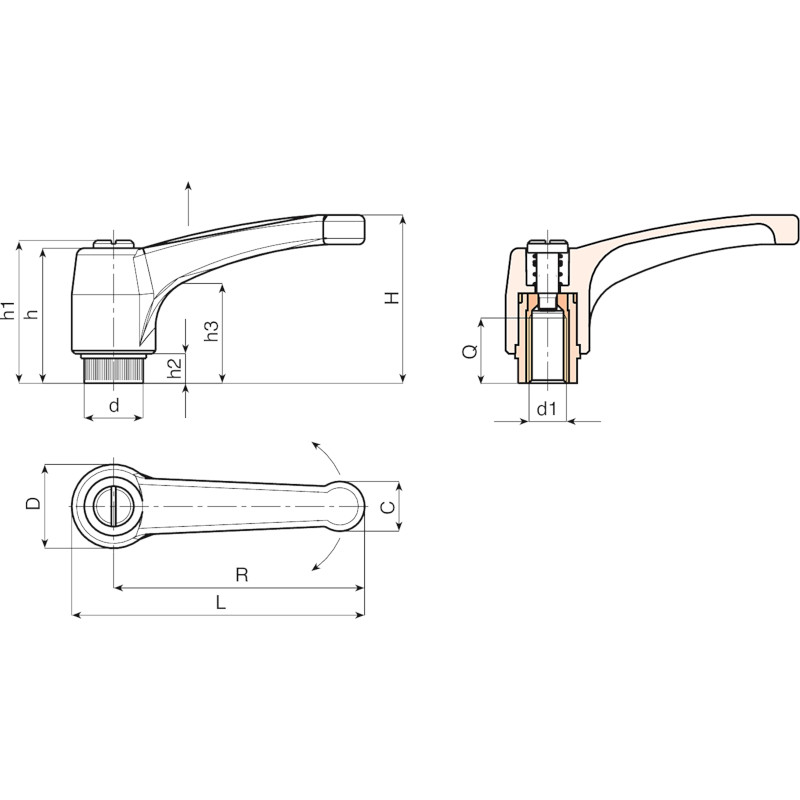

Codice Art. L R H D d c h h1 h2 h3 d16H Q 3D
A580043.0001 A580043.TM0401 51 43 33 17 11.5 9 29 32 6 18 M4 8 15
A580043.0004 A580043.TM0501 51 43 33 17 11.5 9 29 32 6 18 M5 10 15
A580043.0007 A580043.TM0601 51 43 33 17 11.5 9 29 32 6 18 M6 10 14
A580052.0001 * A580052.TM0601 63 52 41 22 15 12 36 40 8 23 M6 14 31
A580052.0002 * A580052.TM0801 63 52 41 22 15 12 36 40 8 23 M8 14 30
A580052.0004 * A580052.TM1001 63 52 41 22 15 12 36 40 8 23 M10 14 30
A580065.0001 A580065.TM0601 76 65 43 23 15 13 36 40 8 24 M6 14 36
A580065.0004 A580065.TM0801 76 65 43 23 15 13 36 40 8 24 M8 14 35
A580065.0010 A580065.TM1001 76 65 43 23 15 13 36 40 8 24 M10 14 35
A580080.0001 A580080.TM0801 93 80 54 27 19 15.5 44 48 8.5 29 M8 19 55
A580080.0004 A580080.TM1001 93 80 54 27 19 15.5 44 48 8.5 29 M10 19 54
A580080.0006 A580080.TM1201 93 80 54 27 19 15.5 44 48 8.5 29 M12 19 54
A580094.0001 * A580094.TM0801 109 94 56 30 19 18 45 49 9 30 M8 19 80
A580094.0003 * A580094.TM1001 109 94 56 30 19 18 45 49 9 30 M10 19 81
A580094.0006 * A580094.TM1201 109 94 56 30 19 18 45 49 9 30 M12 19 83
A580108.0001 A580108.TM1201 125 108 64 34 24 21 51 55 10 35 M12 22 144
A580108.0002 A580108.TM1401 125 108 64 34 24 21 51 55 10 35 M14 21 146
A580108.0004 A580108.TM1601 125 108 64 34 24 21 51 55 10 35 M16 23 149
