A582CIN

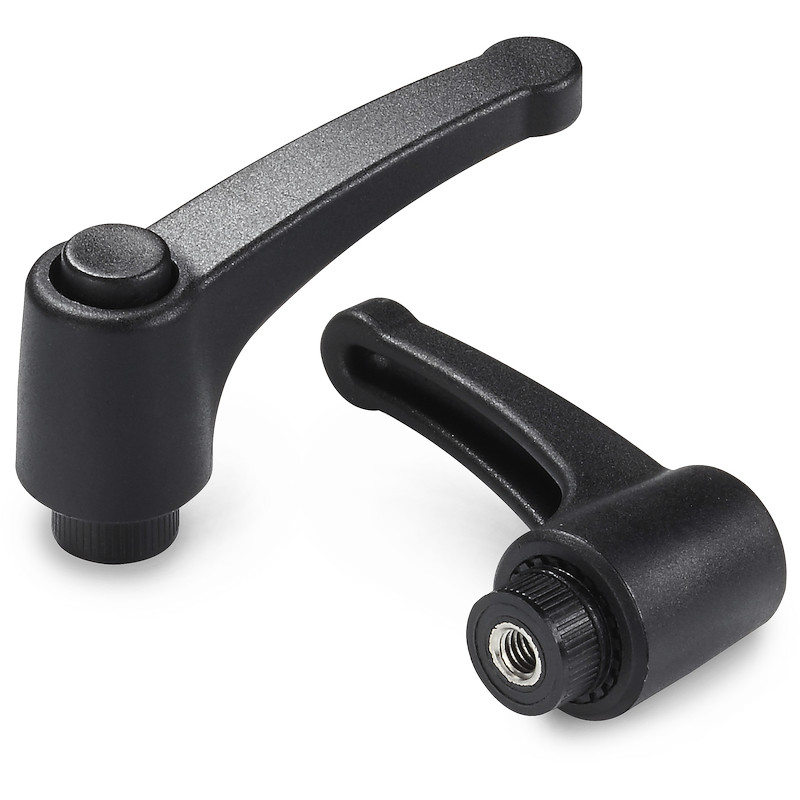

Clamping levers with plastic push button

“EUROMODEL” INDEXED CLAMPING LEVER WITH BUTTON AND STAINLESS STEEL THREADED INSERT

Ver. 01V01-0124

Special technopolymer reinforced with high-strength glass fiber.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Special technopolymer reinforced with high-strength glass fiber.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Lever body and insert colour:
    Black (RAL 9011).

    Inserts:
    Stainless steel insert with female threaded hole (Aisi 303) (thread tolerance 6H).

    Button:
    Black polyamide button (RAL 9011).

    Spring:
    Stainless steel spring (Aisi 302).

    Alternative lever body and button colours:
    Orange (RAL 2004 code 02).
    Blue (RAL 5015 code 07).
    Yellow (RAL 1021 code 10).
    Red (RAL 3000 code 16).
    Green (RAL 6024 code 17).
    Grey (RAL 7035 cod. 13).

    Special requests:
    Upon request and for special quantities available in the colours indicated in the chart (attention: reduced range) [pageTitoloTabellaColori.

  • Material sheets

Alternative products

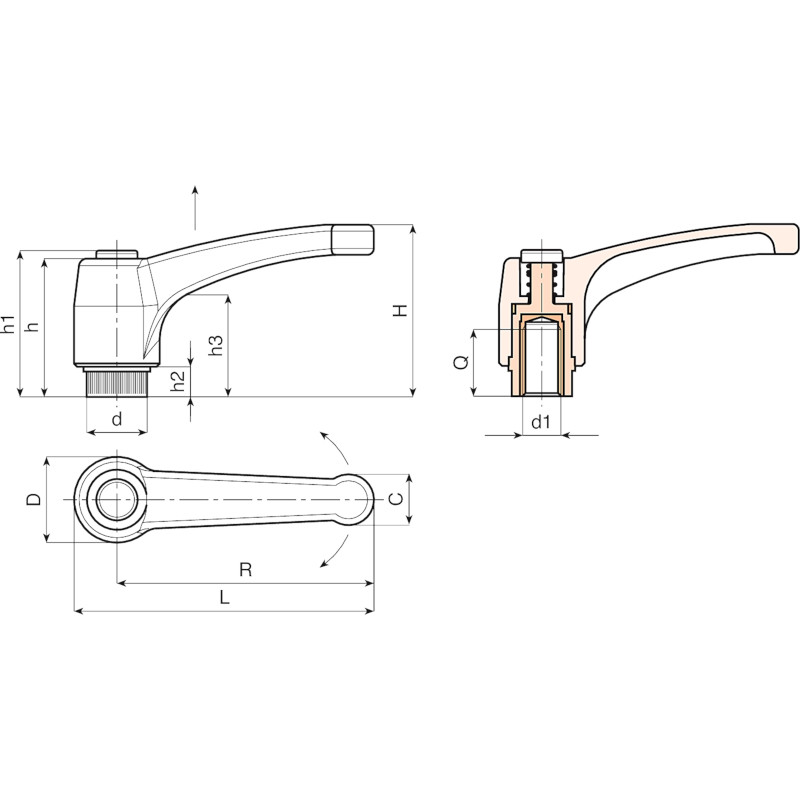

Codice Art. L R H D d c h h1 h2 h3 d16H Q
A582043.0003 A582043.TM0401CIN 51 43 33 17 11.5 9 29 32 6 18 M4 8 15
A582043.0010 A582043.TM0501CIN 51 43 33 17 11.5 9 29 32 6 18 M5 10 15
A582043.0019 A582043.TM0601CIN 51 43 33 17 11.5 9 29 32 6 18 M6 10 14
A582052.0004 A582052.TM0601CIN 63 52 41 22 15 12 36 40 8 23 M6 14 31
A582052.0012 A582052.TM0801CIN 63 52 41 22 15 12 36 40 8 23 M8 14 30
A582065.0004 A582065.TM0601CIN 76 65 43 23 15 13 36 40 8 24 M6 14 36
A582065.0014 A582065.TM0801CIN 76 65 43 23 15 13 36 40 8 24 M8 14 35
A582080.0007 A582080.TM0801CIN 93 80 54 27 19 15.5 44 48 8.5 29 M8 19 55
A582080.0023 A582080.TM1001CIN 93 80 54 27 19 15.5 44 48 8.5 29 M10 19 54
A582080.0035 A582080.TM1201CIN 93 80 54 27 19 15.5 44 48 8.5 29 M12 19 54
A582094.0003 A582094.TM0801CIN 109 94 56 30 19 18 45 49 9 30 M8 19 80
A582094.0007 A582094.TM1001CIN 109 94 56 30 19 18 45 49 9 30 M10 19 81
A582094.0013 A582094.TM1201CIN 109 94 56 30 19 18 45 49 9 30 M12 19 83
A582108.0005 A582108.TM1201CIN 125 108 64 34 24 21 51 55 10 35 M12 22 144
A582108.0007 A582108.TM1401CIN 125 108 64 34 24 21 51 55 10 35 M14 21 146
A582108.0010 A582108.TM1601CIN 125 108 64 34 24 21 51 55 10 35 M16 23 149
