A522

Clamping levers with screw

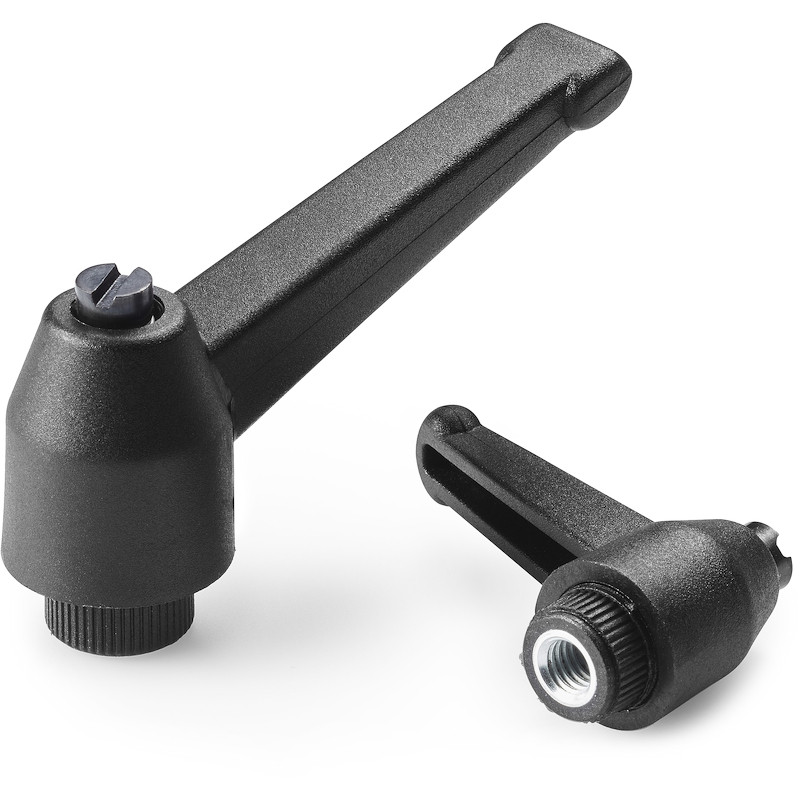

INDEXED CLAMPING LEVER WITH THREADED INSERT

Ver. 01V01-0124

Special technopolymer reinforced with high-strength glass fiber.
Resistant to oils and greases.

Satin.

Alternative products

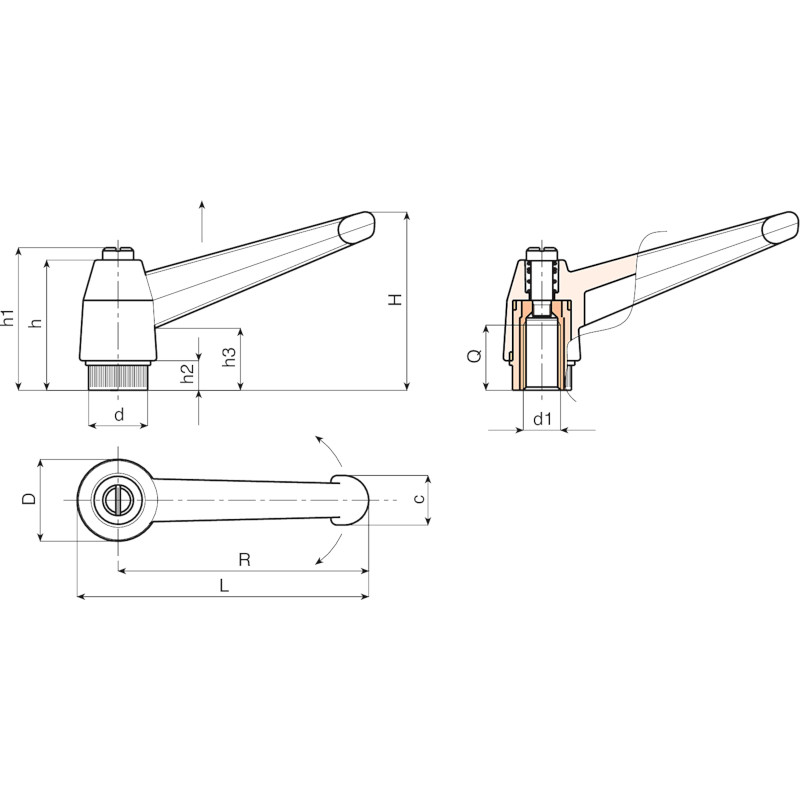

Codice Art. L R H D d c h h1 h2 h3 d16H Q
A522043.0001 A522043.TM0401 52 43 33 17 11.5 11 27 30 6 14 M4 10 14
A522043.0003 A522043.TM0501 52 43 33 17 11.5 11 27 30 6 14 M5 9 14
A522043.0005 A522043.TM0601 52 43 33 17 11.5 11 27 30 6 14 M6 9 14
A522065.0001 A522065.TM0601 77 65 45 23 15 13 34 38 8 17 M6 15 28
A522065.0004 A522065.TM0801 77 65 45 23 15 13 34 38 8 17 M8 15 26
A522065.0012 A522065.TM1001 77 65 45 23 15 13 34 38 8 17 M10 13 28
A522083.0001 A522083.TM0801 97 83 57 27 19 16 43 47 10 23 M8 17 52
A522083.0006 A522083.TM1001 97 83 57 27 19 16 43 47 10 23 M10 17 48
A522083.0015 A522083.TM1201 97 83 57 27 19 16 43 47 10 23 M12 16 48
A522104.0002 A522104.TM1001 121 104 70 33 24 19 50 53 11 26 M10 20 114
A522104.0004 A522104.TM1201 121 104 70 33 24 19 50 53 11 26 M12 22 106
A522104.0006 A522104.TM1401 121 104 70 33 24 19 50 53 11 26 M14 21 100
A522104.0008 A522104.TM1601 121 104 70 33 24 19 50 53 11 26 M16 23 100
