01

A580BF

Clamping levers with screw

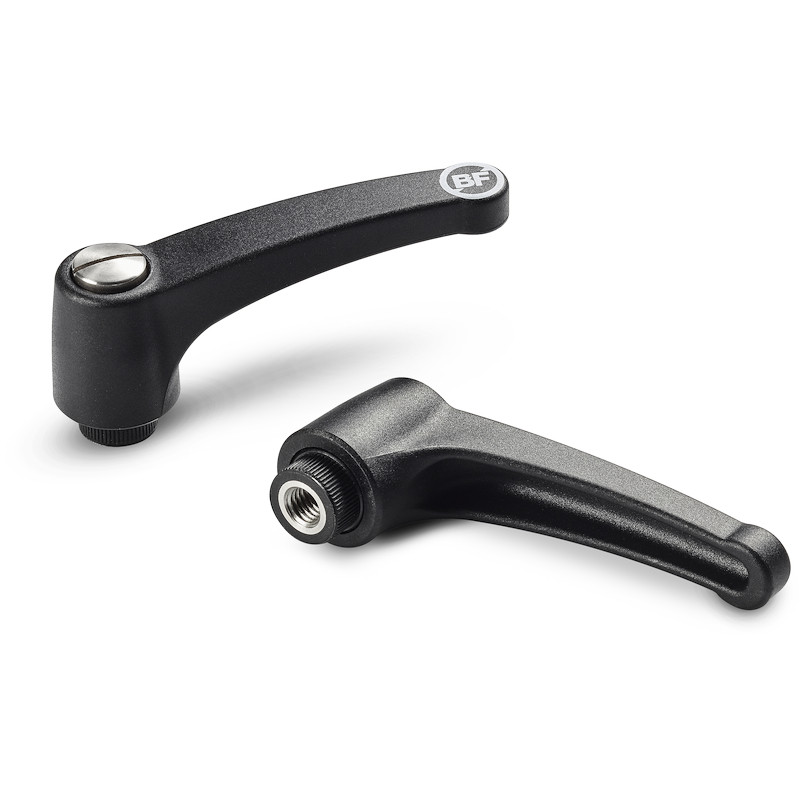

“EUROMODEL” INDEXED CLAMPING LEVER MADE FROM ANTIBACTERIAL MATERIAL AND STAINLESS STEEL THREADED INSERT

Ver. 01V01-0124

Special technopolymer reinforced with high-strength glass fibre, with inorganic silver ion additives which make the material antibacterial (ISO 22196:2011).
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Special technopolymer reinforced with high-strength glass fibre, with inorganic silver ion additives which make the material antibacterial (ISO 22196:2011).
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Lever body and insert colour:
    Black (RAL 9011).

    Inserts:
    Stainless steel insert with female threaded hole (Aisi 303) (thread tolerance 6H).

    Fixing screw:
    Stainless steel screw (Aisi 303) with slotted head.

    Spring:
    Stainless steel spring (Aisi 302).

    Special requests:
    None.

  • Description

    Notes:

Alternative products

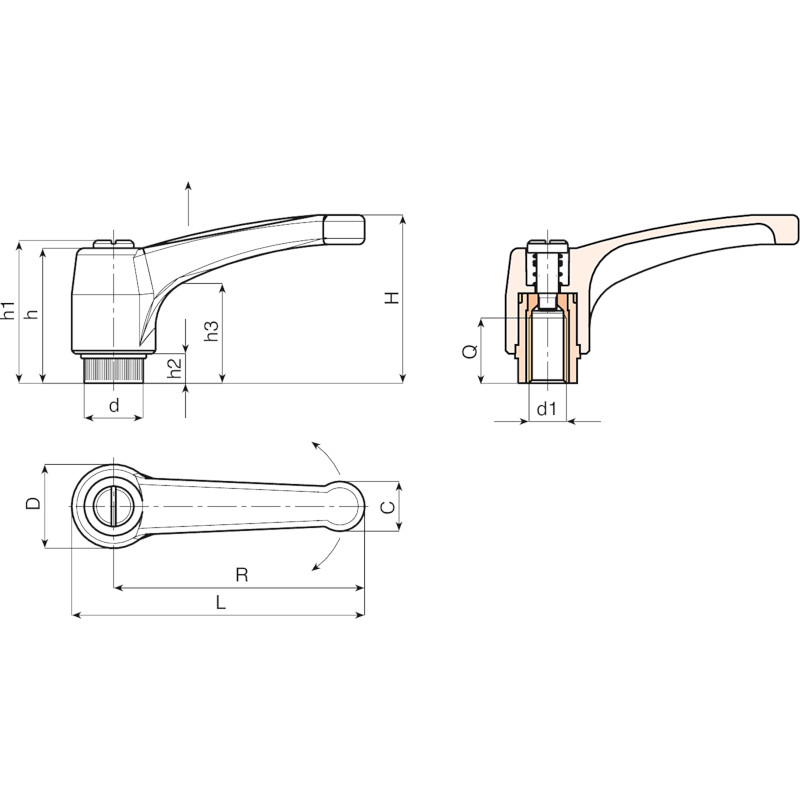

Codice Art. L R H D d c h h1 h2 h3 d16H Q
A580065.0002 A580065.TM0601BF 76 65 43 23 15 13 36 40 8 24 M6 14 36
A580080.0002 A580080.TM0801BF 93 80 54 27 19 15.5 44 48 8.5 29 M8 19 55
A580094.0004 A580094.TM1001BF 109 94 56 30 19 18 45 49 9 30 M10 19 81
