P704

Plastic feet with lateral fixing-with fixing-ball joint stud

TEARDROP MOUNTING FOOT WITH GROUND FIXING AND STEEL ARTICULATED STEM TYPE B - BALL 12.4

Ver. 16V01-0124

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Inserts:
    P704:

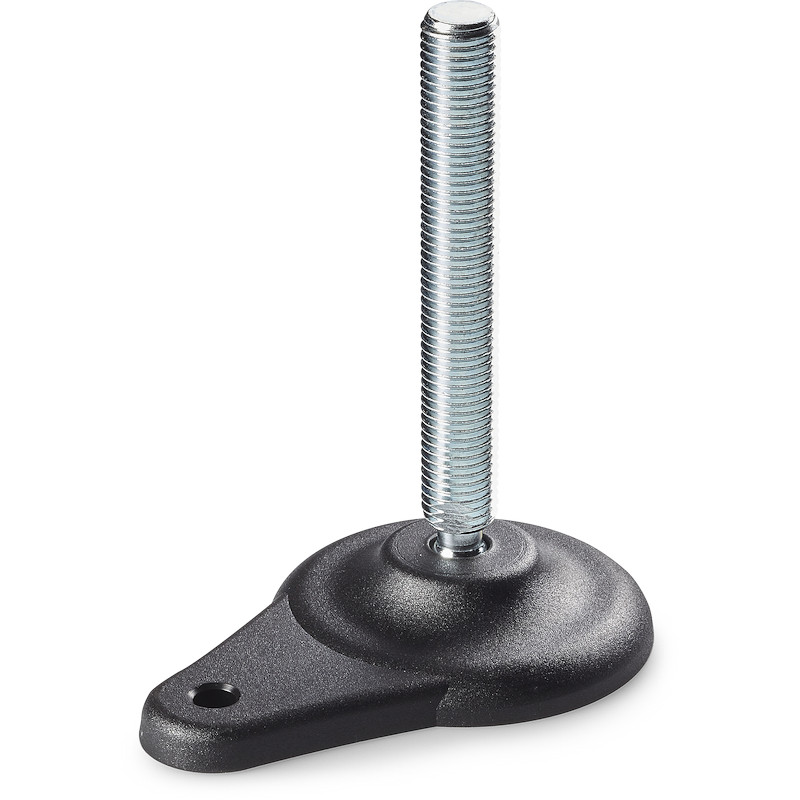

    Galvanised steel threaded and articulated stem (ball 12.5) with milled seat for wrench (type B) (thread tolerance 6g).
    P704CIN:

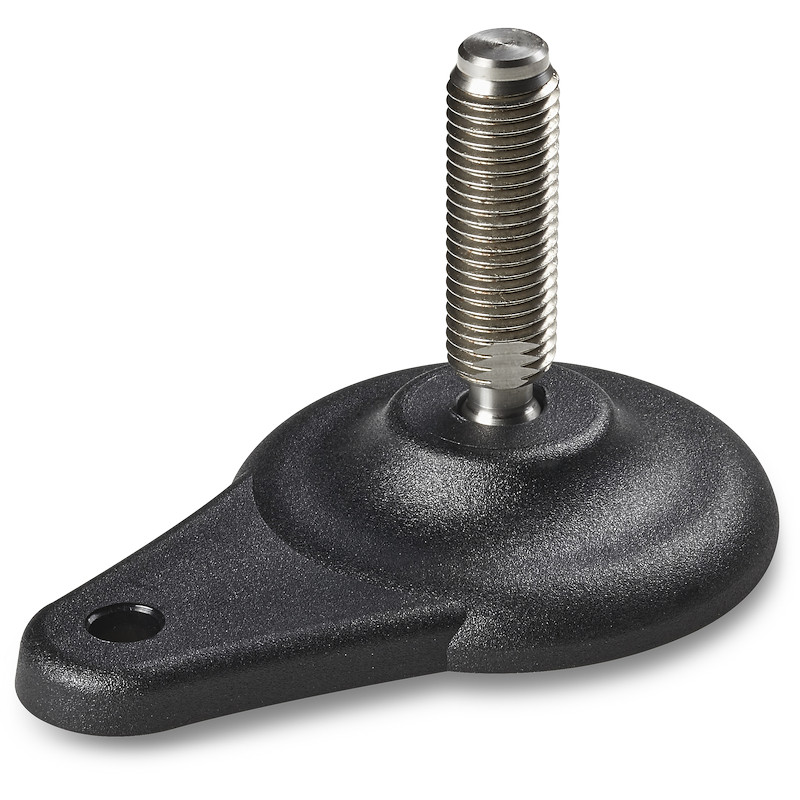

    Stainless steel threaded and articulated stem (ball 12.5) with milled seat for wrench (type B) (Aisi 303) (thread tolerance 6g).

    Ground fixing:
    Through hole obtained by moulding the plastic.

    Special requests:
    Upon request and for special quantities inserts can be supplied with customised lengths.
    Upon request and for special quantities the foot can be supplied in Orange (RAL 2004).

Alternative products
Version P704: Teardrop mounting foot with ground fixing - stem type B (with milled seat for wrench) and ball 12.5

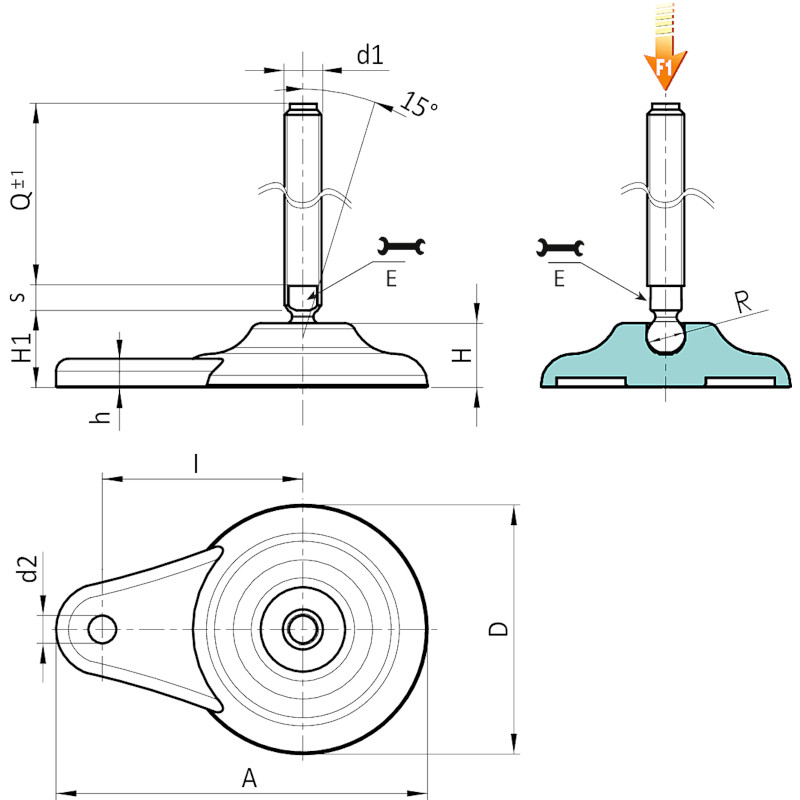

Codice Art. D H I H1 h A E s d2 R d16g Q F1 (kN) 3D
- P704080.TM16X7001 80 20 65 26 9 120 13 7 9 12,4 M16 70 156 10
- P704080.TM16X9001 80 20 65 26 9 120 13 7 9 12,4 M16 90 182 10
P704080.0003 P704080.TM16X11001 80 20 65 26 9 120 13 7 9 12,4 M16 110 208 10
P704080.0005 P704080.TM16X13001 80 20 65 26 9 120 13 7 9 12,4 M16 130 234 10
P704080.0007 P704080.TM16X15001 80 20 65 26 9 120 13 7 9 12,4 M16 150 260 10
P704080.0009 P704080.TM16X17001 80 20 65 26 9 120 13 7 9 12,4 M16 170 286 10

Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.

Version P704CIN: Teardrop mounting foot with ground fixing - stem type B - stainless steel - (with milled seat for wrench) and ball 12.5
Codice Art. D H I H1 h A E s d2 R d16g Q F1 (kN) 3D
P704080.0004 P704080.TM16X11001CIN 80 20 65 26 9 120 13 7 9 12,4 M16 110 130 10
P704080.0006 P704080.TM16X13001CIN 80 20 65 26 9 120 13 7 9 12,4 M16 130 156 10
P704080.0008 P704080.TM16X15001CIN 80 20 65 26 9 120 13 7 9 12,4 M16 150 182 10
P704080.0010 P704080.TM16X17001CIN 80 20 65 26 9 120 13 7 9 12,4 M16 170 208 10

Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.
