16

P708

Plastic feet with lateral fixing-with fixing-ball joint stud

TEARDROP MOUNTING FOOT WITH GROUND FIXING AND STEEL ARTICULATED STEM TYPE B - BALL 24

Ver. 16V01-0124

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Inserts:

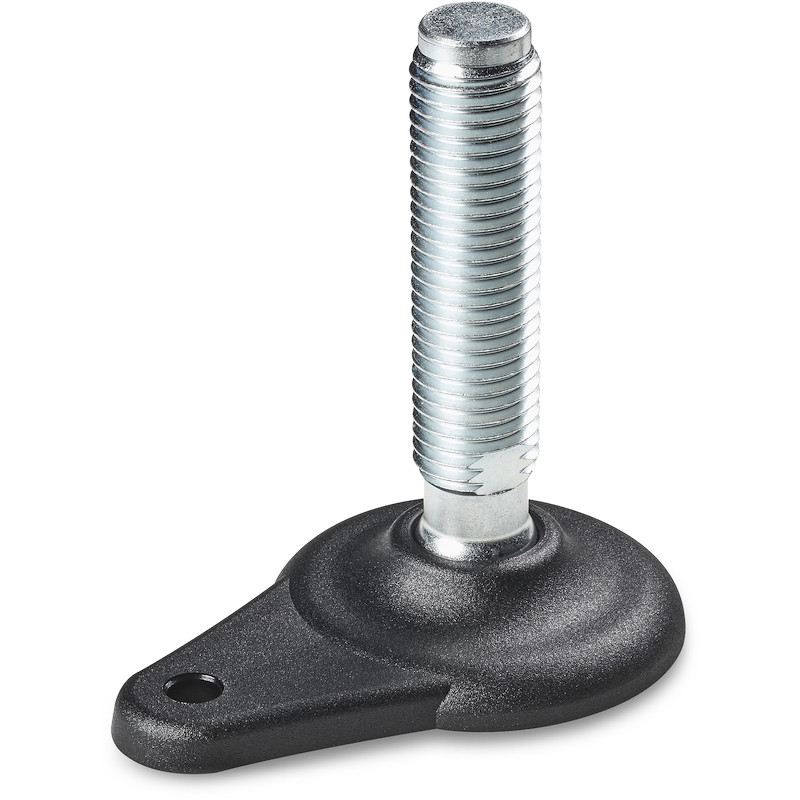

    P708:
    Galvanised steel threaded and articulated stem (ball 24) with milled seat for wrench (type B) (thread tolerance 6g).

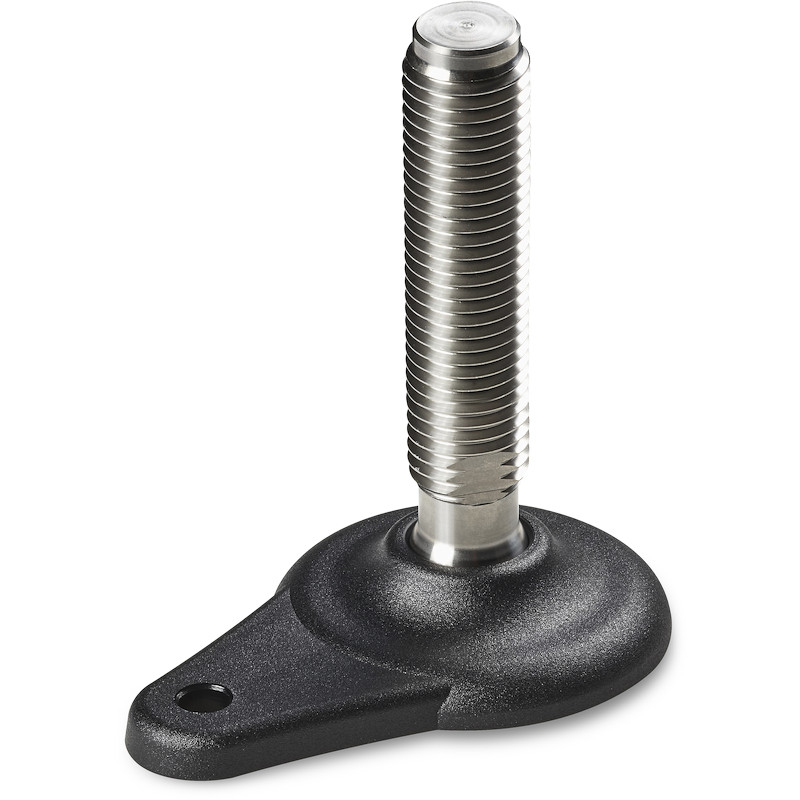

    P708CIN:
    Stainless steel threaded and articulated stem (ball 24) with milled seat for wrench (type B) (Aisi 304) (thread tolerance 6g).

    Ground fixing:
    Through hole obtained by moulding the plastic.

    Special requests:
    Upon request and for special quantities inserts can be supplied with customised lengths.
    Upon request and for special quantities the foot can be supplied in Orange (RAL 2004).

Alternative products
Version P708: Teardrop mounting foot with ground fixing - stem type B (with milled seat for wrench) and ball 24

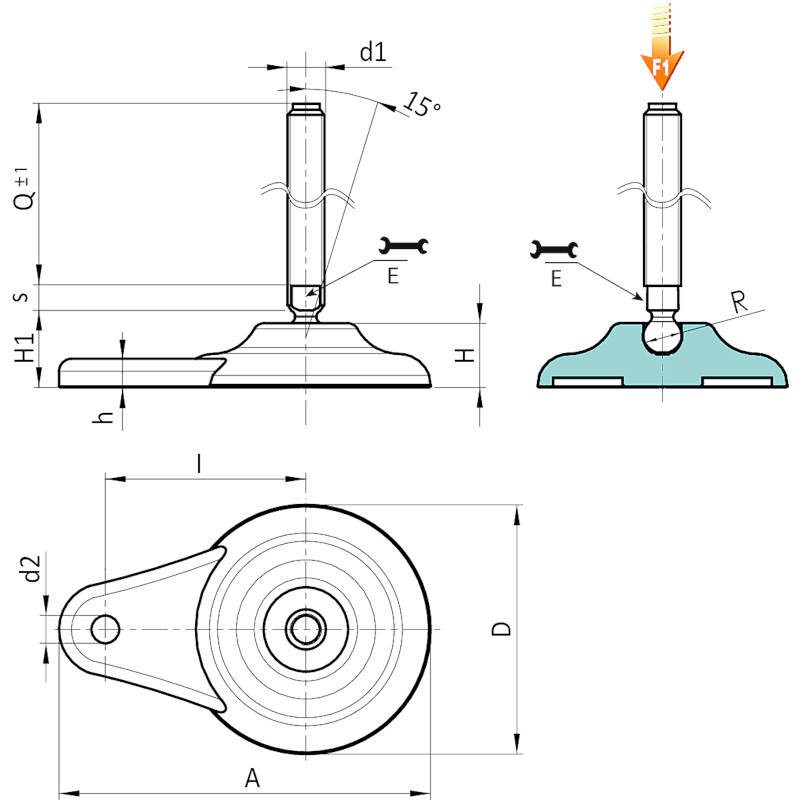

Codice Art. D H I H1 h A E s d2 R d16g Q F1 (kN) 3D
P708080.0001 P708080.TM24X11001 80 20 65 32 9 120 19 10 9 24 M24 110 446 25
P708080.0003 P708080.TM24X13001 80 20 65 32 9 120 19 10 9 24 M24 130 506 25
P708080.0005 P708080.TM24X15001 80 20 65 32 9 120 19 10 9 24 M24 150 566 25
P708080.0007 P708080.TM24X17001 80 20 65 32 9 120 19 10 9 24 M24 170 626 25
P708080.0010 P708080.TM30X11001 80 20 65 32 9 120 27 12 9 24 M30 110 606 25
P708080.0011 P708080.TM30X13001 80 20 65 32 9 120 27 12 9 24 M30 130 693 25
P708080.0013 P708080.TM30X15001 80 20 65 32 9 120 27 12 9 24 M30 150 781 25
P708080.0014 P708080.TM30X17001 80 20 65 32 9 120 27 12 9 24 M30 170 869 25
P708080.0016 P708080.TM30X19001 80 20 65 32 9 120 27 12 9 24 M30 190 956 25
P708080.0017 P708080.TM30X21001 80 20 65 32 9 120 27 12 9 24 M30 210 1046 25

Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.

Version P708CIN: Teardrop mounting foot with ground fixing - stem type B - stainless steel - (with milled seat for wrench) and ball 24
Codice Art. D H I H1 h A E s d2 R d16g Q F1 (kN) 3D
P708080.0002 P708080.TM24X11001CIN 80 20 65 32 9 120 19 10 9 24 M24 110 446 25
P708080.0004 P708080.TM24X13001CIN 80 20 65 32 9 120 19 10 9 24 M24 130 506 25
P708080.0006 P708080.TM24X15001CIN 80 20 65 32 9 120 19 10 9 24 M24 150 566 25
P708080.0009 P708080.TM24X19001CIN 80 20 65 32 9 120 19 10 9 24 M24 190 686 25
P708080.0012 P708080.TM30X13001CIN 80 20 65 32 9 120 27 12 9 24 M30 130 693 25
P708080.0015 P708080.TM30X17001CIN 80 20 65 32 9 120 27 12 9 24 M30 170 869 25
P708080.0018 P708080.TM30X21001CIN 80 20 65 32 9 120 27 12 9 24 M30 210 1046 25

Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.
