P705

Plastic feet with lateral fixing-with fixing-ball joint stud +anti-slip pad

TEARDROP MOUNTING FOOT WITH GROUND FIXING AND STEEL ARTICULATED STEM TYPE B - BALL 12.4 AND NON-SLIP BASE

Ver. 16V01-0124

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Inserts:
    P705:
    Galvanised steel threaded and articulated stem (ball 12.5) with milled seat for wrench (type B) (thread tolerance 6g).
    P705CIN:
    Stainless steel threaded and articulated stem (ball 12.5) with milled seat for wrench (type B) (Aisi 303) (thread tolerance 6g).

    Non-slip base:
    Non-slip base in thermoplastic rubber SBS 75 Shore, black RAL 9011. Resistant to oils and greases. Push-fit assembly.

    Ground fixing:
    Through hole obtained by moulding the plastic.

    Special requests:
    Upon request and for special quantities inserts can be supplied with customised lengths.
    Upon request and for special quantities the foot can be supplied in Orange (RAL 2004).

Alternative products

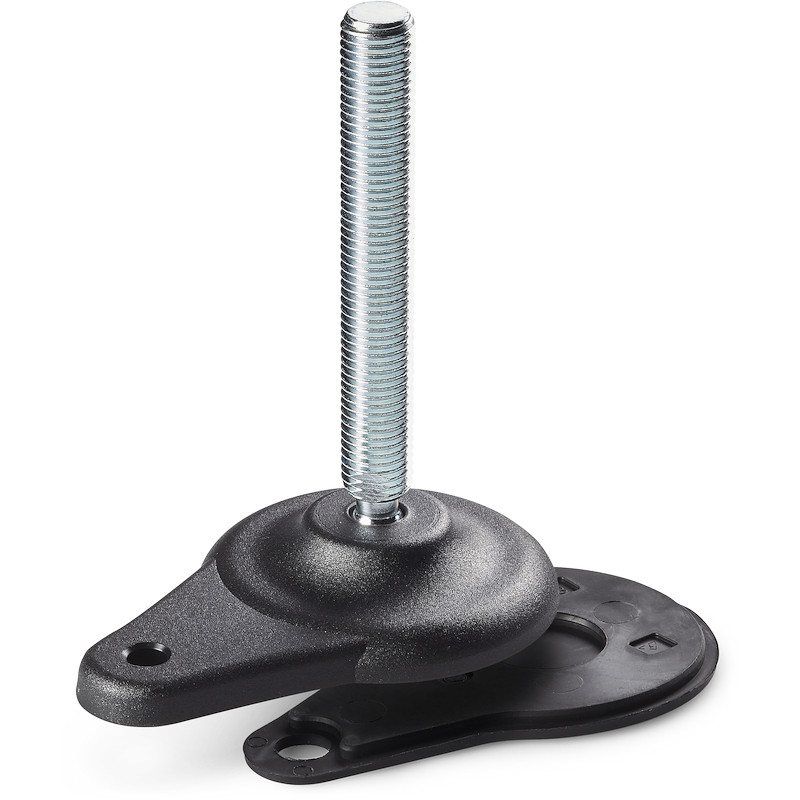

Version P705: Teardrop mounting foot with ground fixing - stem type B (with milled seat for wrench) and ball 12.5 - with SBS non-slip base

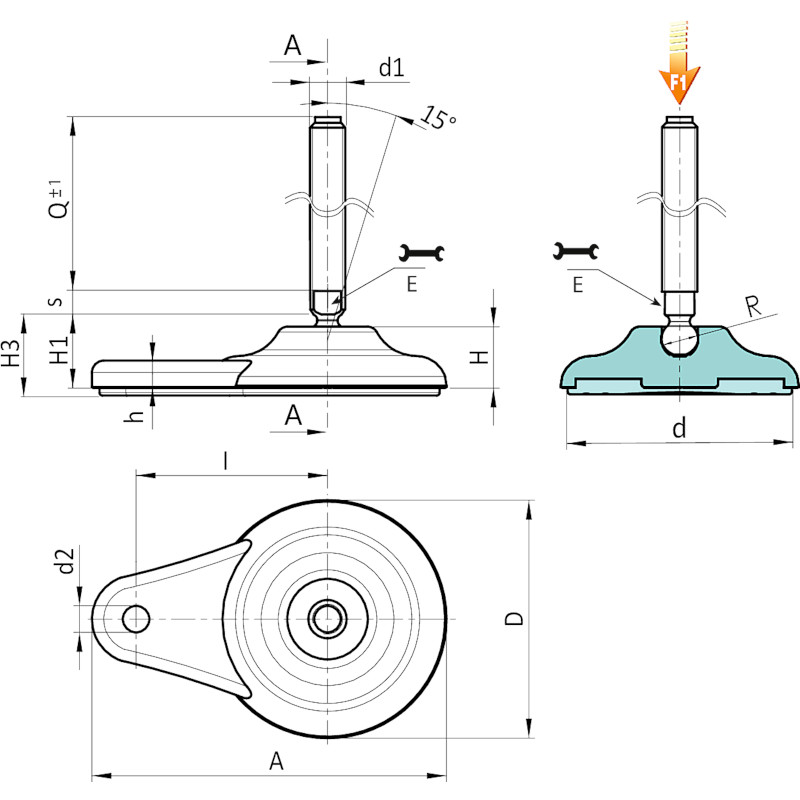

Codice Art. D H I H1 H3 h A E s d2 d R d16g Q F1 (kN) 3D
- P705080.TM16X7001 80 20 65 26 29 9 120 13 7 9 70 12.4 M16 70 179 10
- P705080.TM16X9001 80 20 65 26 29 9 120 13 7 9 70 12.4 M16 90 205 10
P705080.0003 P705080.TM16X11001 80 20 65 26 29 9 120 13 7 9 70 12.4 M16 110 231 10
P705080.0005 P705080.TM16X13001 80 20 65 26 29 9 120 13 7 9 70 12.4 M16 130 257 10
P705080.0007 P705080.TM16X15001 80 20 65 26 29 9 120 13 7 9 70 12.4 M16 150 283 10
P705080.0009 P705080.TM16X17001 80 20 65 26 29 9 120 13 7 9 70 12.4 M16 170 309 10

Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.

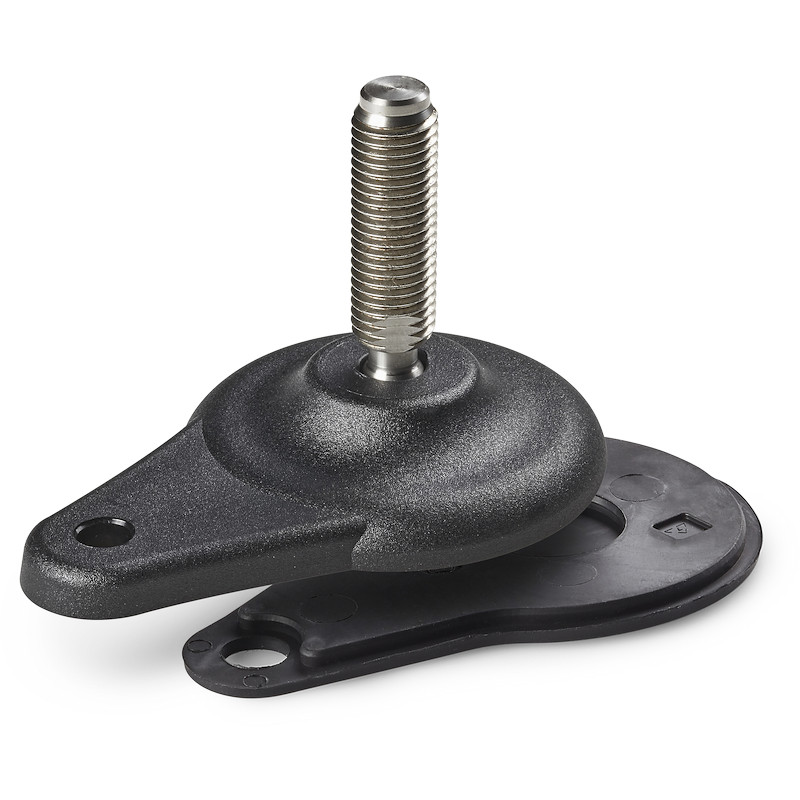

Version P705CIN: Teardrop mounting foot with ground fixing - stem type B - stainless steel - (with milled seat for wrench) and ball 12.5 - with SBS non-slip base
Codice Art. D H I H1 H3 h A E s d2 d R d16g Q F1 (kN) 3D
P705080.0004 P705080.TM16X11001CIN 80 20 65 26 29 9 120 13 7 9 70 12.4 M16 110 231 10
P705080.0006 P705080.TM16X13001CIN 80 20 65 26 29 9 120 13 7 9 70 12.4 M16 130 257 10
P705080.0008 P705080.TM16X15001CIN 80 20 65 26 29 9 120 13 7 9 70 12.4 M16 150 283 10
P705080.0010 P705080.TM16X17001CIN 80 20 65 26 29 9 120 13 7 9 70 12.4 M16 170 309 10

Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.
