P706

Plastic feet with lateral fixing-with fixing-ball joint stud

TEARDROP MOUNTING FOOT WITH GROUND FIXING AND STEEL ARTICULATED STEM TYPE B - BALL 15

Ver. 16V01-0124

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Inserts:
    P706:

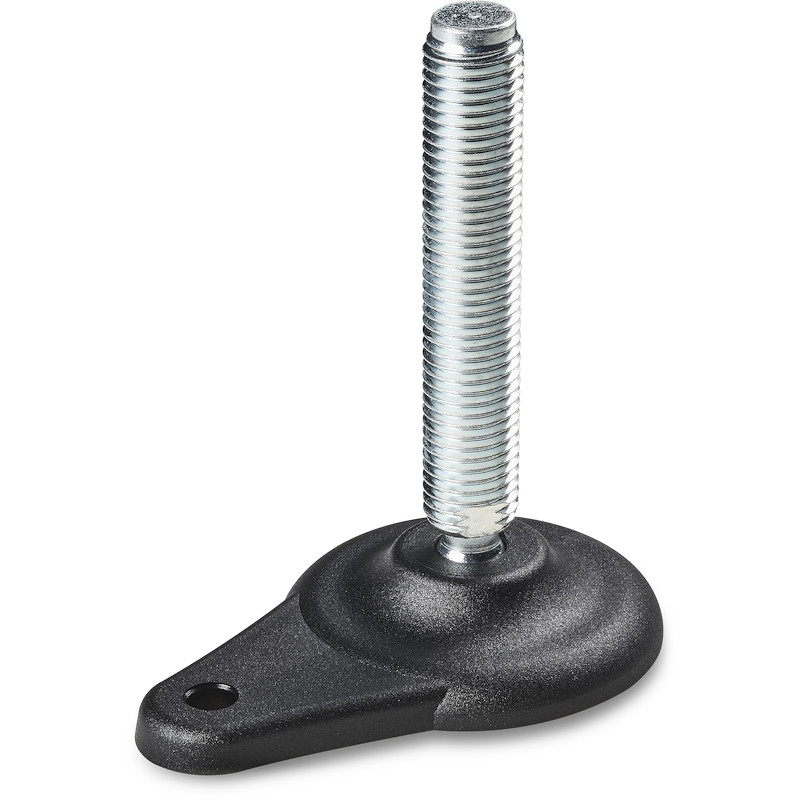

    Galvanised steel threaded and articulated stem (ball 15) with milled seat for wrench (type B) (thread tolerance 6g).
    P706CIN:

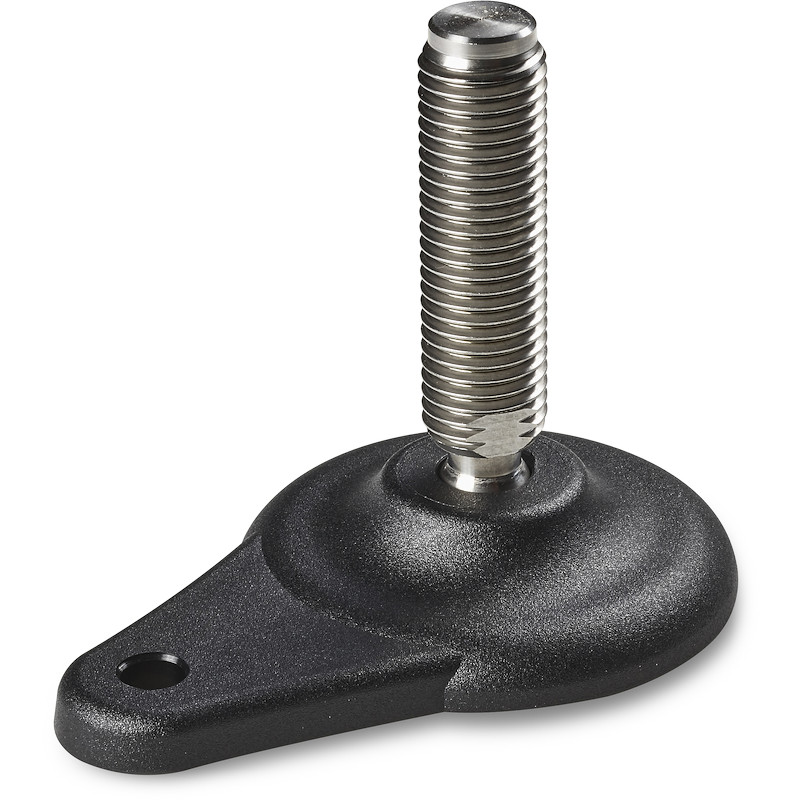

    Stainless steel threaded and articulated stem (ball 15) with milled seat for wrench (type B) (Aisi 304) (thread tolerance 6g).

    Ground fixing:
    Through hole obtained by moulding the plastic.

    Special requests:
    Upon request and for special quantities inserts can be supplied with customised lengths.
    Upon request and for special quantities the foot can be supplied in Orange (RAL 2004).

Alternative products
Version P706: Teardrop mounting foot with ground fixing - stem type B (with milled seat for wrench) and ball 15

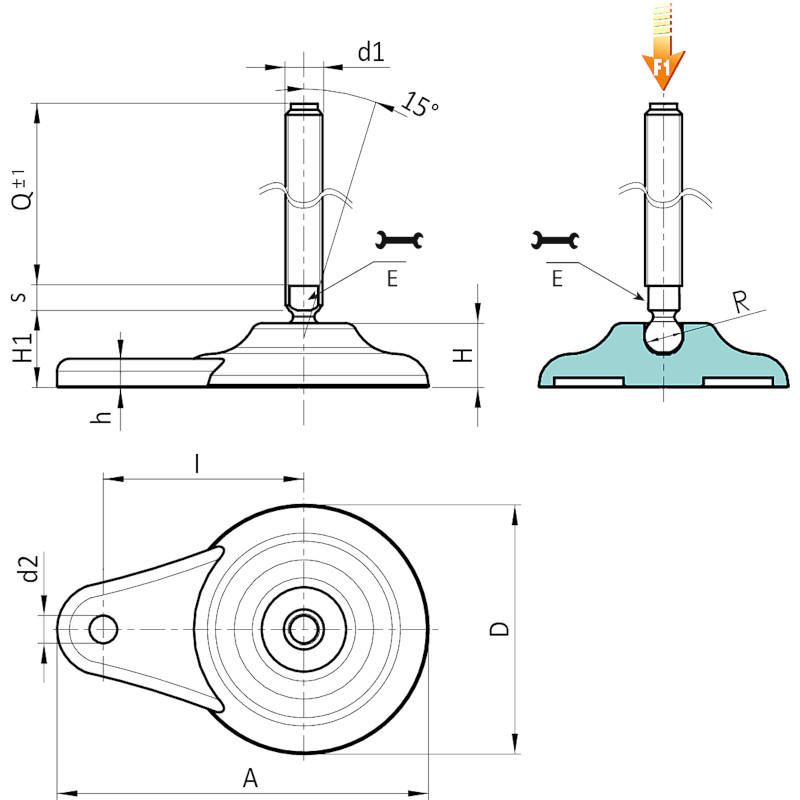

Codice Art. D H I H1 h A E s d2 R d16g Q F1 (kN) 3D
- P706080.TM20X7001 80 20 65 26 9 120 16 7 9 15 M20 70 231 17
- P706080.TM20X9001 80 20 65 26 9 120 16 7 9 15 M20 90 263 17
P706080.0007 P706080.TM20X13001 80 20 65 26 9 120 16 7 9 15 M20 130 327 17
P706080.0009 P706080.TM20X15001 80 20 65 26 9 120 16 7 9 15 M20 150 362 17
P706080.0012 P706080.TM20X19001 80 20 65 26 9 120 16 7 9 15 M20 190 427 17
P706080.0014 P706080.TM20X21001 80 20 65 26 9 120 16 7 9 15 M20 210 462 17
P706080.0017 P706080.TM24X15001 80 20 65 26 9 120 16 7 9 15 M24 150 567 17
P706080.0019 P706080.TM24X17001 80 20 65 26 9 120 16 7 9 15 M24 170 627 17
P706080.0021 P706080.TM24X19001 80 20 65 26 9 120 16 7 9 15 M24 190 687 17
P706080.0023 P706080.TM24X21001 80 20 65 26 9 120 16 7 9 15 M24 210 747 17

Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.

Version P706CIN: Teardrop mounting foot with ground fixing - stem type B - stainless steel - (with milled seat for wrench) and ball 15
Codice Art. D H I H1 h A E s d2 R d16g Q F1 (kN) 3D
- P706080.TM20X7001CIN 80 20 65 26 9 120 16 7 9 15 M20 70 231 17
- P706080.TM20X9001CIN 80 20 65 26 9 120 16 7 9 15 M20 90 263 17
P706080.0008 P706080.TM20X13001CIN 80 20 65 26 9 120 16 7 9 15 M20 130 327 17
P706080.0010 P706080.TM20X15001CIN 80 20 65 26 9 120 16 7 9 15 M20 150 362 17
P706080.0013 P706080.TM20X19001CIN 80 20 65 26 9 120 16 7 9 15 M20 190 427 17
P706080.0015 P706080.TM20X21001CIN 80 20 65 26 9 120 16 7 9 15 M20 210 462 17
P706080.0016 P706080.TM24X11001CIN 80 20 65 26 9 120 16 7 9 15 M24 110 447 17
P706080.0018 P706080.TM24X15001CIN 80 20 65 26 9 120 16 7 9 15 M24 150 567 17
P706080.0022 P706080.TM24X19001CIN 80 20 65 26 9 120 16 7 9 15 M24 190 687 17

Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.
