P703

Plastic feet with lateral fixing-with fixing-ball joint stud +anti-slip pad

TEARDROP MOUNTING FOOT WITH GROUND FIXING AND STEEL ARTICULATED STEM TYPE A - BALL 15

Ver. 16V01-0124

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Inserts:
    P703:

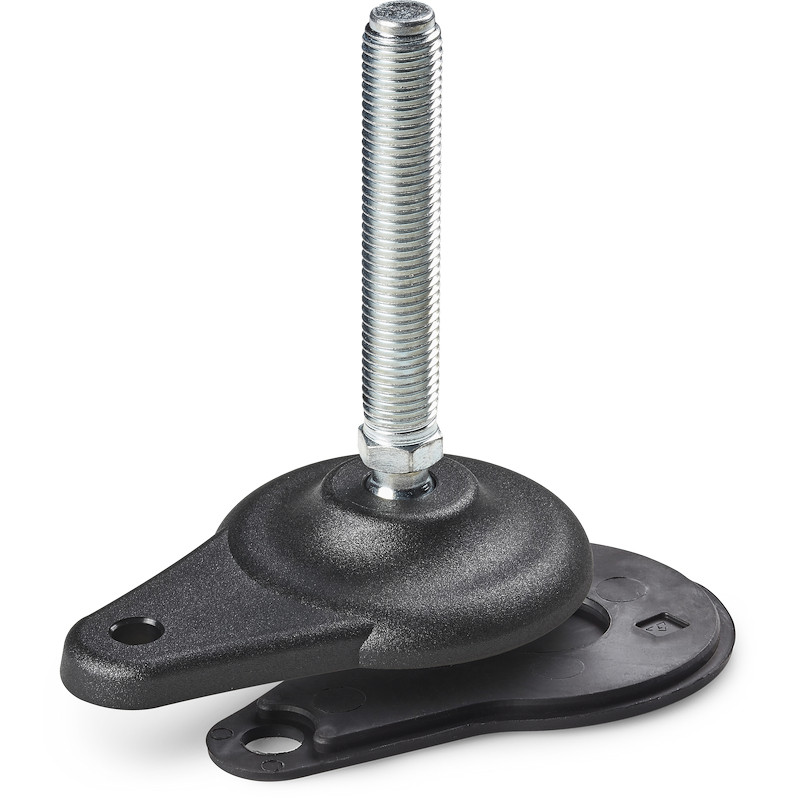

    Galvanised steel threaded and articulated stem (ball 15) with hexagonal base (thread tolerance 6g).
    P703CIN:

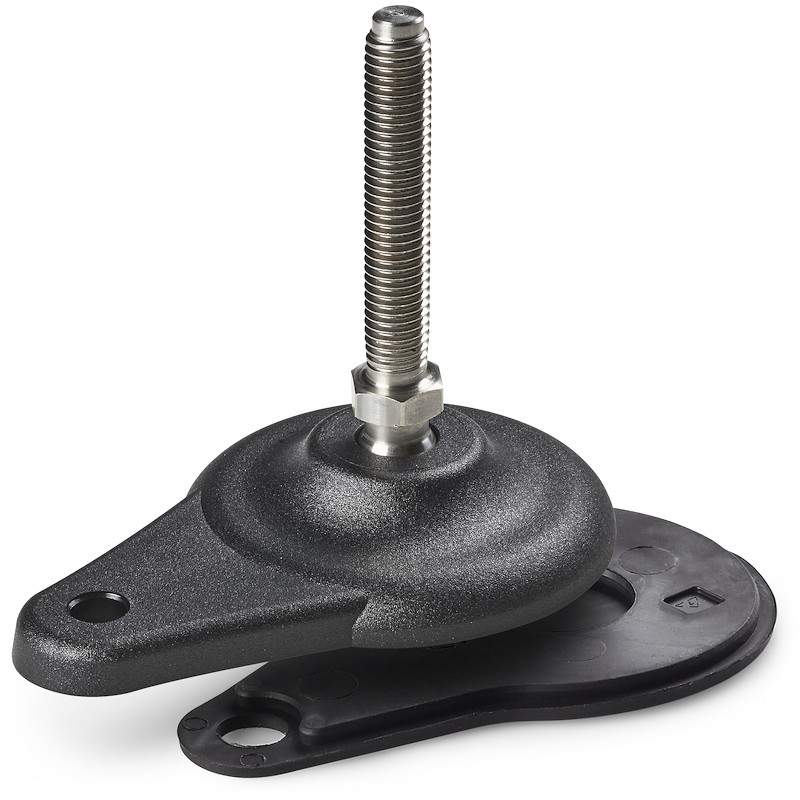

    Stainless steel threaded and articulated stem (ball 15) with hexagonal base (Aisi 303) (thread tolerance 6g).

    Non-slip base:
    Non-slip base in thermoplastic rubber SBS 75 Shore, black RAL 9011. Resistant to oils and greases. Push-fit assembly.

    Ground fixing:
    Through hole obtained by moulding the plastic.

    Special requests:
    Upon request and for special quantities inserts can be supplied with customised lengths.
    Upon request and for special quantities the foot can be supplied in Orange (RAL 2004).

Alternative products
Version P703: Teardrop mounting foot with ground fixing - stem type A (with hexagonal base) and ball 15 - with SBS non-slip base

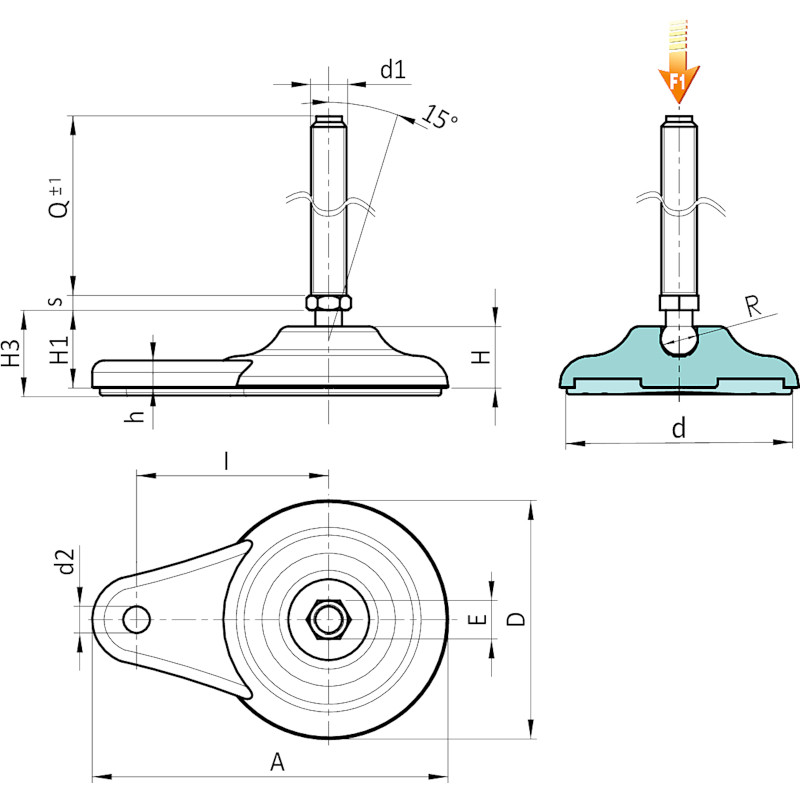

Codice Art. D H I H1 H3 h A E s d2 d R d16g Q F1 (kN) 3D
- P703080.TM12X5001 80 20 65 26 29 9 120 16 6.5 9 70 15 M12 50 143 13
- P703080.TM12X7001 80 20 65 26 29 9 120 16 6.5 9 70 15 M12 70 156 13
- P703080.TM12X9001 80 20 65 26 29 9 120 16 6.5 9 70 15 M12 90 171 13
P703080.0006 P703080.TM12X11001 80 20 65 26 29 9 120 16 6.5 9 70 15 M12 110 187 13
- P703080.TM14X5001 80 20 65 26 29 9 120 16 6.5 9 70 15 M14 50 155 13
- P703080.TM14X7001 80 20 65 26 29 9 120 16 6.5 9 70 15 M14 70 185 13
- P703080.TM14X9001 80 20 65 26 29 9 120 16 6.5 9 70 15 M14 90 196 13
P703080.0013 P703080.TM14X11001 80 20 65 26 29 9 120 16 6.5 9 70 15 M14 110 213 13
P703080.0016 P703080.TM14X15001 80 20 65 26 29 9 120 16 6.5 9 70 15 M14 150 230 13
- P703080.TM16X5001 80 20 65 26 29 9 120 16 6.5 9 70 15 M16 50 171 13
P703080.0032 P703080.TM16X7001 80 20 65 26 29 9 120 16 6.5 9 70 15 M16 70 197 13
- P703080.TM16X9001 80 20 65 26 29 9 120 16 6.5 9 70 15 M16 90 223 13
P703080.0022 P703080.TM16X11001 80 20 65 26 29 9 120 16 6.5 9 70 15 M16 110 248 13
P703080.0024 P703080.TM16X13001 80 20 65 26 29 9 120 16 6.5 9 70 15 M16 130 274 13
P703080.0026 P703080.TM16X15001 80 20 65 26 29 9 120 16 6.5 9 70 15 M16 150 299 13
P703080.0028 P703080.TM16X17001 80 20 65 26 29 9 120 16 6.5 9 70 15 M16 170 327 13
P703080.0030 P703080.TM16X19001 80 20 65 26 29 9 120 16 6.5 9 70 15 M16 190 350 13

Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.

Version P703CIN: Teardrop mounting foot with ground fixing - stem type A - stainless steel - (with hexagonal base) and ball 15 - with SBS non-slip base
Codice Art. D H I H1 H3 h A E s d2 d R d16g Q F1 (kN) 3D
- P703080.TM12X7001CIN 80 20 65 26 29 9 120 16 6.5 9 70 15 M12 70 156 13
- P703080.TM12X9001CIN 80 20 65 26 29 9 120 16 6.5 9 70 15 M12 90 171 13
P703080.0007 P703080.TM12X11001CIN 80 20 65 26 29 9 120 16 6.5 9 70 15 M12 110 187 13
- P703080.TM14X7001CIN 80 20 65 26 29 9 120 16 6.5 9 70 15 M14 70 185 13
P703080.0014 P703080.TM14X11001CIN 80 20 65 26 29 9 120 16 6.5 9 70 15 M14 110 213 13
P703080.0015 P703080.TM14X13001CIN 80 20 65 26 29 9 120 16 6.5 9 70 15 M14 130 230 13
- P703080.TM16X5001CIN 80 20 65 26 29 9 120 16 6.5 9 70 15 M16 50 171 13
- P703080.TM16X7001CIN 80 20 65 26 29 9 120 16 6.5 9 70 15 M16 70 197 13
- P703080.TM16X9001CIN 80 20 65 26 29 9 120 16 6.5 9 70 15 M16 90 223 13
P703080.0023 P703080.TM16X11001CIN 80 20 65 26 29 9 120 16 6.5 9 70 15 M16 110 248 13
P703080.0025 P703080.TM16X13001CIN 80 20 65 26 29 9 120 16 6.5 9 70 15 M16 130 274 13
P703080.0027 P703080.TM16X15001CIN 80 20 65 26 29 9 120 16 6.5 9 70 15 M16 150 299 13
P703080.0029 P703080.TM16X17001CIN 80 20 65 26 29 9 120 16 6.5 9 70 15 M16 170 327 13
P703080.0031 P703080.TM16X19001CIN 80 20 65 26 29 9 120 16 6.5 9 70 15 M16 190 350 13

Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.
