P701

Plastic feet with lateral fixing-with fixing-ball joint stud +anti-slip pad

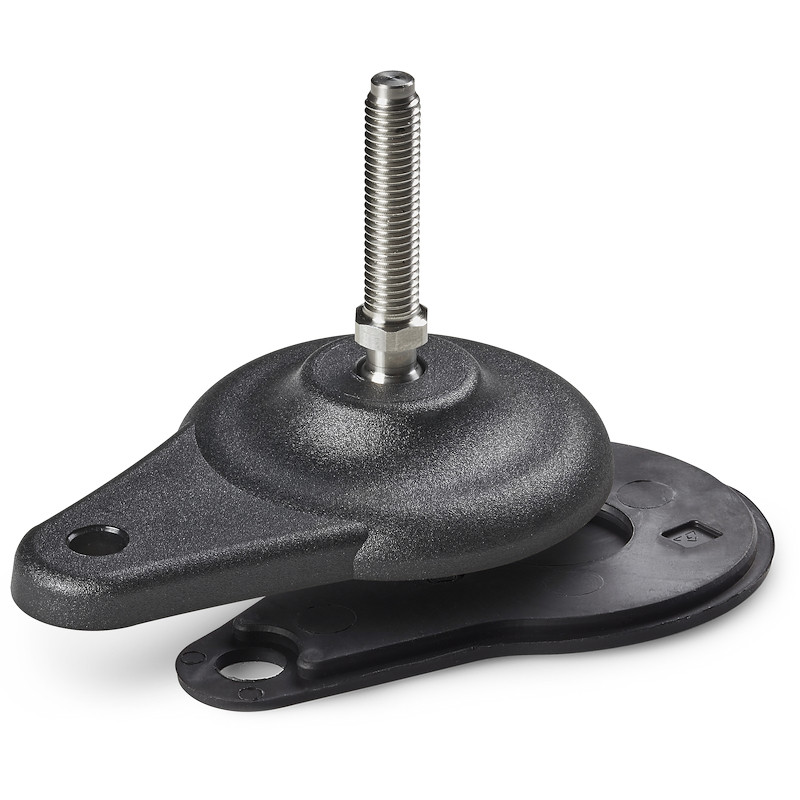

TEARDROP MOUNTING FOOT WITH GROUND FIXING AND STEEL ARTICULATED STEM TYPE A - BALL 12.4 AND NON-SLIP BASE

Ver. 16V01-0124

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Inserts:
    P701:
    Galvanised steel threaded and articulated stem (ball 12.5) with hexagonal base (thread tolerance 6g).
    P701CIN:
    Stainless steel threaded and articulated stem (ball 12.5) with hexagonal base (Aisi 303) (thread tolerance 6g).

    Non-slip base:
    Non-slip base in thermoplastic rubber SBS 75 Shore, black RAL 9011. Resistant to oils and greases. Push-fit assembly.

    Ground fixing:
    Through hole obtained by moulding the plastic.

    Special requests:
    Upon request and for special quantities inserts can be supplied with customised lengths.
    Upon request and for special quantities the foot can be supplied in Orange (RAL 2004).

Alternative products
Version P701: Teardrop mounting foot with ground fixing - stem type A (with hexagonal base) and ball 12.5 - with SBS non-slip base

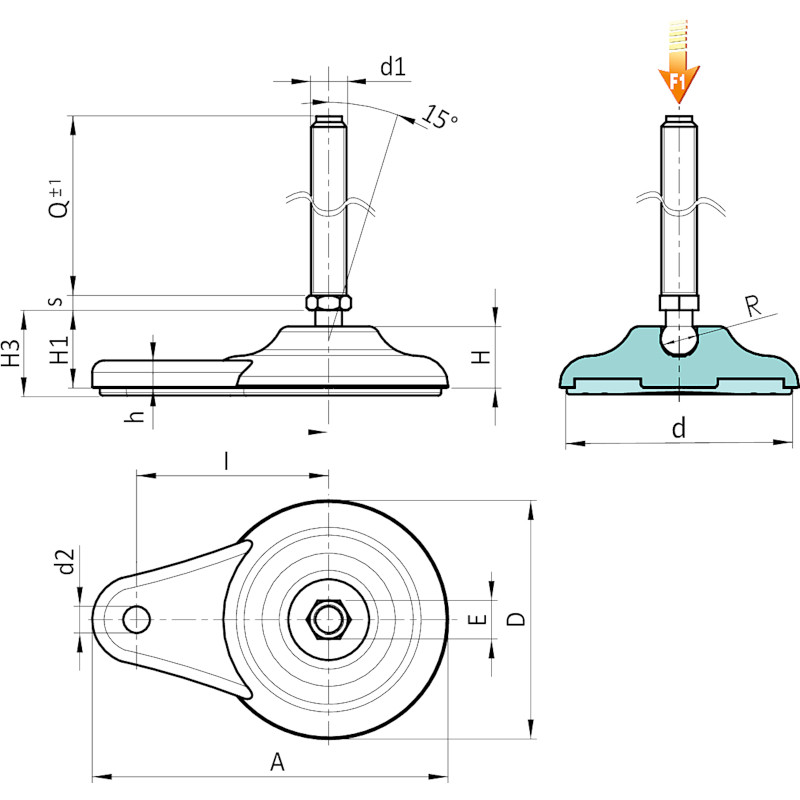

Codice Art. D H I H1 H3 h A E s d2 d R d16g Q F1 (kN) 3D
- P701080.TM08X4501 80 20 65 26 29 9 120 13 5 9 70 12.5 M8 45 72 10
- P701080.TM08X7001 80 20 65 26 29 9 120 13 5 9 70 12.5 M8 70 79 10
- P701080.TM10X4501 80 20 65 26 29 9 120 13 5 9 70 12.5 M10 45 97 10
- P701080.TM10X7001 80 20 65 26 29 9 120 13 5 9 70 12.5 M10 70 109 10
P701080.0005 P701080.TM10X10001 80 20 65 26 29 9 120 13 5 9 70 12.5 M10 100 146 10
- P701080.TM12X4501 80 20 65 26 29 9 120 13 5 9 70 12.5 M12 45 107 10
- P701080.TM12X7001 80 20 65 26 29 9 120 13 5 9 70 12.5 M12 70 124 10
P701080.0012 P701080.TM12X10001 80 20 65 26 29 9 120 13 5 9 70 12.5 M12 100 168 10

Warning: The F1 load limit expressed is less than the breaking load of 30% and is intended as static.
Threaded stud lengths by request, with 100 pieces minimum.

Version P701CIN: Teardrop mounting foot with ground fixing - stem type A - stainless steel - (with hexagonal base) and ball 12.5 - with SBS non-slip base
Codice Art. D H I H1 H3 h A E s d2 d R d16g Q F1 (kN) 3D
- P701080.TM08X4501CIN 80 20 65 26 29 9 120 13 5 9 70 12.5 M8 45 72 10
- P701080.TM08X7001CIN 80 20 65 26 29 9 120 13 5 9 70 12.5 M8 70 79 10
- P701080.TM10X4501CIN 80 20 65 26 29 9 120 13 5 9 70 12.5 M10 45 97 10
- P701080.TM10X7001CIN 80 20 65 26 29 9 120 13 5 9 70 12.5 M10 70 109 10
- P701080.TM12X4501CIN 80 20 65 26 29 9 120 13 5 9 70 12.5 M12 45 107 10
- P701080.TM12X7001CIN 80 20 65 26 29 9 120 13 5 9 70 12.5 M12 70 124 10
P701080.0013 P701080.TM12X10001CIN 80 20 65 26 29 9 120 13 5 9 70 12.5 M12 100 168 10

Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.
