DBASE

Two spoke handwheels

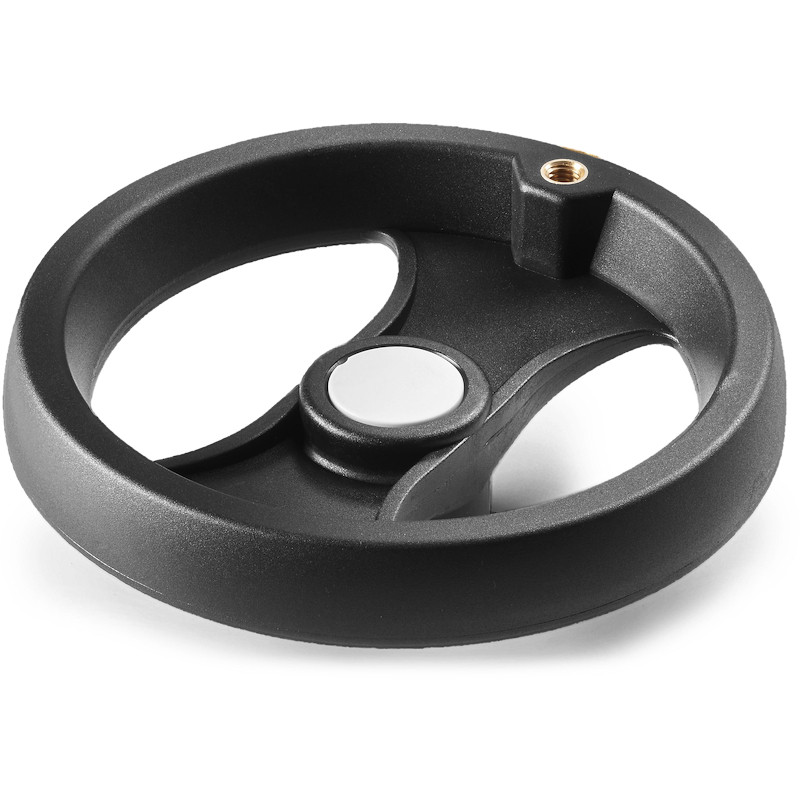

TWO-SPOKE CONTROL HANDWHEEL BASE WITH PROVISION FOR HANDLE

Ver. 04V01-0124

Reinforced and stabilized polyamide. Resistant to oils and greases.

Satin.

Alternative products

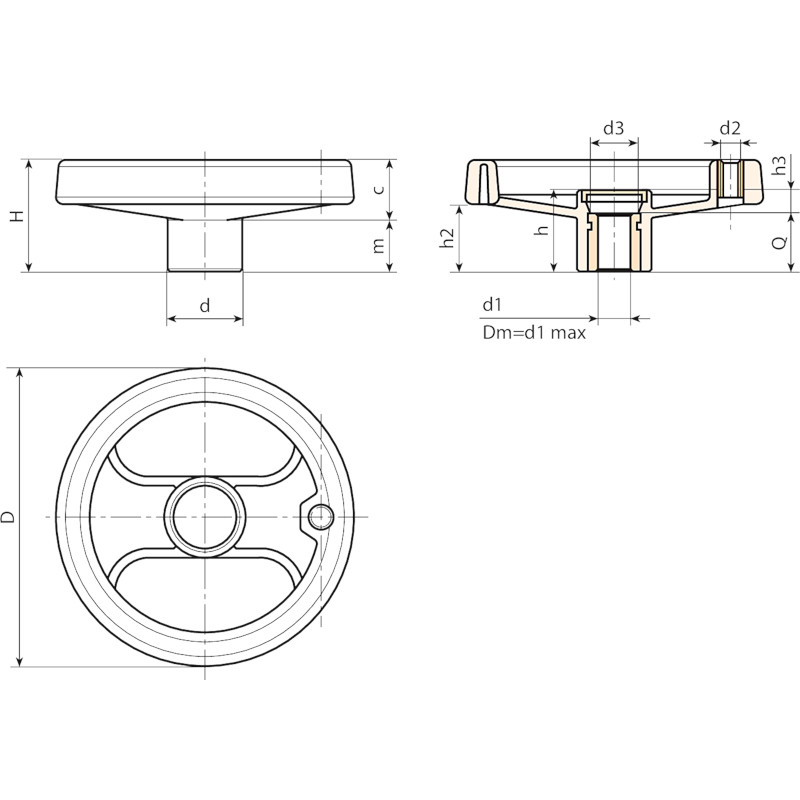

Codice Art. D H h d m c h2 h3 d3 Dm d26H d1H10 Q
D080.TP0501PZ1 D080.TP0501PZ1 80 34 26 24,5 15,5 18,5 20 6 16,5 12 M6 5 20 90
D100.TP0501PZ1 D100.TP0501PZ1 99 43 33 28 19,5 23,5 27 9 17 16 M6 5 24 150
D130.TP0501PZ1 D130.TP0501PZ1 129 50 35.5 32 20 30 30 11,5 25,5 18 M8 5 24 230
D160.TD0801PZ1 D160.TD0801PZ1 160 57,5 41 40 20 37.5 34 9 26 22 M8 8 32 375
D200.TD0801PZ1 D200.TD0801PZ1 198 61 39,5 51 17 44 32 7,5 27 22 M8 8 32 615
D250.TD0801PZ1 D250.TD0801PZ1 252 70 48 56 23 47 38,5 12 31,5 28 M10 8 36 920
D350.TD0801PZ1 D350.TD0801PZ1 349 80 50 67 21,5 58,5 43,5 18 35 30 M10 (*) 8 32 1510

Attention: For a minimum of 50 pieces the diameter d1 can be customised (hole tolerance H10 galvanised and H7 black-oxide treated).
