04

D207

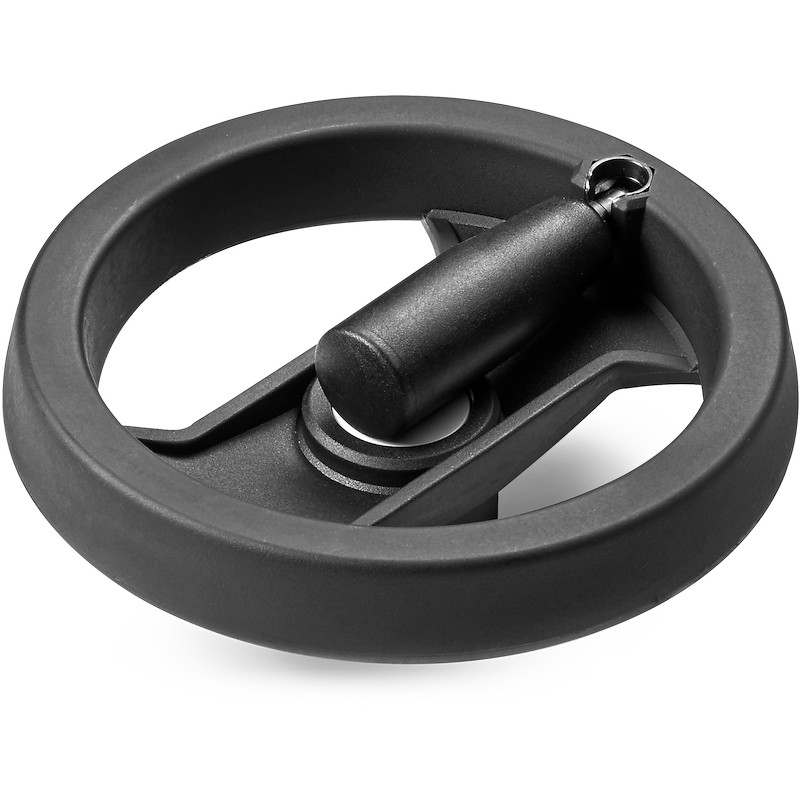

Two spoke handwheels

TWO-SPOKE CONTROL HANDWHEEL WITH REVOLVING FOLDAWAY HANDLE

Ver. 04V01-0124

Reinforced and stabilized polyamide. Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced and stabilized polyamide. Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Central cap:
    Grey polyamide (RAL 7035). 13).

    Alternative cap colours:
    Orange (RAL 2004 code 02).
    Blue (RAL 5015 code 07).
    Yellow (RAL 1021 code 10).
    Red (RAL 3000 code 16).
    Green (RAL 6024 code 17).
    Black (RAL 9011 code 01).

    Main insert:
    Galvanised steel insert with smooth through bore (tolerance H10).

    Lateral handle:
    Flush, foldaway revolving handle, with hexagonal connection. Reinforced polyamide handle.
    Black-oxide treated internal mechanism. Fixed with black-oxide treated hexagon socket button head screw ISO 7838.

    Hub:
    Solid Hub.

    Fixing method:
    For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue [pageFAM_NT10-Codice.

    Special requests:
    Upon request and for a minimum of 50 pieces inserts can be supplied with hole d1 with tolerance H7 and black oxide treated finish. Add letters ZB to the standard code. Example: D207130.TD1001PZB.
    Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
    Upon request and for special quantities inserts can be supplied in different materials/with different coatings.
    Upon request and for special quantities spoke handwheels, handles and caps are available in the colours indicated in the chart (reduced range) [pageTitoloTabellaColori.

  • Material sheets

Alternative products

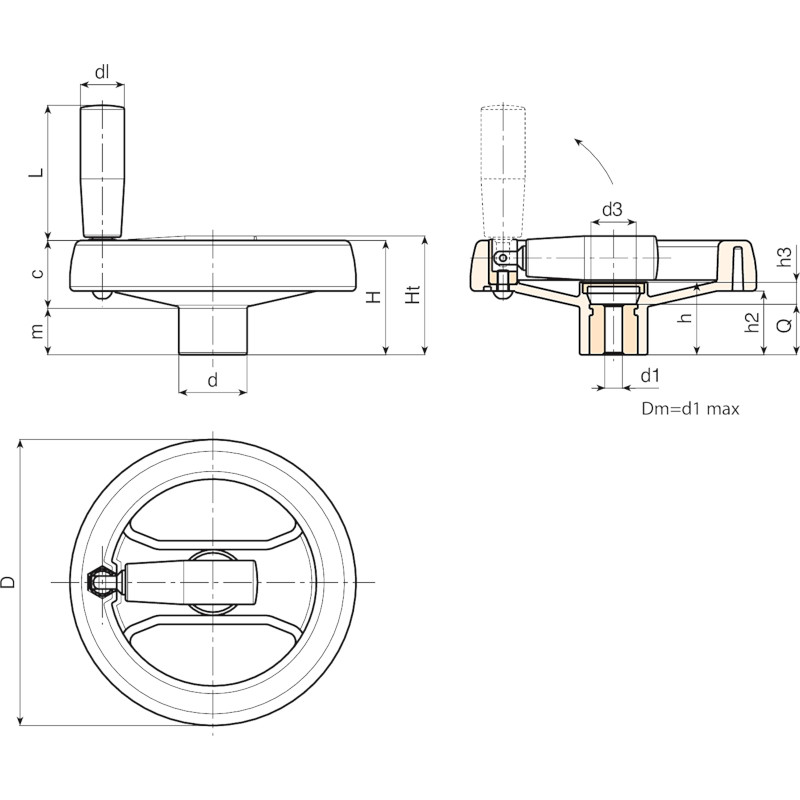

Codice Art. D H Ht h d m c h2 h3 d3 dl L Dm d1H10 Q 3D
D207130.0001 D207130.TD0501P 129 53 55 32 32 22 31 30 12 26 20 58 18 5 20 300
D207130.0004 D207130.TD0801P 129 53 55 32 32 22 31 30 12 26 20 58 18 8 20 297
D207130.0016 D207130.TD1201P 129 53 55 32 32 22 31 30 12 26 20 58 18 12 20 294
D207160.0024 D207160.TD0501P 159 55 59 33.5 40 20.5 34.5 31 9.5 26 25 71 22 5 24 450
D207160.0001 D207160.TD0801P 159 55 59 33.5 40 20.5 34.5 31 9.5 26 25 71 22 8 24 447
D207160.0006 D207160.TD1201P 159 55 59 33.5 40 20.5 34.5 31 9.5 26 25 71 22 12 24 443
D207160.0010 D207160.TD1401P 159 55 59 33.5 40 20.5 34.5 31 9.5 26 25 71 22 14 24 440
D207160.0014 D207160.TD1601P 159 55 59 33.5 40 20.5 34.5 31 9.5 26 25 71 22 16 24 436
D207350.0001 D207350.TD0801P 346 80 86 49.5 67.5 24 56 43.5 17.5 35 40 64 30 8 32 1650

Attention: For a minimum of 50 pieces the diameter d1 can be customised (hole tolerance H10 galvanised and H7 black-oxide treated).
Dm = Maximum obtainable diameter for subsequent machining (widening).
