D210

Two spoke handwheels

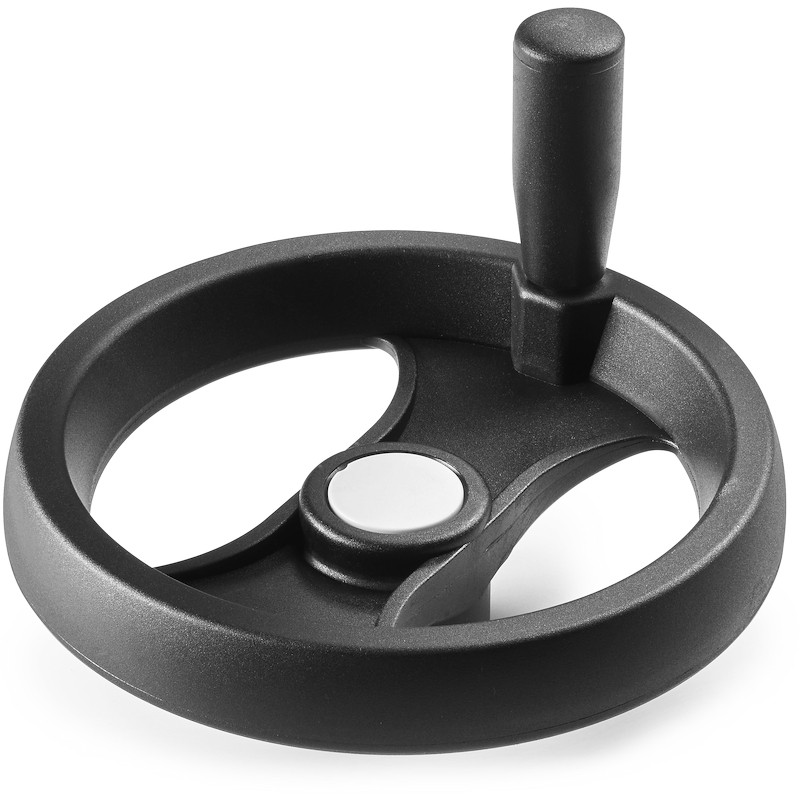

TWO-SPOKE CONTROL HANDWHEEL WITH REVOLVING HANDLE M129

Ver. 04V01-0124

Reinforced and stabilized polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced and stabilized polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Central cap:
    Grey polyamide (RAL 7035). 13).

    Alternative cap colours:
    Orange (RAL 2004 code 02).
    Blue (RAL 5015 code 07).
    Yellow (RAL 1021 code 10).
    Red (RAL 3000 code 16).
    Green (RAL 6024 code 17).
    Black (RAL 9011 code 01).

    Main insert:
    Galvanised steel insert with smooth through bore (tolerance H10).

    Lateral insert:
    Brass insert with threaded through hole.

    Lateral handle:
    Revolving handle art. M129 [pageFAM_M129-Codice.

    Hub:
    Solid Hub.
    (*) Lightweight hub.

    Fixing method:
    For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue [pageFAM_NT10-Codice.

    Special requests:
    On request and with a minimum of 50 pieces, the inserts can be supplied with the hole d1 with H7 tolerance and black-oxide finish. Add the letters ZB to the standard code. Example: D210130.TD1001PZB.
    Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
    Upon request and for special quantities inserts can be supplied in different materials/with different coatings.
    Upon request and for special quantities spoke handwheels, handles and caps are available in the colours indicated in the chart (reduced range) [pageTitoloTabellaColori.

  • Material sheets

Alternative products

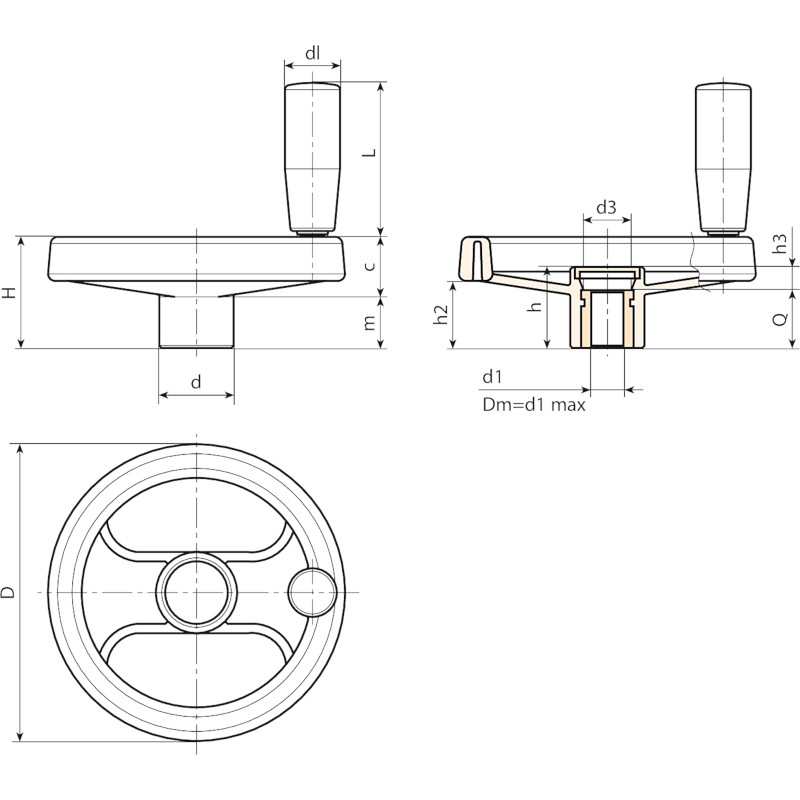

Codice Art. D H h d m c h2 h3 d3 dl L Dm d1H10 Q
D210080.0002 D210080.TP0501P 80 34 26 24,5 15,5 18,5 20 6 16,5 20 52 12 5 20 130
D210100.0002 D210100.TP0501P 99 43 33 28 19,5 23,5 27 9 17 20 52 16 5 24 185
D210130.0001 D210130.TD0501P 129 50 35,5 32 20 30 30 11,5 25,5 23,5 62,5 18 5 24 280
D210160.0001 D210160.TD0801P 160 57,5 41 40 20 37,5 34 9 26 25 72 22 8 32 455
D210200.0001 D210200.TD0801P 198 61 39,5 51 17 44 32 7,5 27 25 72 22 8 32 700
D210250.0001 D210250.TD0801P 252 70 48 56 23 47 38.5 12 31,5 26 81,5 28 8 36 1050
D210350.0001 D210350.TD0801P 349 80 50 67 21,5 58,5 43 18 35 28 89,5 30 (*) 8 32 1600

Attention: For a minimum of 50 pieces the diameter d1 can be customised (hole tolerance H10 galvanised and H7 black-oxide treated).
Dm = Maximum obtainable diameter for subsequent machining (widening).
