P700ESD

Plastic feet-ball joint stud

TEARDROP MOUNTING FOOT WITH GROUND FIXING - IN ESD MATERIAL - WITH STEEL ARTICULATED STEM TYPE A - BALL 12.4

Ver. 16V01-0124

Reinforced polyamide, with conductive fillers (ESD-C).
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide, with conductive fillers (ESD-C).
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Inserts:
    P700ESD:
    Galvanised steel threaded and articulated stem (ball 12.4) with hexagonal base (thread tolerance 6g).
    P700CINESD:
    Stainless steel threaded and articulated stem (ball 12.4) with hexagonal base (Aisi 303) (thread tolerance 6g).

    Special requests:
    Upon request and for special quantities inserts can be supplied with customised lengths.

  • Description

    Notes: This item is made from ESD-C (Electro Static Discharge – Conductive) material with fillers in compliance with standards EN 100015/1 and IEC 61340-5-1. The product is conductive and prevents the formation of electrostatic discharges by facilitating its grounding. A yellow pad-printed symbol (ESD-C) enables correct identification of the product. Product suitable for the production of electronic material and for use in explosive atmospheres.

Alternative products

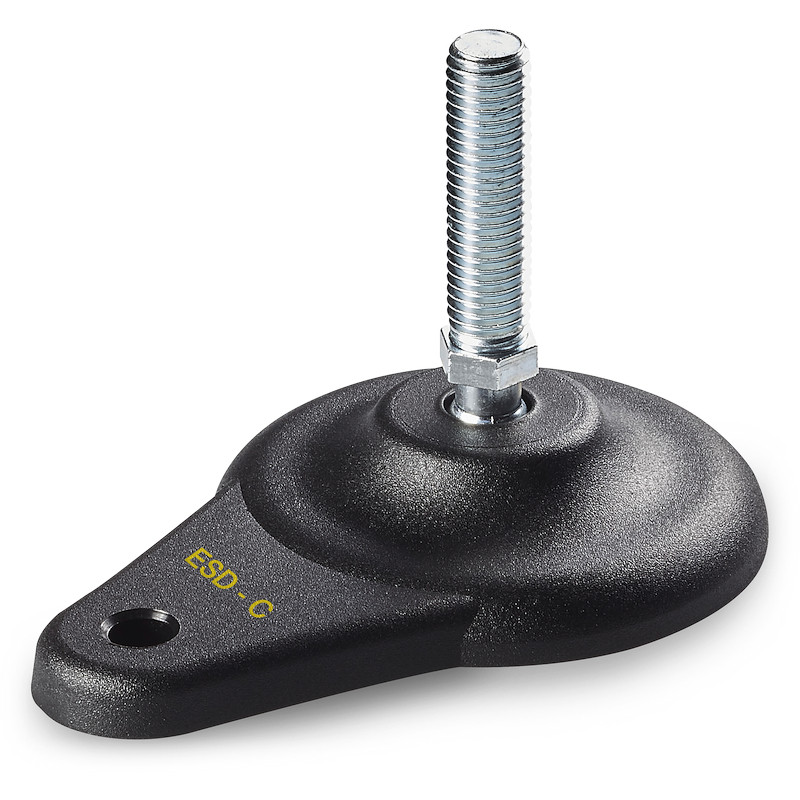

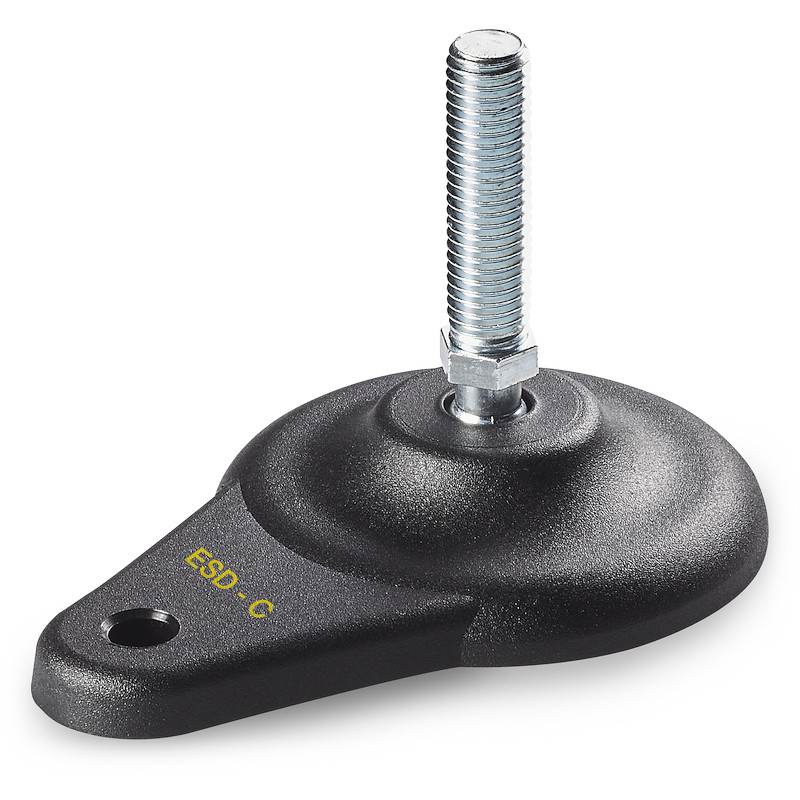

Version P700ESD: Mounting foot with stem type A (with hexagonal base) and ball 12.4

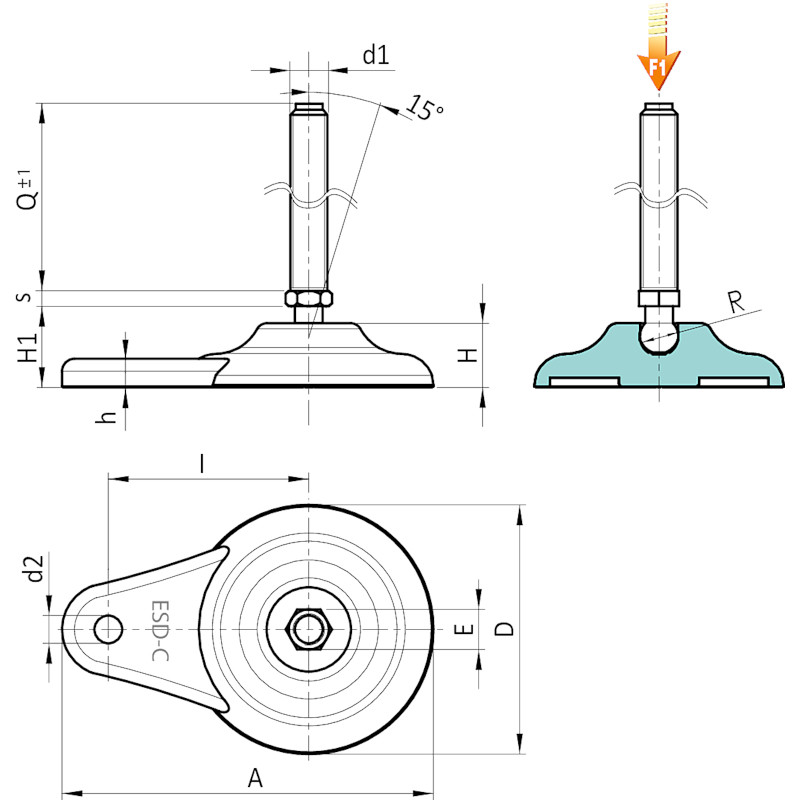

Codice Art. D H I H1 h A E s d2 R d16g Q F1 (kN)
- P700080.TM08X4501ESD 80 20 65 26 9 120 13 5 9 12.5 M8 45 58 10
- P700080.TM08X7001ESD 80 20 65 26 9 120 13 5 9 12.5 M8 70 65 10
- P700080.TM10X4501ESD 80 20 65 26 9 120 13 5 9 12.5 M10 45 83 10
- P700080.TM10X7001ESD 80 20 65 26 9 120 13 5 9 12.5 M10 70 95 10
- P700080.TM10X10001ESD 80 20 65 26 9 120 13 5 9 12.5 M10 100 132 10
- P700080.TM12X4501ESD 80 20 65 26 9 120 13 5 9 12.5 M12 45 93 10
- P700080.TM12X7001ESD 80 20 65 26 9 120 13 5 9 12.5 M12 70 110 10
- P700080.TM12X10001ESD 80 20 65 26 9 120 13 5 9 12.5 M12 100 154 10

Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.

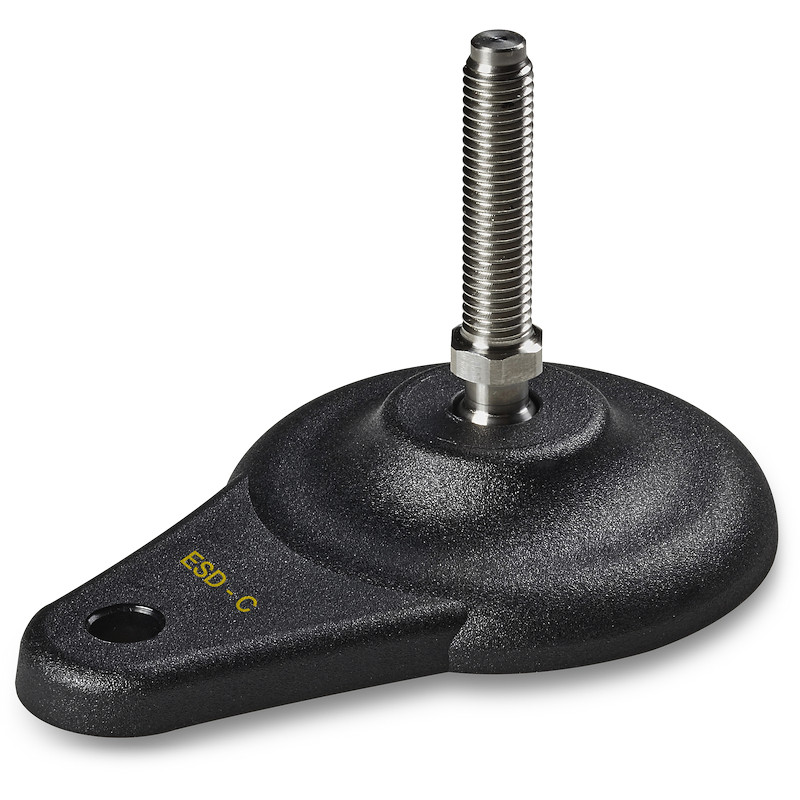

Version P700CINESD: Mounting foot with stem type A (with hexagonal base) and ball 12.4 - stainless steel
Codice Art. D H I H1 h A E s d2 R d16g Q F1 (kN)
- P700080.TM08X4501CINESD 80 20 65 26 9 120 13 5 9 12.5 M8 45 58 10
- P700080.TM08X7001CINESD 80 20 65 26 9 120 13 5 9 12.5 M8 70 65 10
- P700080.TM10X4501CINESD 80 20 65 26 9 120 13 5 9 12.5 M10 45 83 10
- P700080.TM10X7001CINESD 80 20 65 26 9 120 13 5 9 12.5 M10 70 95 10
- P700080.TM10X10001CINESD 80 20 65 26 9 120 13 5 9 12.5 M10 100 132 10
- P700080.TM12X4501CINESD 80 20 65 26 9 120 13 5 9 12.5 M12 45 93 10
- P700080.TM12X7001CINESD 80 20 65 26 9 120 13 5 9 12.5 M12 70 110 10
- P700080.TM12X10001CINESD 80 20 65 26 9 120 13 5 9 12.5 M12 100 154 10

Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.
